1994
>>
Prizm L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
S200-S299
>>
S204
S204

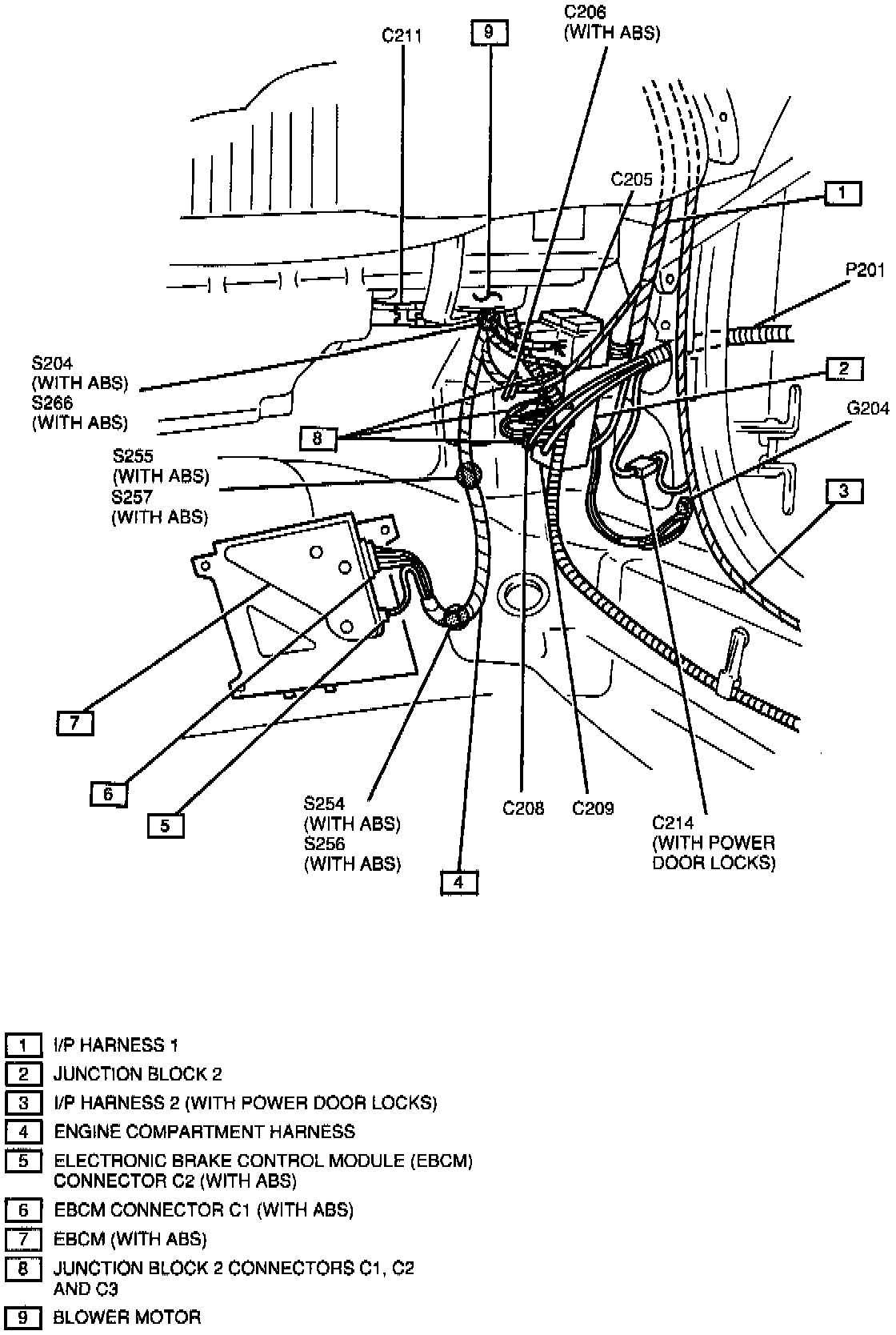

Figure A - RH Kick Panel Wiring:
