Cruise Control Unit Circuit

Fig. 6 Cruise Control Unit Voltage Test.:

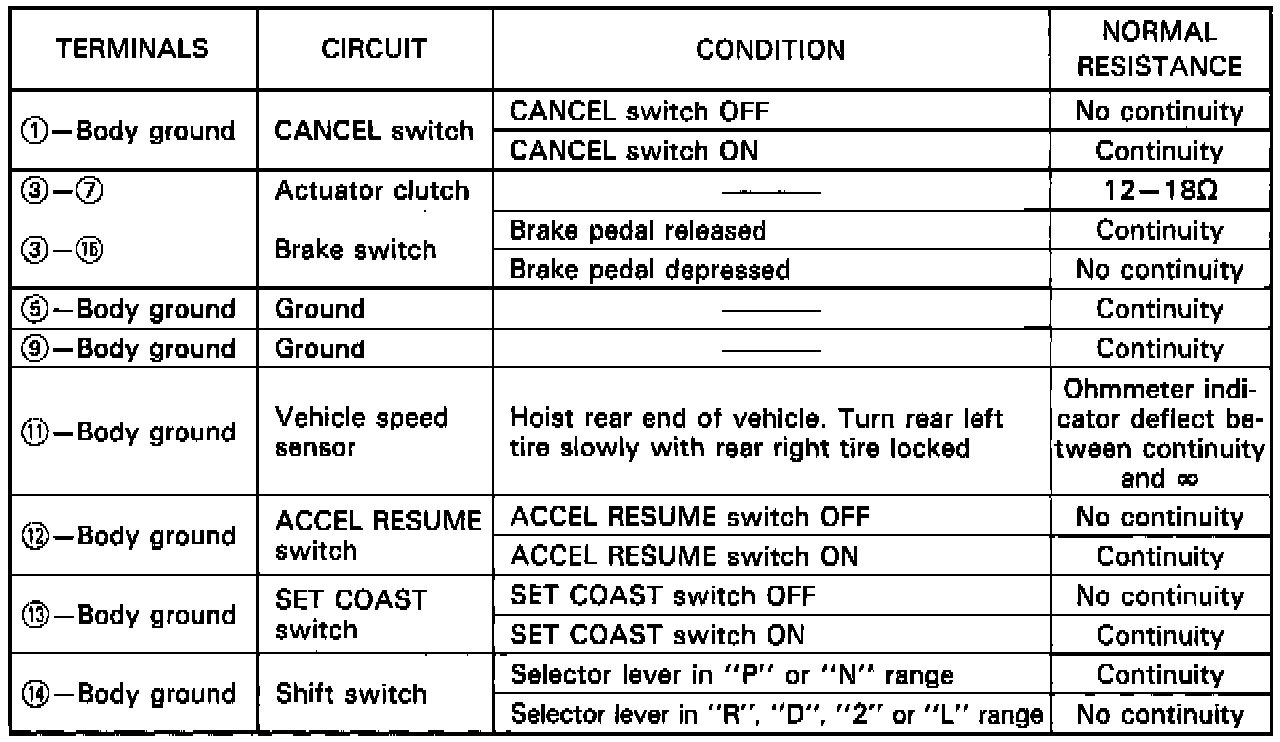

Fig. 7 Cruise Control Unit Resistance Test.:

1. Disconnect cruise control unit connector from control unit, then perform voltage and resistance tests as shown in Figs. 6 and 7.
2. If all system components and circuits are satisfactory, and cruise control system still fails to operate properly, replace control unit.
