California

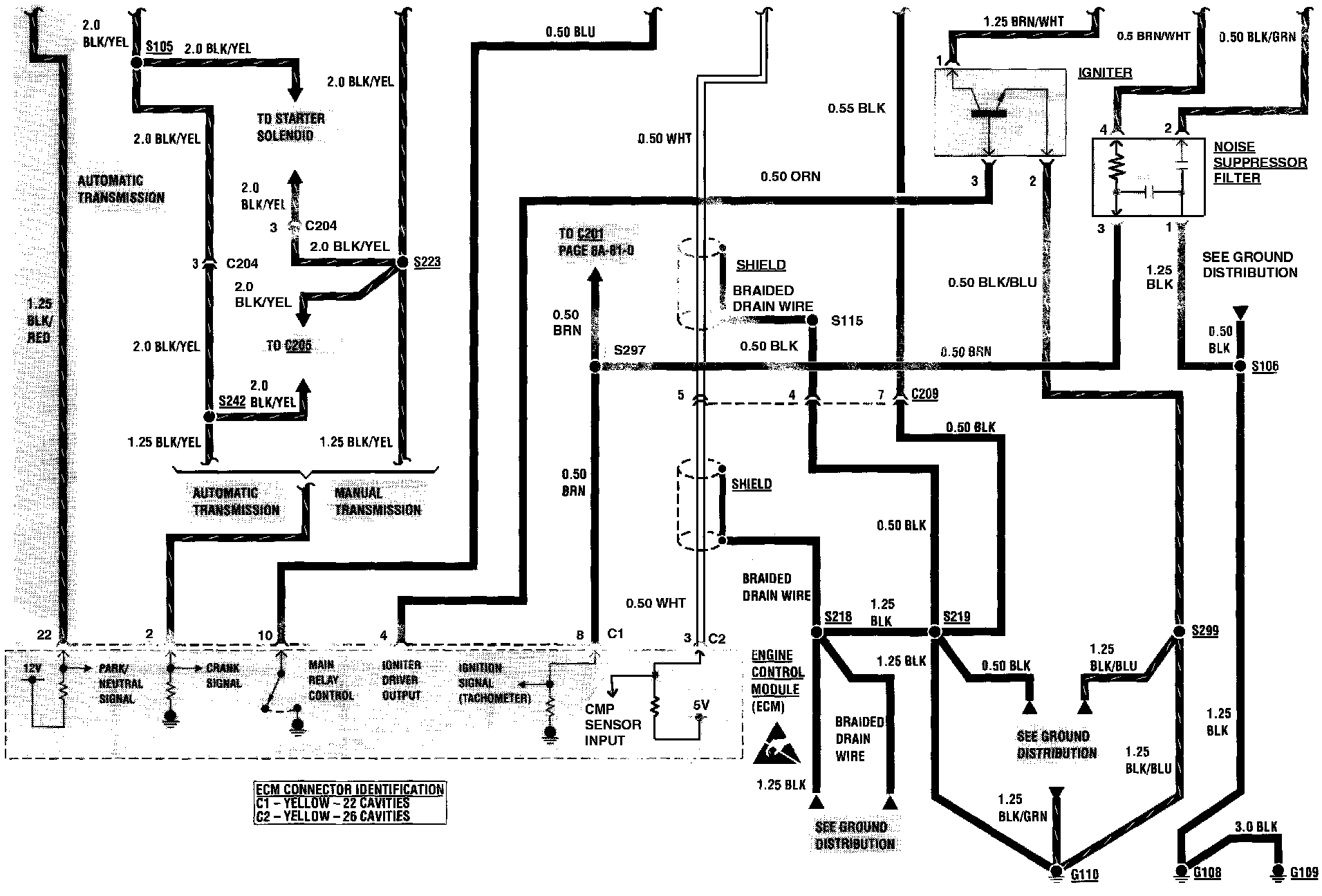

Ignition Controls, California Emissions:



Ignition Controls, California Emissions, Cont.:
