EGR Backpressure Transducer: Service and Repair
Description:

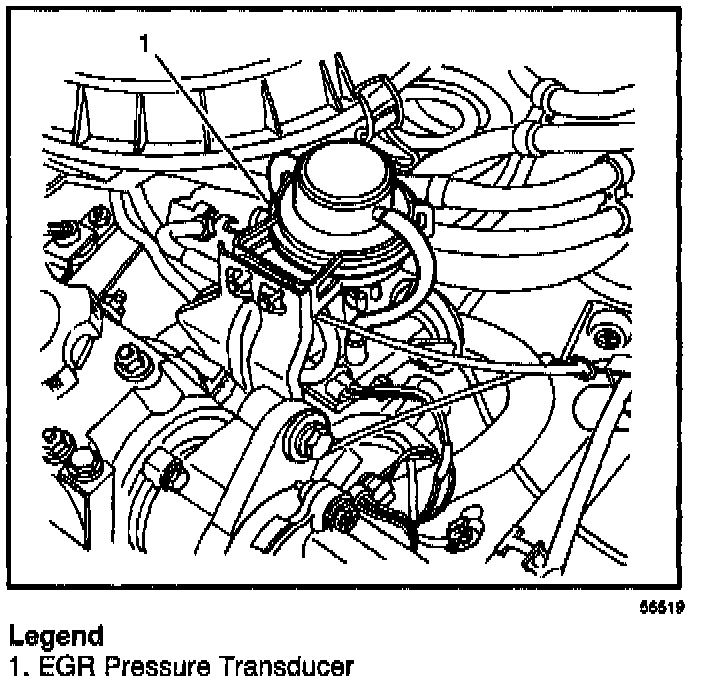

REMOVAL PROCEDURE 1.
Disconnect the three vacuum hoses from the
Exhaust Gas Recirculation (EGR) pressure transducer.
2.
Remove the
EGR pressure transducer from the retaining clips.
INSTALLATION PROCEDURE 1.
Install the
EGR pressure transducer to the retaining clips.
2.
Connect the three vacuum hoses to the
EGR pressure transducer.
