Ignition Cable: Service and Repair

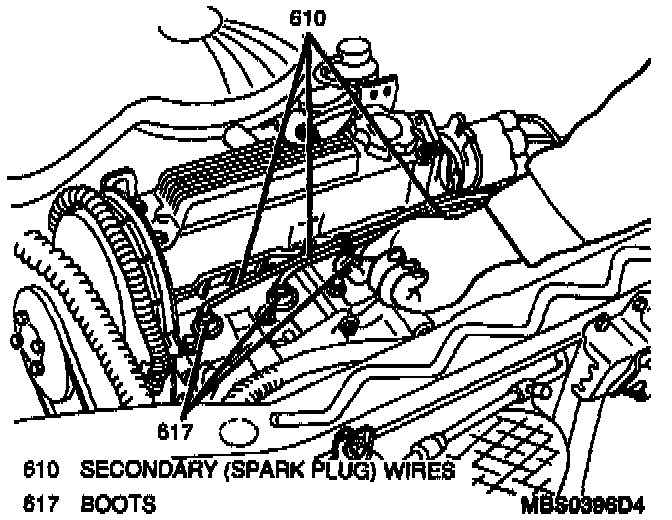

Removing Secondary Wires From Spark Plugs:

SECONDARY WIRING REPLACEMENT

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Secondary (coil) wire from ignition coil.
3. Secondary (spark plug) wire(s) from wire retainers.
4. Secondary (spark plug) wire(s) from the spark plugs.
5. Secondary (spark plug and coil) wire(s) from distributor cap.

IMPORTANT: Note wire placement to cap and routing to engine so as to maintain correct firing order and proper clearances to engine parts that could cause damage to wiring.

INSTALL OR CONNECT
1. Secondary (spark plug and coil) wire(s) to distributor cap.
2. Secondary (spark plug) wire(s) to spark plugs.

^ Reposition secondary (spark plug) wires and insert into secondary wire retainers.

3. Secondary (coil) wire to ignition coil.
4. Negative (-) battery cable. Tighten Negative (-) battery cable-to-negative (-) battery terminal retainer to 15 Nm (11 lb. ft.).
