Audible Warning Device Control Module: Service and Repair

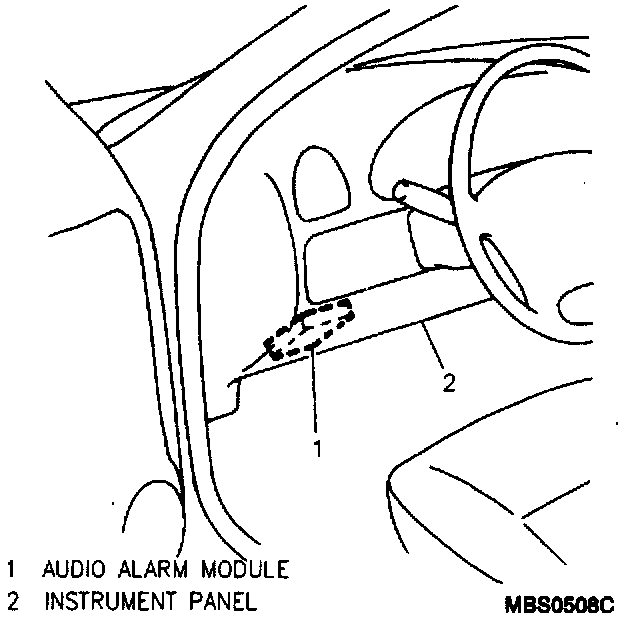

Audio Alarm Module Location:
Remove or Disconnect 1.
Negative (-) battery cable.
2.
Audio alarm module electrical connector.
3.
Slide audio alarm module off retaining bracket and remove from vehicle.
Install or Connect 1.
Slide audio alarm module onto retaining bracket.
2.
Audio alarm module electrical connector.
3.
Negative (-) battery cable.
