Hold-In Test

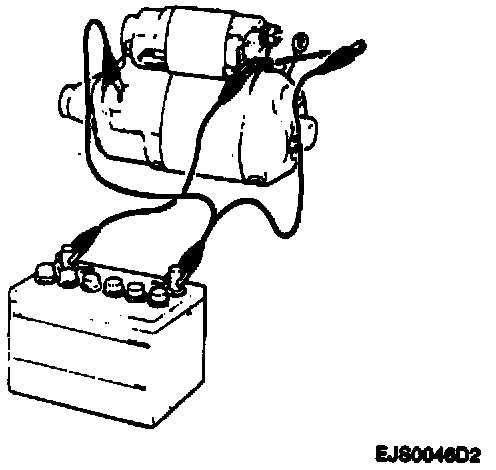

Hold-In Test:
REMOVE OR DISCONNECTRemoving Starter Motor Assembly:
^
Negative test lead from starter-to-solenoid wire solenoid terminal.
Inspect ^
Check that the pinion remains completely in the energized position.
^
If the pinion remains in the energized position, proceed to the Pinion Return Test.
^
If the pinion does not remain completely in the energized position, replace the
starter solenoid.
