Pull-In Test

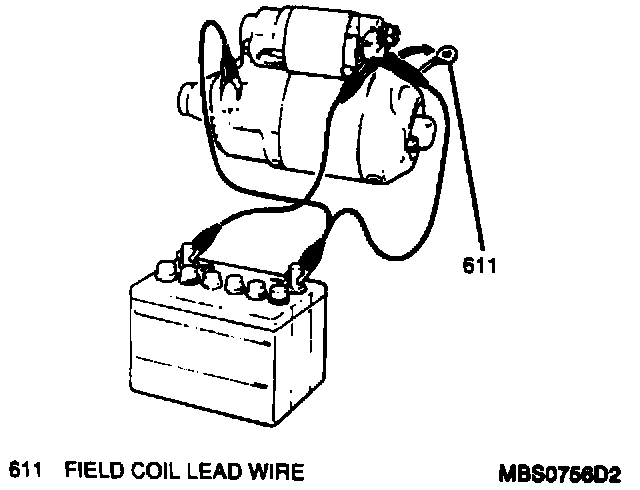

Pull-In Test:
REMOVE OR DISCONNECT ^
Starter-to-solenoid wire from solenoid terminal.

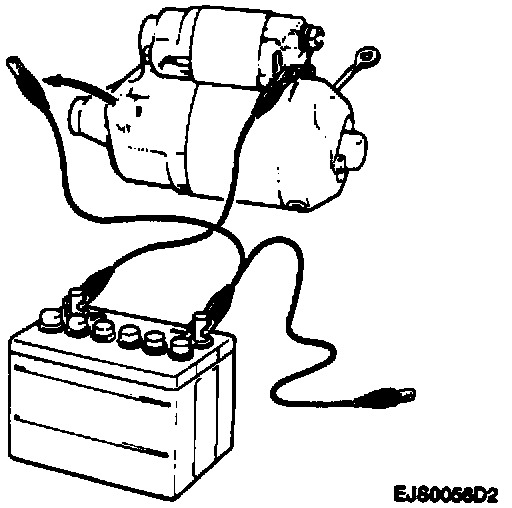

INSTALL OR CONNECTPinion Return Test:
^
Test leads from battery to starter assembly.
Inspect ^
Check that the pinion extends quickly and completely to the energized position.
^
If the pinion movement is satisfactory, proceed to Hold-In Test.
^
If pinion movement is not satisfactory, replace the
starter solenoid.
