Piston Pin: Service and Repair

REPLACEMENT

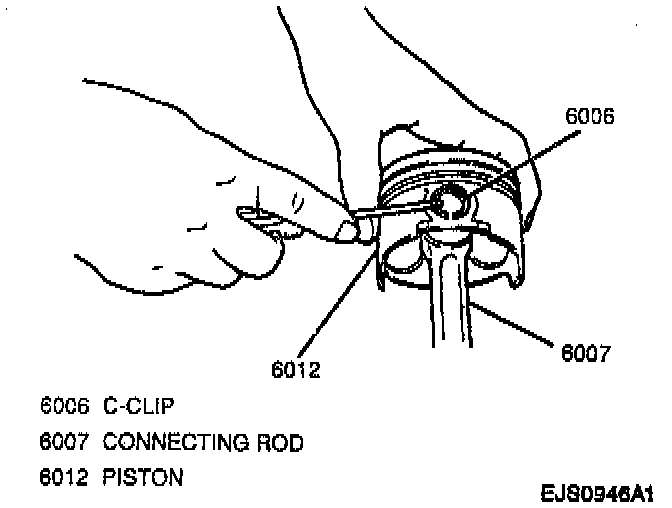

1. Two C-clips from piston pin ends.





2. Push piston pin out.
3. Clean carbon from ring grooves using a piston ring groove cleaner. Remove remainder of carbon from piston head using suitable tools.

INSTALLATION
^. Instal piston pin to piston assembly; secure with two C-clips.
