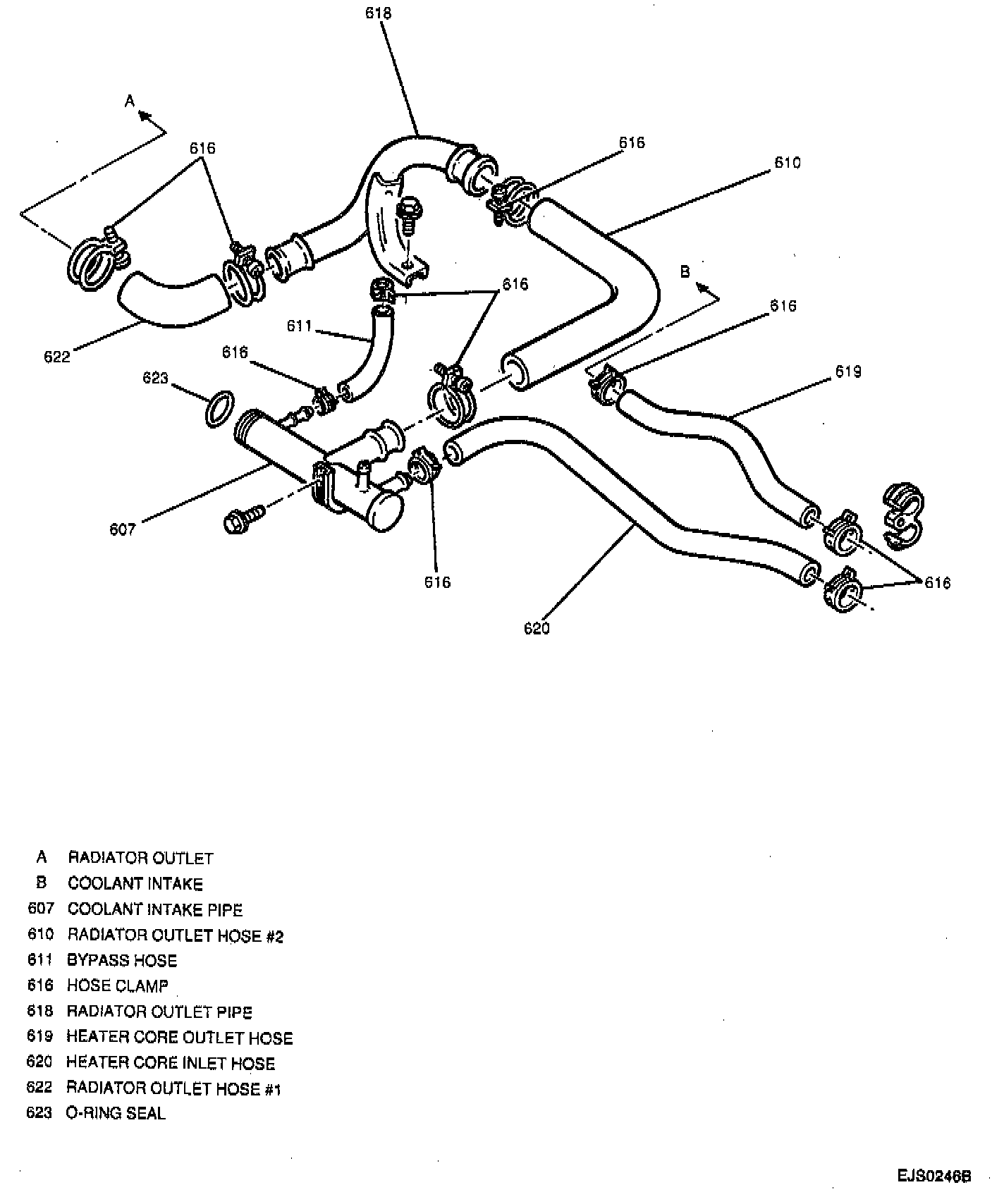

Heater Core Intlet Hose

REMOVAL
1. Radiator cap.
2. Start and run engine for 15 minutes.
3. Stop the engine and open the drain plug on the radiator to drain the coolant into a suitable container.
4. Loosen hose clamps at both ends of heater core inlet hose.
5. Heater core inlet hose from vehicle.

INSTALLATION
1. Position a new hose clamp on each end of heater core inlet hose before installation.
2. Heater core inlet hose to vehicle; secure with two heater core inlet hose clamps after positioning over heater core and coolant intake pipe flares.
3. Fill radiator with approved coolant.
4. Radiator cap to radiator.
