Power Door Lock Control Module: Service and Repair

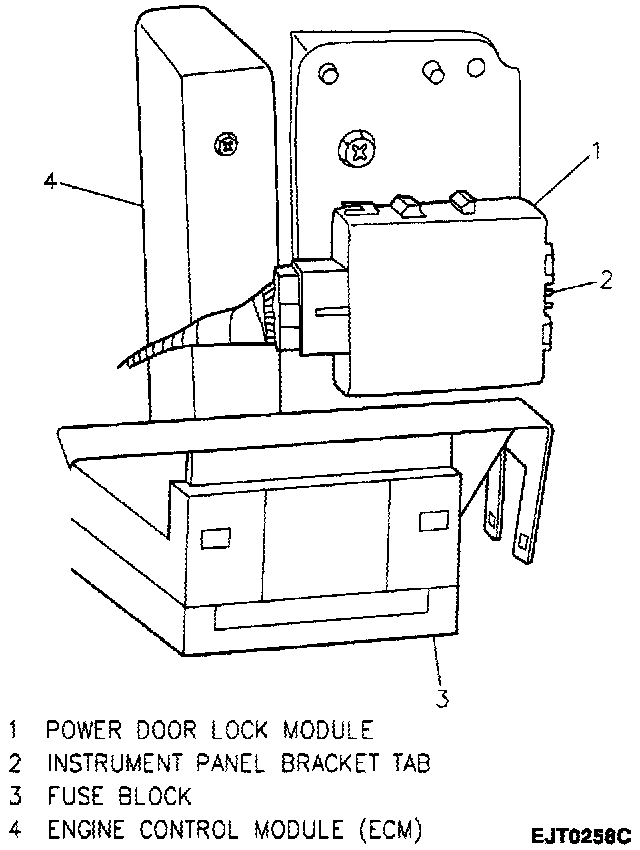

Power Door Lock Module Location:
Remove or Disconnect 1.
Negative (-) battery cable.
2.
Knee bolster.
3.
Power door lock module electrical connector.
4.
Power door lock module assembly from I/P bracket.
Install or Connect 1.
Power door lock module to I/P bracket.
2.
Power door lock module electrical connector.
3.
Knee bolster.
4.
Negative (-) battery cable.
