Cruise Control Switch: Service and Repair

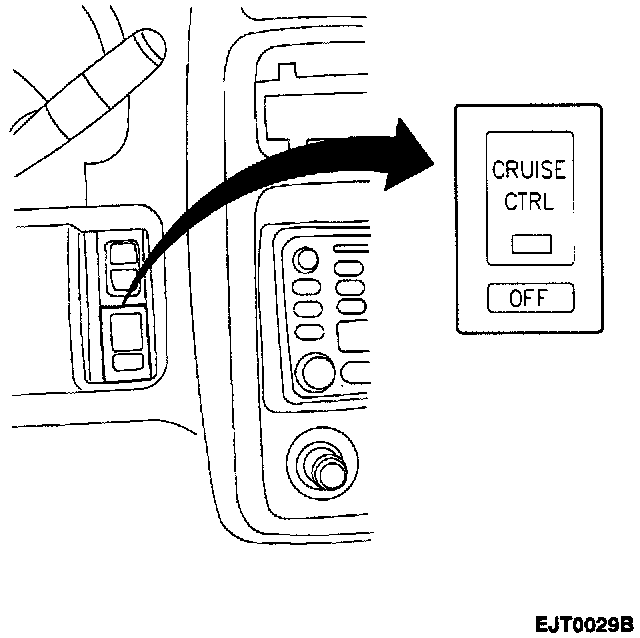

CRUISE CTRL/OFF Switch Location:





Remove or Disconnect
1. Negative (-) battery cable.
2. Knee bolster.
3. Clip on the bottom of CRUISE CTRL/OFF switch by pushing up with a pick from behind the instrument panel.
4. Slide out CRUISE CTRL/OFF switch from instrument panel.
5. Electrical connector from CRUISE CTRL/OFF switch.

Install or Connect
1. Electrical connector to CRUISE CTRL/OFF switch.
2. Slide CRUISE CTRL/OFF switch into place.
3. Knee bolster.
4. Negative (-) battery cable.
