Cruise Control: Service and Repair

REMOVE OR DISCONNECT
1. Negative (-) battery cable.

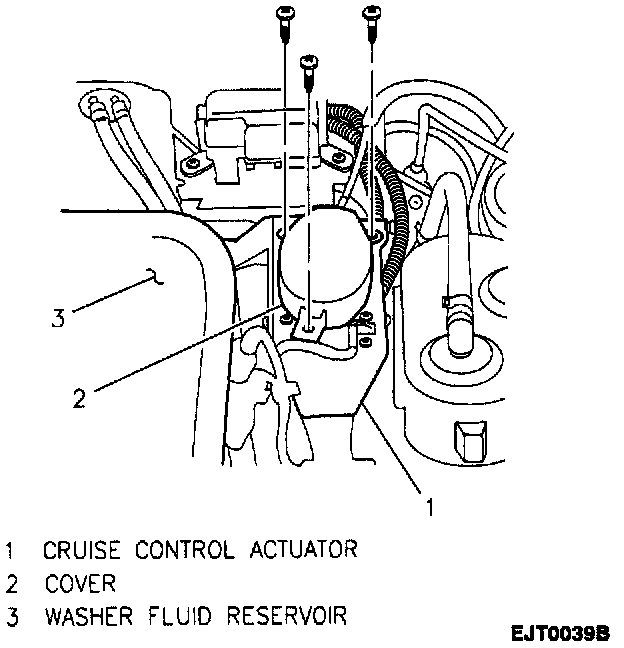

Cruise Control Actuator (Servo):




2. Three screws and cruise control actuator cover from cruise control actuator.

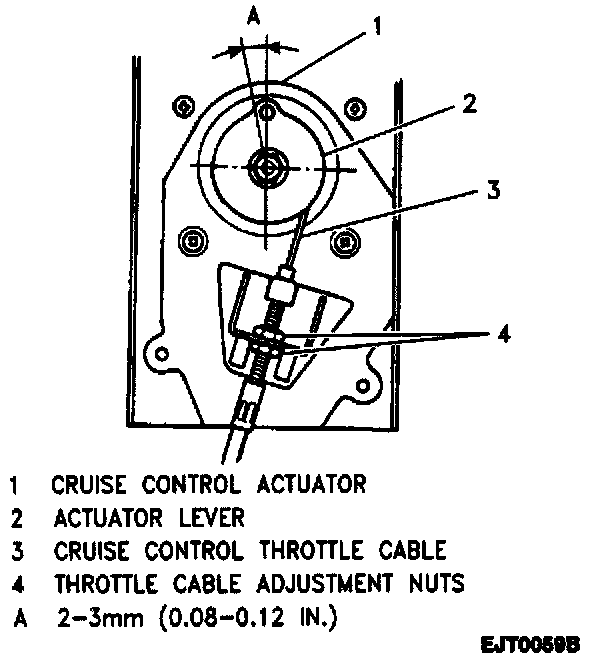

Cruise Control Actuator Internal View:




3. Loosen the cruise control cable locknut.

Cruise Control Actuator Internal View:




4. Cruise control cable from cruise control actuator lever.
5. Harness loop securing washer pump and cruise control electrical harness.
6. Cruise control actuator electrical connector.

Cruise Control Actuator (Servo):




7. Three bolts and cruise control actuator from vehicle.

INSTALL OR CONNECT
1. Cruise control actuator to vehicle; secure with three bolts.
Tighten
^ Cruise control actuator bolts to 10 N.m (89 lb. ft.).
2. Cruise control actuator electrical connector.
3. Harness loop securing washer pump and cruise control electrical harness.
4. Cruise control cable to cruise control actuator lever.

Cruise Control Actuator Internal View:

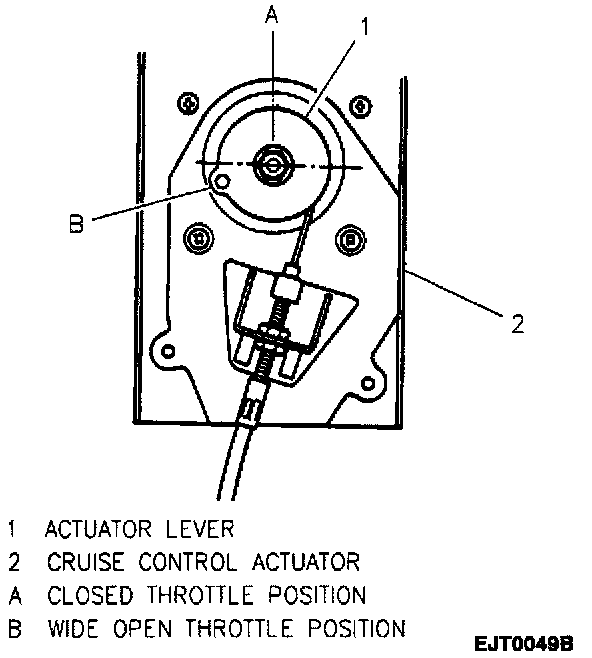

Cruise Control Actuator Positions:




Adjust
^ Cruise control cable play by adjusting the cruise control cable locknuts. Cruise control cable play: 2 to 3 mm (0.08 to 0.12 inch) at actuator closed throttle position.
Tighten
^ Cruise control cable locknuts to 5 N.m (44 lb. in.).
5. Cruise control actuator cover onto cruise control actuator; secure with three screws.
6. Negative (-) battery cable.
