Lower

Remove or Disconnect

1. Compressor.

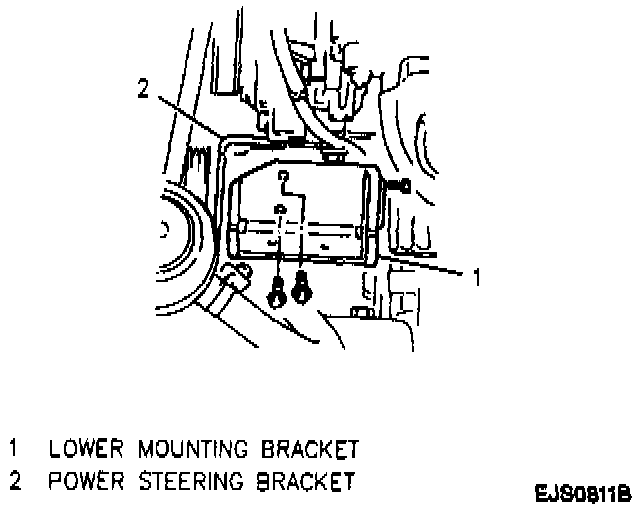

2. Three compressor lower mounting bracket bolts and bracket from vehicle.

Install or Connect

1. Compressor lower mounting bracket to vehicle; secure with three bolts.

Tighten

^ Models equipped with power steering:
- Compressor lower mounting bracket bolts to 18-25 N.m. (13-20 lb. ft.).

^ Models without power steering:
- Compressor lower mounting bracket bolt A to 18-25 N.m. (13-20 lb. ft.).
- Compressor lower mounting bracket bolts B to 40-60 N.m. (29-43 lb. ft.).

2. Compressor.
