Heater Control Assembly






Remove or Disconnect

1. Center trim bezel.

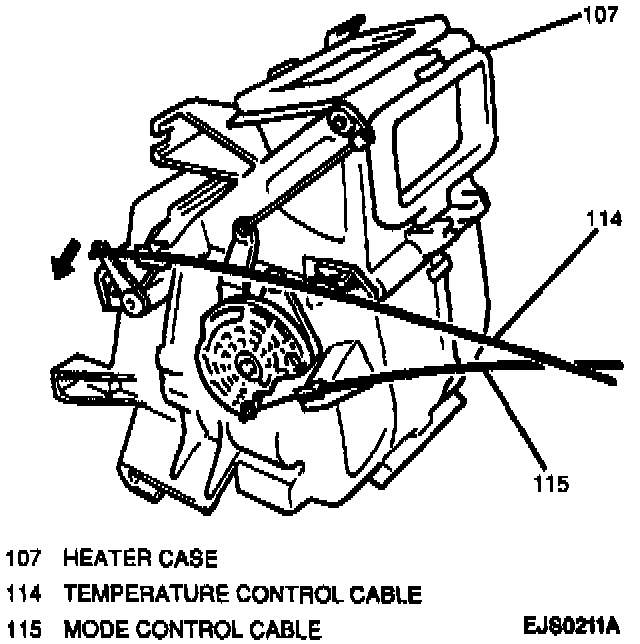

2. Temperature control cable at heater case.
3. Mode control cable at heater case.
4. Fresh/recirc control cable at blower case.
5. Blower switch electrical connector.
6. Heater control unit from I/P.
7. Blower switch from the heater control unit (if required).

Install or Connect

1. Blower switch to heater control unit (if required).
2. Heater control unit to I/P.
3. Blower switch electrical connector.
4. Fresh/Recirc control cable to blower case.
5. Mode control cable to heater case.
6. Temperature control cable to heater case.
7. Center trim bezel.

Adjust

^ Temperature, mode and fresh/recirc control cables. Refer to Temperature Control Cable Adjustment, Mode Control Cable Adjustment, and Fresh/Recirc Control Cable Adjustment.
