Heater Control Unit Face Plate Replacement

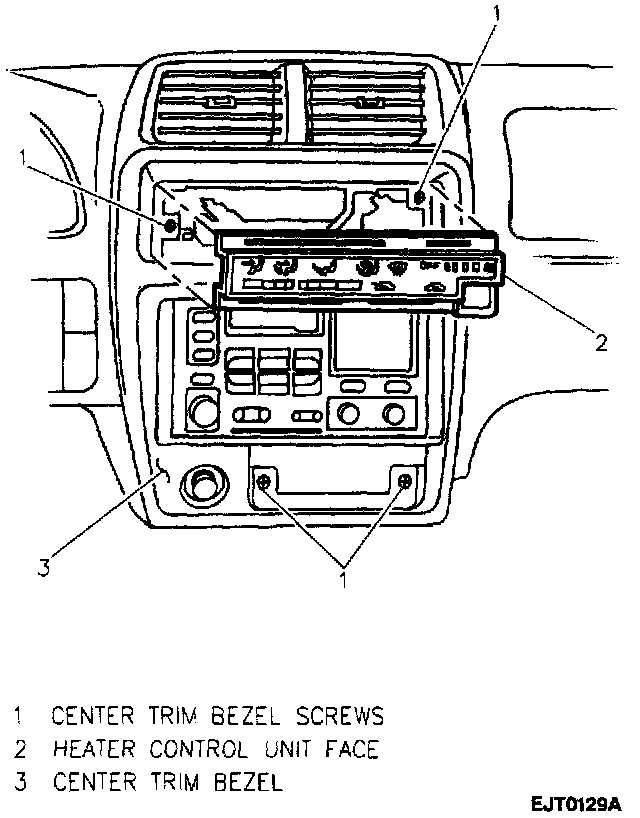

Center Trim Bezel:

Remove or Disconnect
1. Negative (-) battery cable.
2. Four control knobs from heater control unit.
3. Pull heater control unit face plate from instrument panel.
4. Heater control unit illumination lamp socket from face plate.
5. Pull out instrument panel compartment while pushing its stopper from both left and right sides (if equipped with A/C).
6. A/C switch electrical connector (if equipped).
7. A/C switch from heater control unit face plate (if equipped).

Install or Connect
1. A/C switch to heater control unit face plate (if equipped).
2. A/C switch electrical connector (if equipped).
3. Close instrument panel compartment.
4. Illumination lamp bulb socket to heater control unit face plate.
5. Press heater control unit face plate into position on instrument panel.
6. Heater control unit control knobs.
7. Negative (-) battery cable.
