Station Setup
ACR4 Setup:
CAUTION: Always wear goggles and gloves when doing work that involves opening the refrigeration system. If liquid refrigerant comes into contact with the skin or eyes, injury may result. 1.

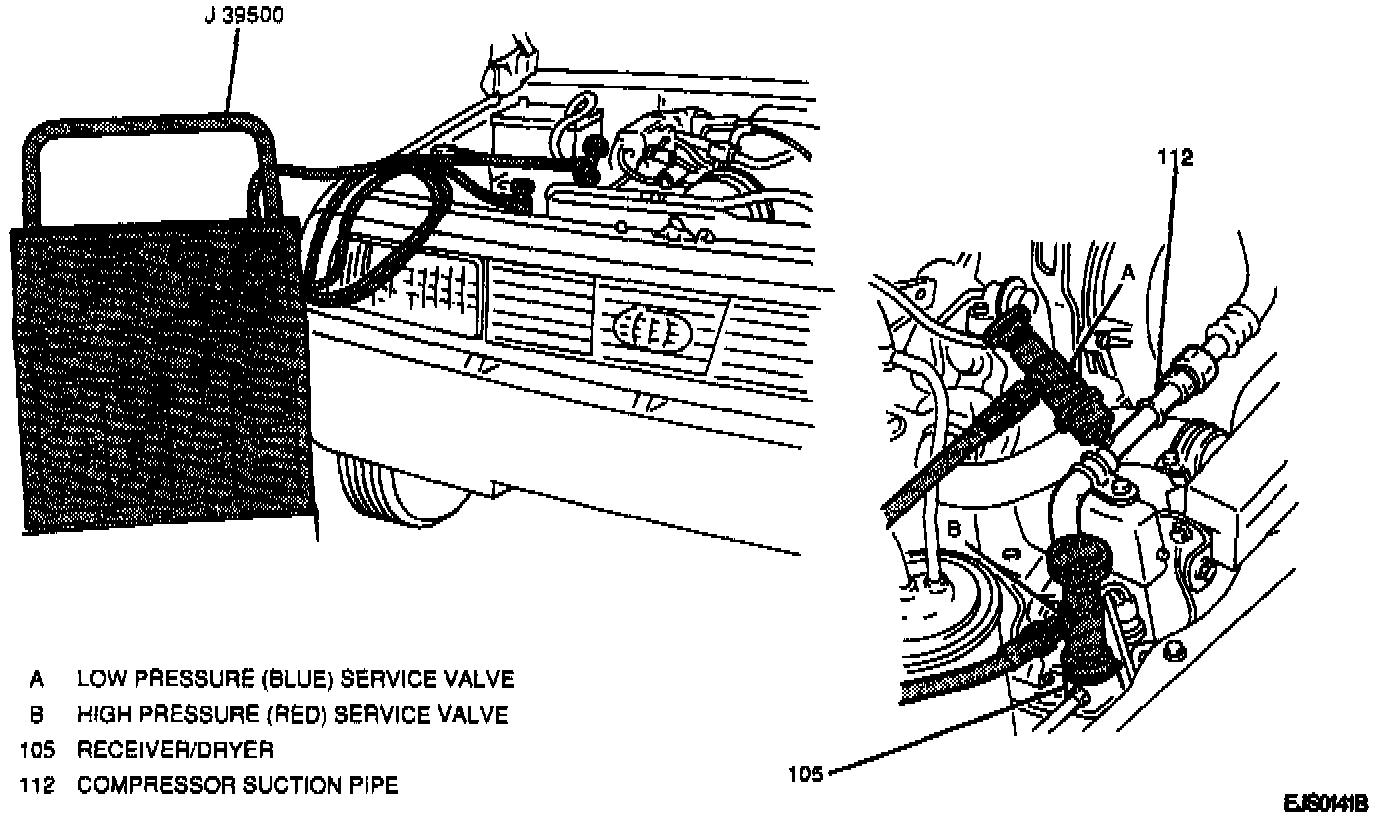

Connect the high side (red) and low side (blue) hoses to their respective service ports on the vehicle.
2.
Refer to the ACR4 instruction manual for all initial setup procedures and operating instructions.
