Audible Warning Device Control Module: Service and Repair

Audio Alarm Module Removal:

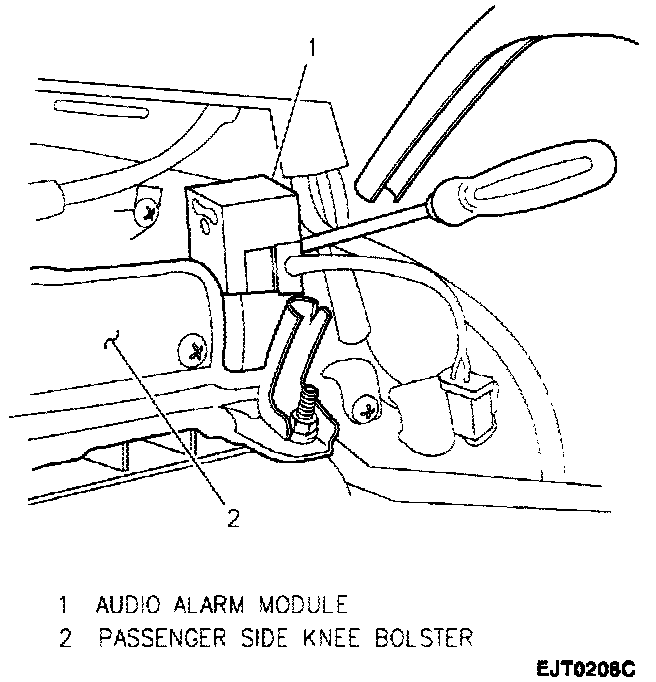

The audio alarm module is mounted inside the instrument panel, between the radio and instrument panel compartment.

Remove or Disconnect
1. Negative (-) battery cable.
2. Pull out instrument panel compartment while pushing its stopper from both left and right sides.
3. Electrical connector from audio alarm module.
4. With flat-bladed screwdriver, release locking tab and remove audio alarm module from bracket.

Install or Connect
1. Audio alarm module to instrument panel bracket.
2. Electrical connector to audio alarm module.
3. Close instrument panel compartment.
4. Negative (-) battery cable.
