Speedometer Module: Service and Repair

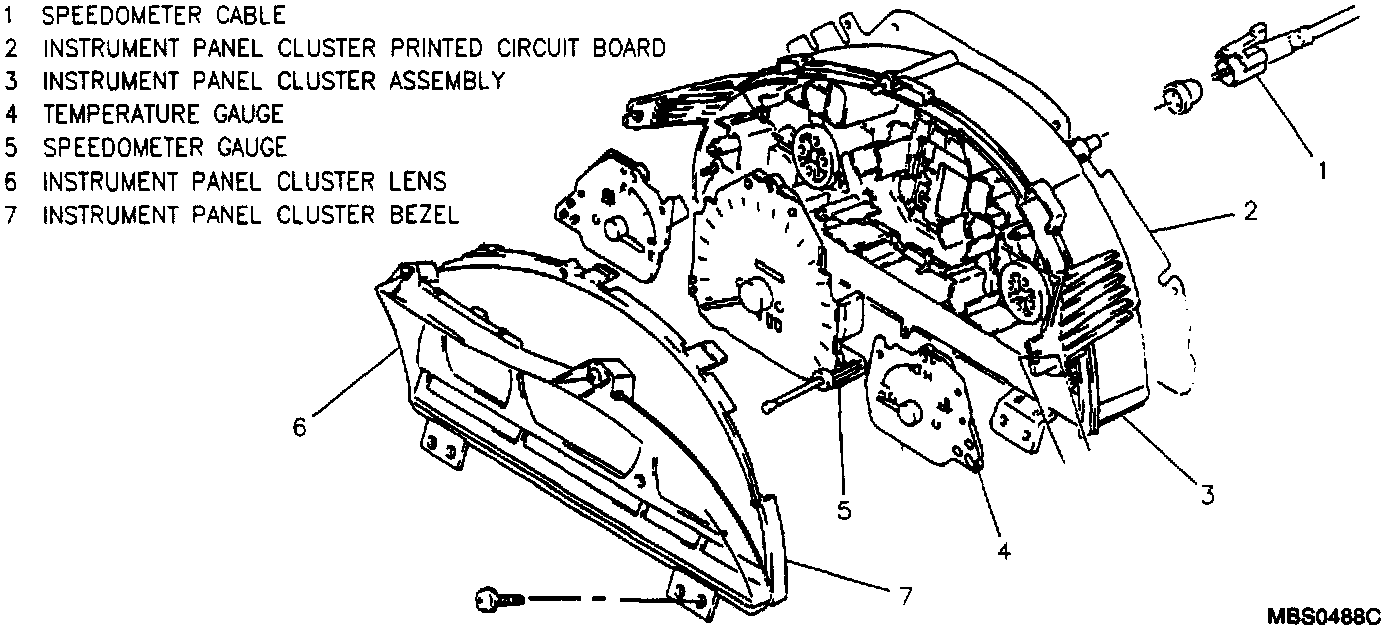

Instrument Cluster Assembly:

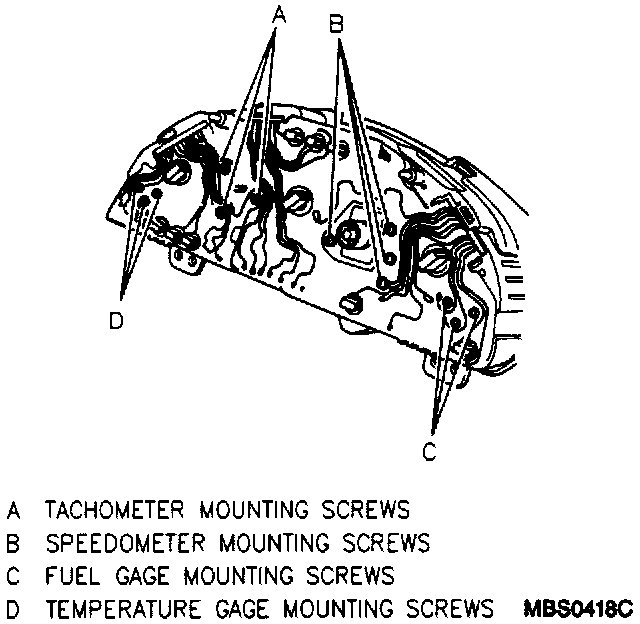

Gage Mounting Screws:

NOTICE: When replacing a speedometer or odometer assembly, the law requires the odometer reading of the replacement unit to be set to register the same mileage as the prior odometer. If the same mileage cannot be set, the law requires that the replacement odometer be set to zero (0) and a label be installed on the driver's door frame to show the previous odometer reading and date of replacement.

Remove or Disconnect
1. Negative (-) battery cable.
2. Instrument cluster assembly from instrument panel.
3. Instrument cluster lens and bezel assembly from instrument cluster housing by releasing eight black plastic tabs.
4. Three screws and fuel gage from instrument cluster housing.

Install or Connect
1. Fuel gage to instrument cluster housing; secure with three screws.
2. Instrument cluster lens and bezel to instrument cluster housing.
3. Instrument cluster assembly to instrument panel.
4. Negative (-) battery cable.
