General

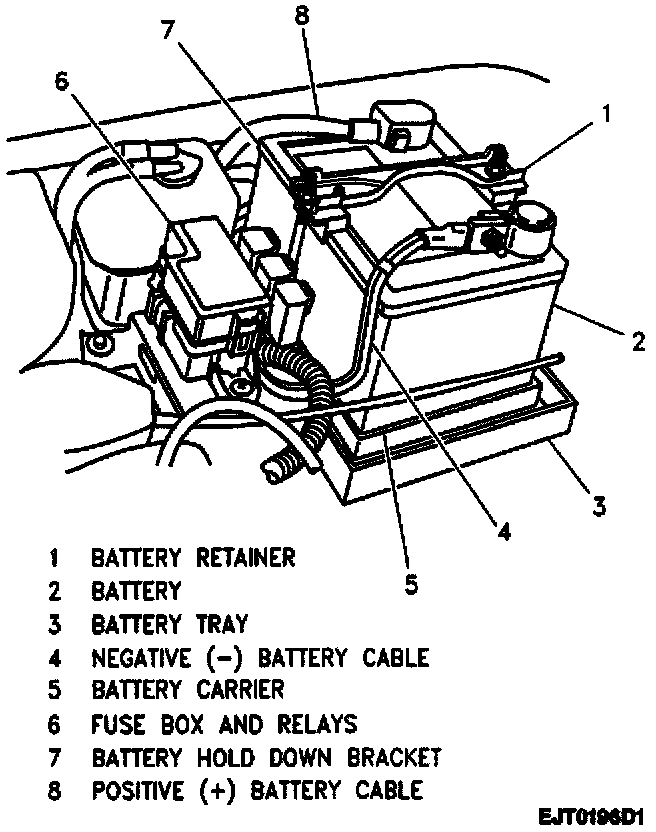

Battery, Cables, Carrier And Hold Down Bracket:

REMOVE OR DISCONNECT
1. Negative (-) battery cable from negative (-) battery terminal.
2. Positive (+) battery cable from positive (+) battery terminal.
3. Two nuts and battery retainer from hold down brackets.
4. Battery from vehicle.

INSTALL OR CONNECT
1. Battery into vehicle; position into carrier.
2. Battery retainer to hold down brackets; secure with two nuts.
Tighten
^ Battery hold down bracket nuts to 8 N.m (71 lb. in.).
3. Positive (+) battery cable to positive (+) battery terminal.
Tighten
^ Positive battery cable-to-battery terminal to 5.5 N.m (48.68 lb. ft.).
4. Negative (-) battery cable to negative (-) battery terminal.
Tighten
^ Negative battery cable-to-battery terminal to 5.5 N.m (48.68 lb. ft.).
