Pull-In Test
Pull-In Test:
REMOVE OR DISCONNECT ^
Field coil lead wire from solenoid terminal.
Pull-In Test:

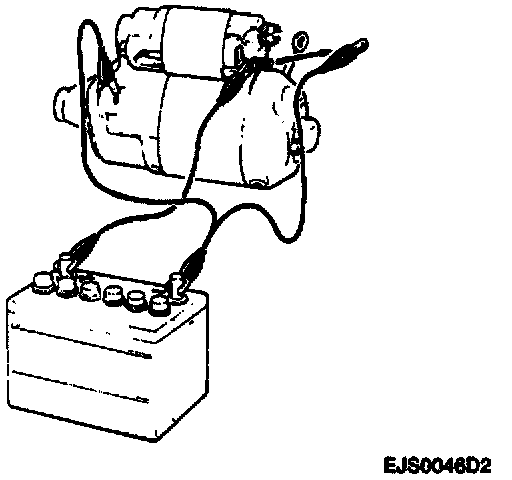

INSTALL OR CONNECT ^
Test leads from battery to
starter motor assembly.
^
That the pinion extends quickly and completely to the energized position.
^
If the pinion movement is satisfactory, proceed to the "Hold-In Test".
^
If the pinion movement is not satisfactory, replace the
starter solenoid.
