Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1982
>>
Civic CVCC L4-1488cc 1500 EM1
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Heater
Heater

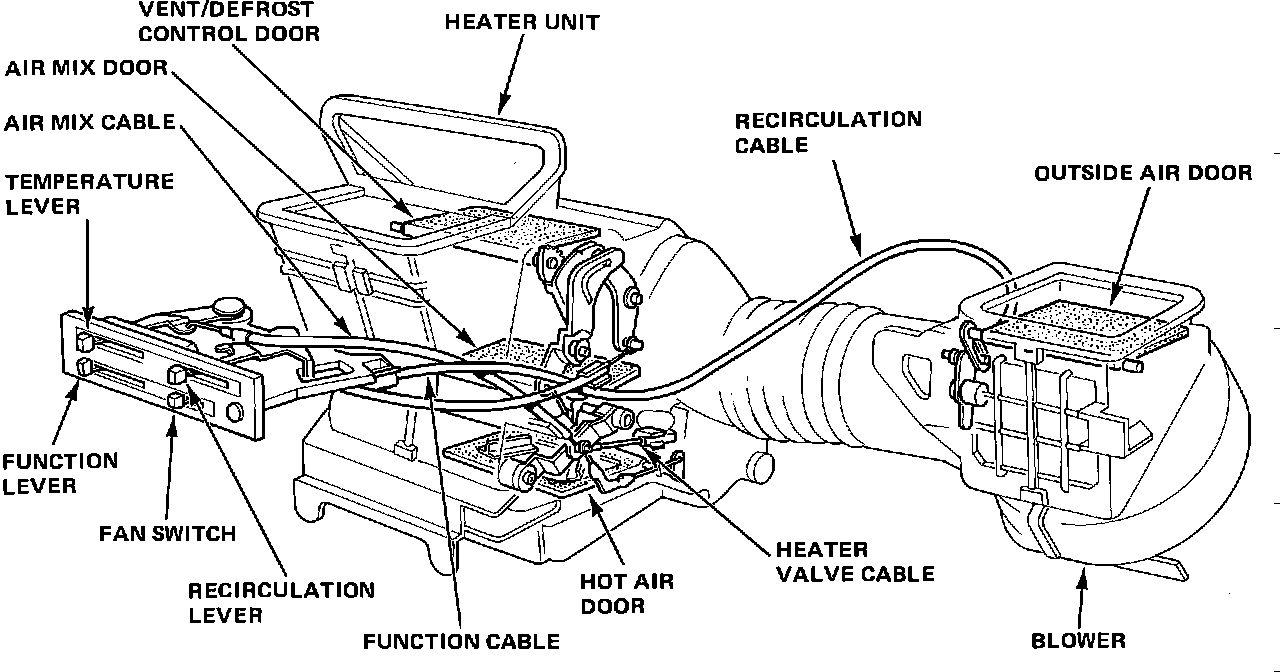

Fig. 7 System description, heater.:
