Control Box #1 Component Locations (HF CA/Hi Alt)
Control Box #1 Component Locations (HF CA/Hi Alt)

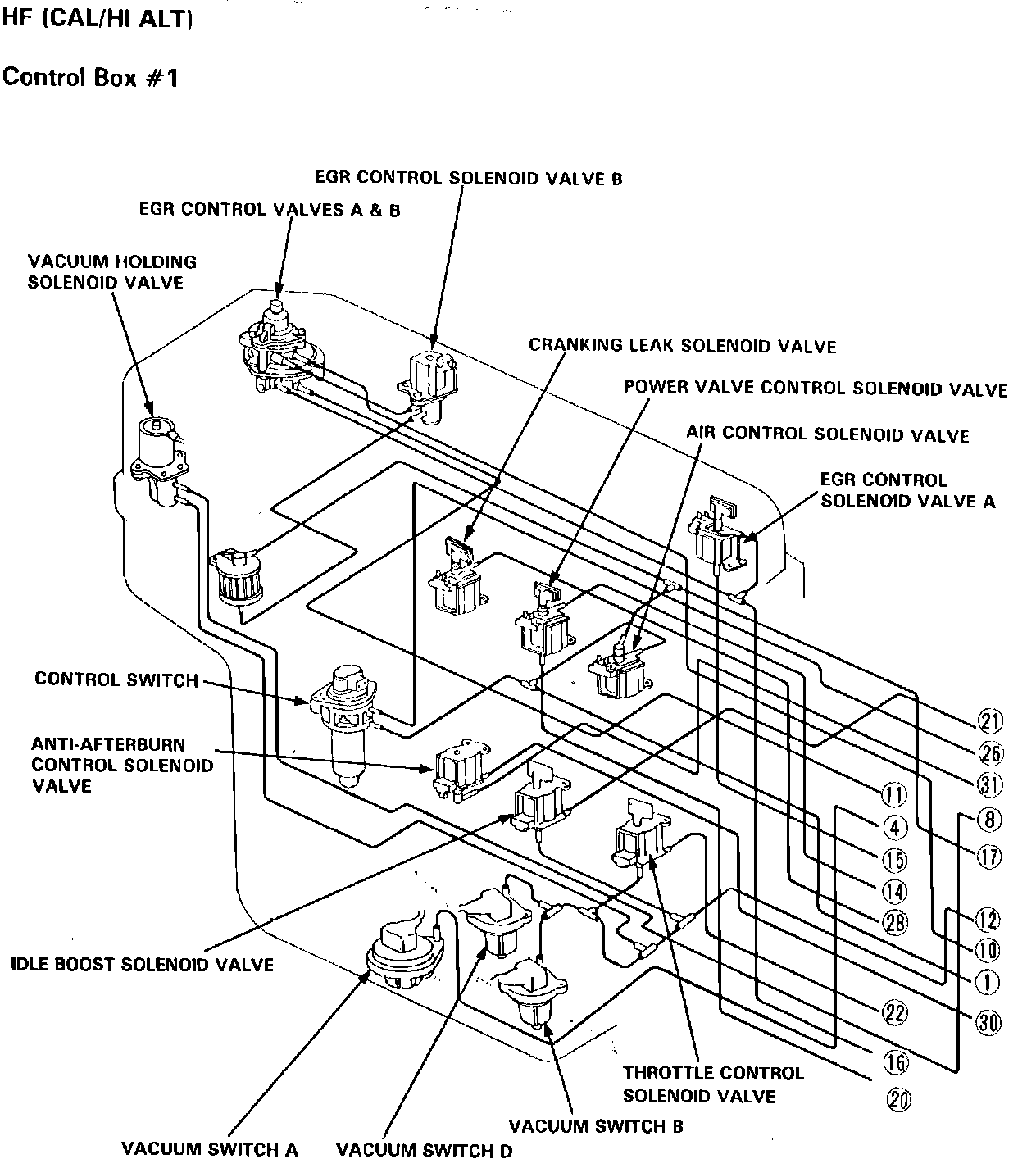

Fig. 390 Control Box #1 Component Locations (HF CA/HI ALT):
