Heating - Ventilation Setting Changes While Accelerating

Model Applicable To File Under Bulletin No.

84-067
PRELUDE '83-'85 ACCESSORIES Issue Date

DEC 10, '84

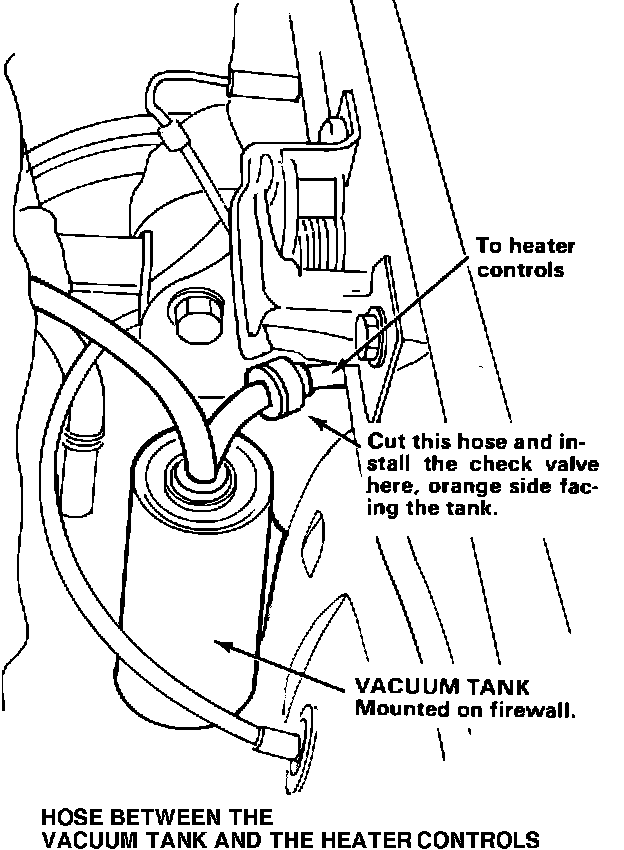

Hose Between The Vacuum Tank and The Heater Controls:

Prelude Vent SystemPROBLEM

While accelerating at full throttle for 10 seconds or more, the ventilation setting changes from FRESH to RECIRC, and the heater setting changes from VENT to HEAT/DEF.

CAUSE

The heater control system is losing vacuum.

CORRECTIVE ACTION

Cut the hose between the vacuum tank and the heater controls, and put a check valve in it. Make sure the orange side of the check valve is facing the tank.

PARTS INFORMATION

Check valve H/C 1129436, P/N 36145-PA6-661

WARRANTY CLAIM INFORMATION

Repair of cars beyond the normal 12/12 warranty requires prior approval by your District Service Manager.

Operation number: 613235

Flat rate time: 0.2 hour

Failed part H/C: 112943

Defect Code: 060

Contention code: B02
