Display Illumination
Display Illumination
Dash And Console Light Illumination Diagram (Part 1 Of 2):

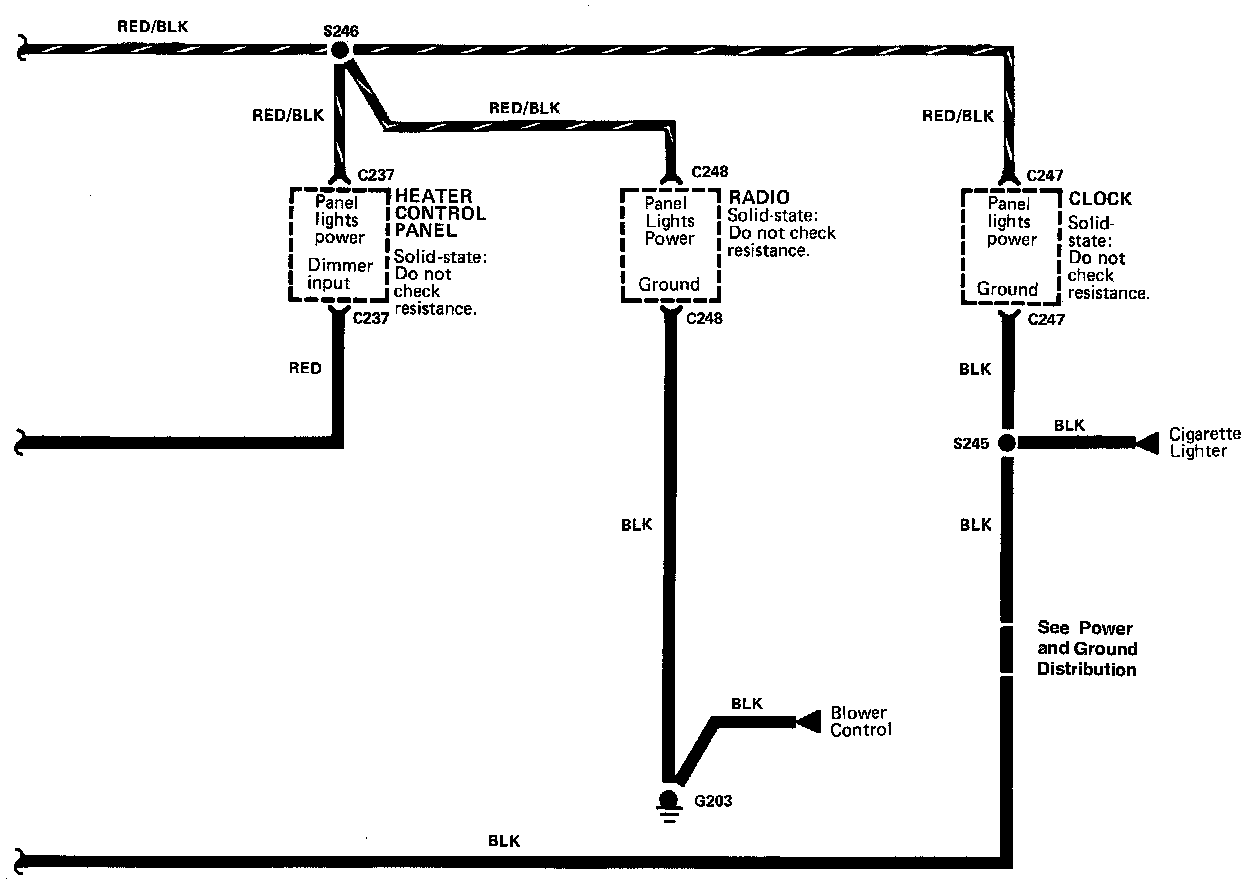

Dash And Console Light Illumination Diagram (Part 2 Of 2):
