Idle Up Control Valve: Testing and Inspection

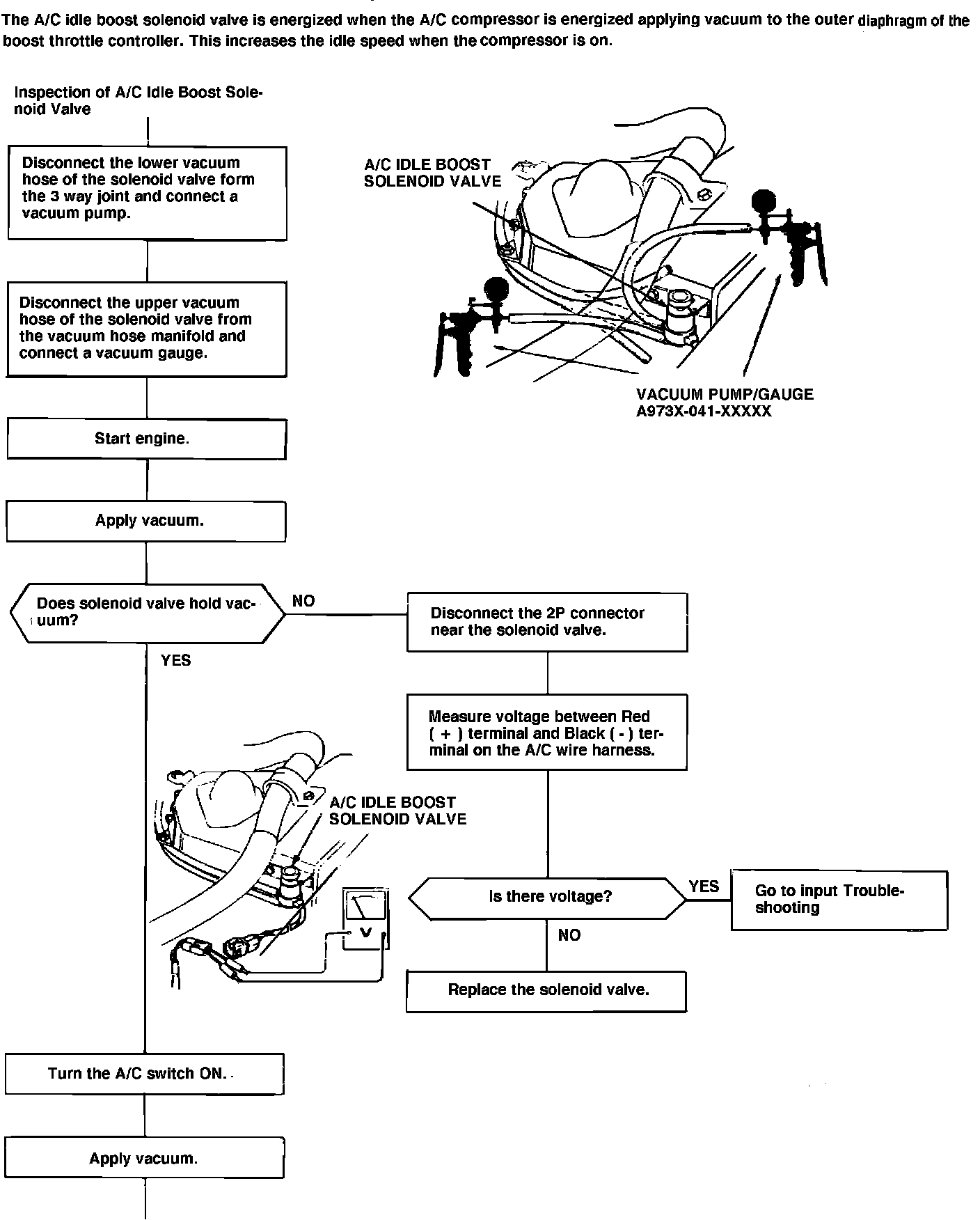

Fig. 19 Troubleshooting A/C Idle Boost Solenoid Valve.:



Fig. 19 Troubleshooting A/C Idle Boost Solenoid Valve.:
