Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

Coolant Temperature (TW) Sensor

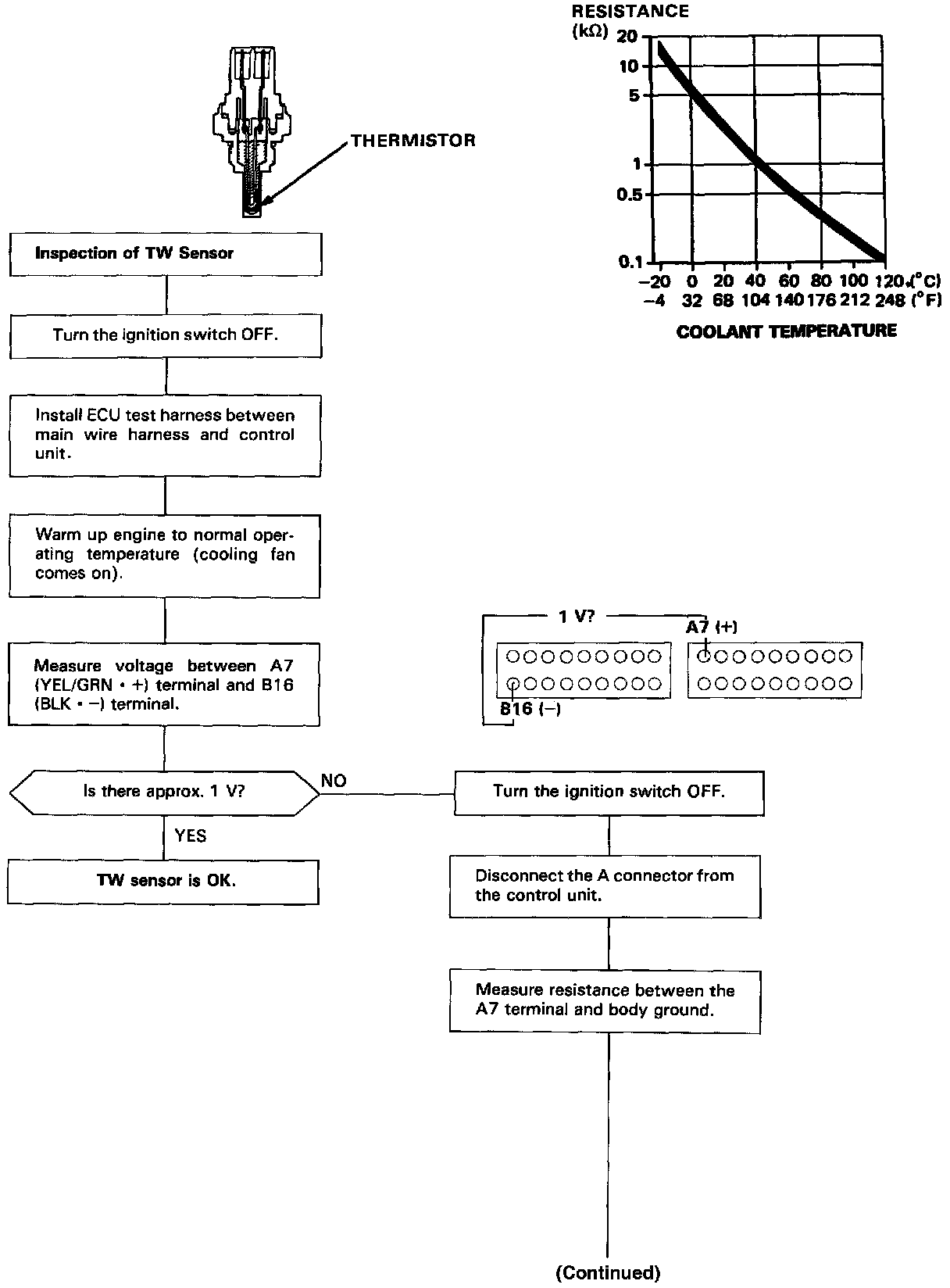

The coolant temperature sensor is a temperature dependant resistor (thermistor). The resistance of the thermistor decreases as the coolant temperature increases as shown.
