Ignition Output Signal: Testing and Inspection

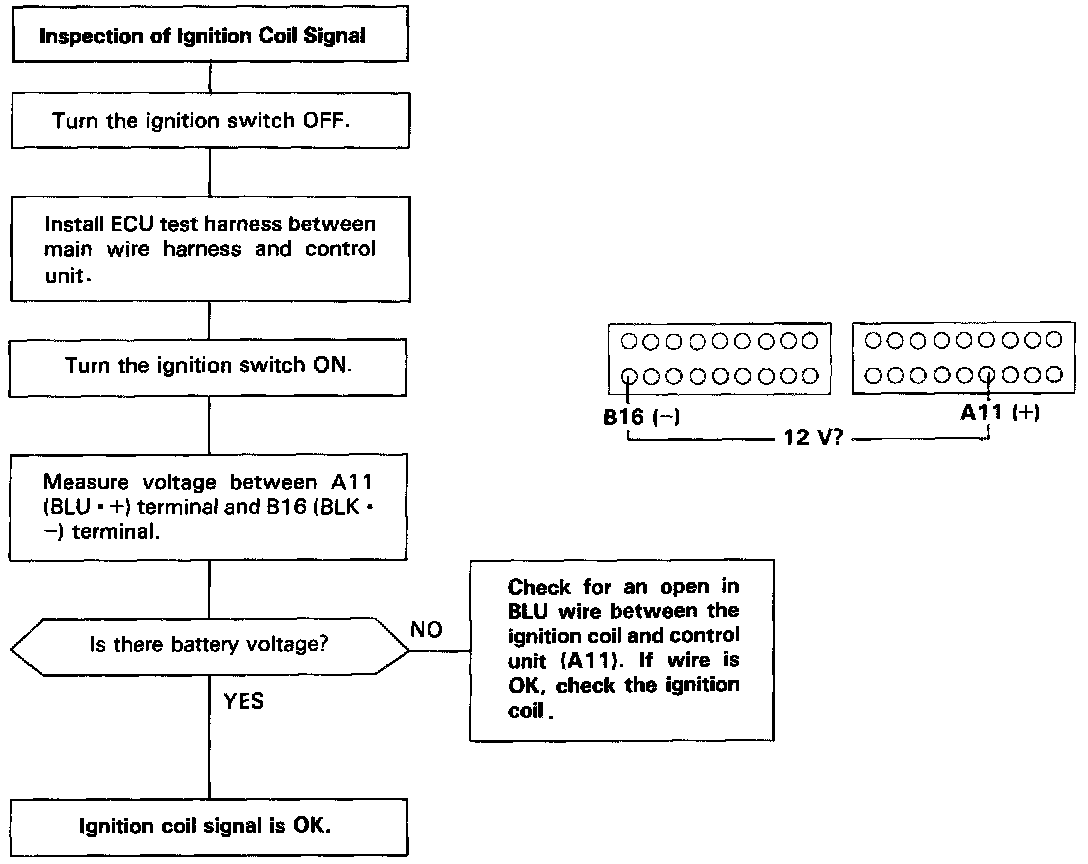

Ignition Coil Signal
This signal allows the [1][2]control unit to monitor the engine rpm.
