Engine - PGM-CARB Problem Code 1
88honda06Model
88 PRELUDE S
Applicable To
49ST
File Under
ENGINE
Bulletin No.
88-020 Issue Date JUL 15, '88
PGM-CARB Problem Code 1
PROBLEM
The Check Engine warning light comes on and the PGM-CARB ECU indicates Problem Code 1 while accelerating in a high gear, either uphill or at a large throttle opening.
CORRECTIVE ACTION
Install the Jet Needle Set listed under PARTS INFORMATION.
PROCEDURE

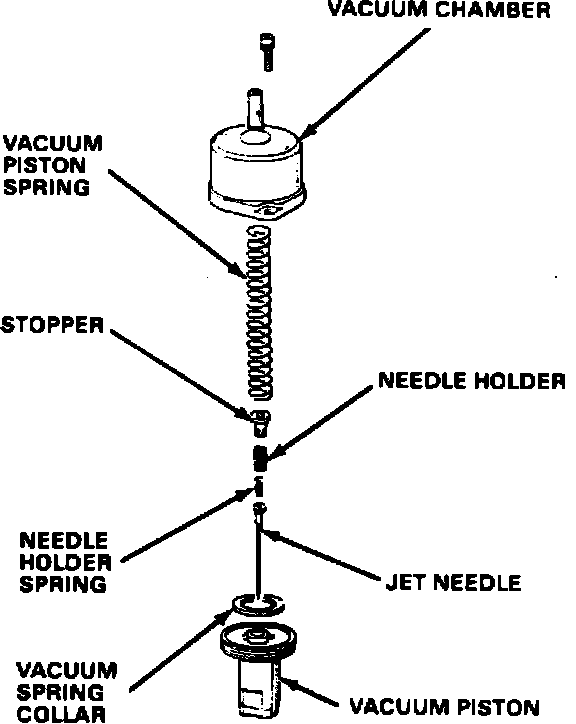

1. Disconnect the vacuum hoses from the vacuum chambers on both carburetors, then remove both vacuum chambers.
2. Remove the vacuum piston spring and vacuum piston from each carburetor.
3. Remove the stopper, needle holder, and needle holder spring from each vacuum piston.
4. Remove the original jet needies (8HB) from both vacuum pistons and replace them with the new jet needles (8HBB).
NOTE:
^ Hold the vacuum piston upside down while reinstalling the needle holder and its spring.
^ If the vacuum spring collar falls out of the vacuum piston, make sure it's reinstalled with the flat side down.
5. Reassemble the carburetors in the reverse order of disassembly.
PARTS INFORMATION
Jet Needle Set: P/N 16012-PK1-305, H/C 2996080
WARRANTY CLAIM INFORMATION
Operation number: 122147
Flat rate time: 0.5 hour
Failed part: P/N 16012-PK1-661 H/C 2622470
Defect code: 030
Contention code: C99
