A/C Signal
>>
Testing and Inspection
>>
A/C Compressor Clutch Cut Signal
A/C Compressor Clutch Cut Signal

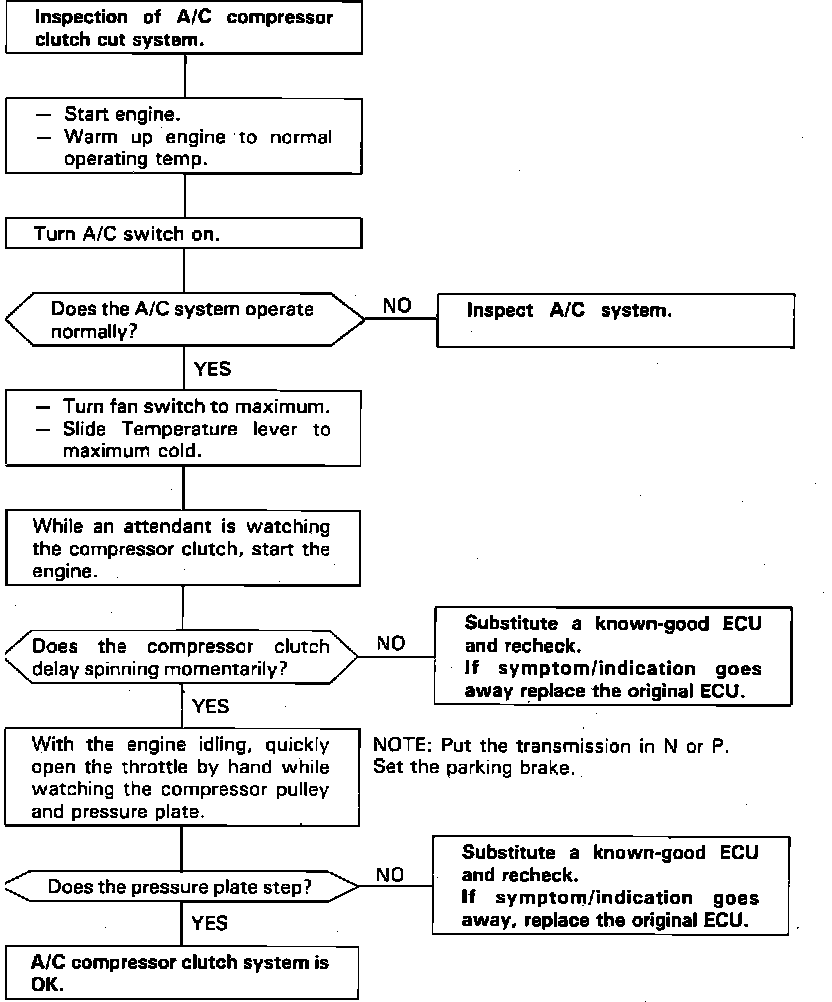

Fig. 63 A/C Compressor Clutch Cut System Test:
