Home >> Honda >> 1989 >> Prelude L4-1958cc DOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Control Solenoid >> Testing and Inspection

EGR Control Solenoid: Testing and Inspection

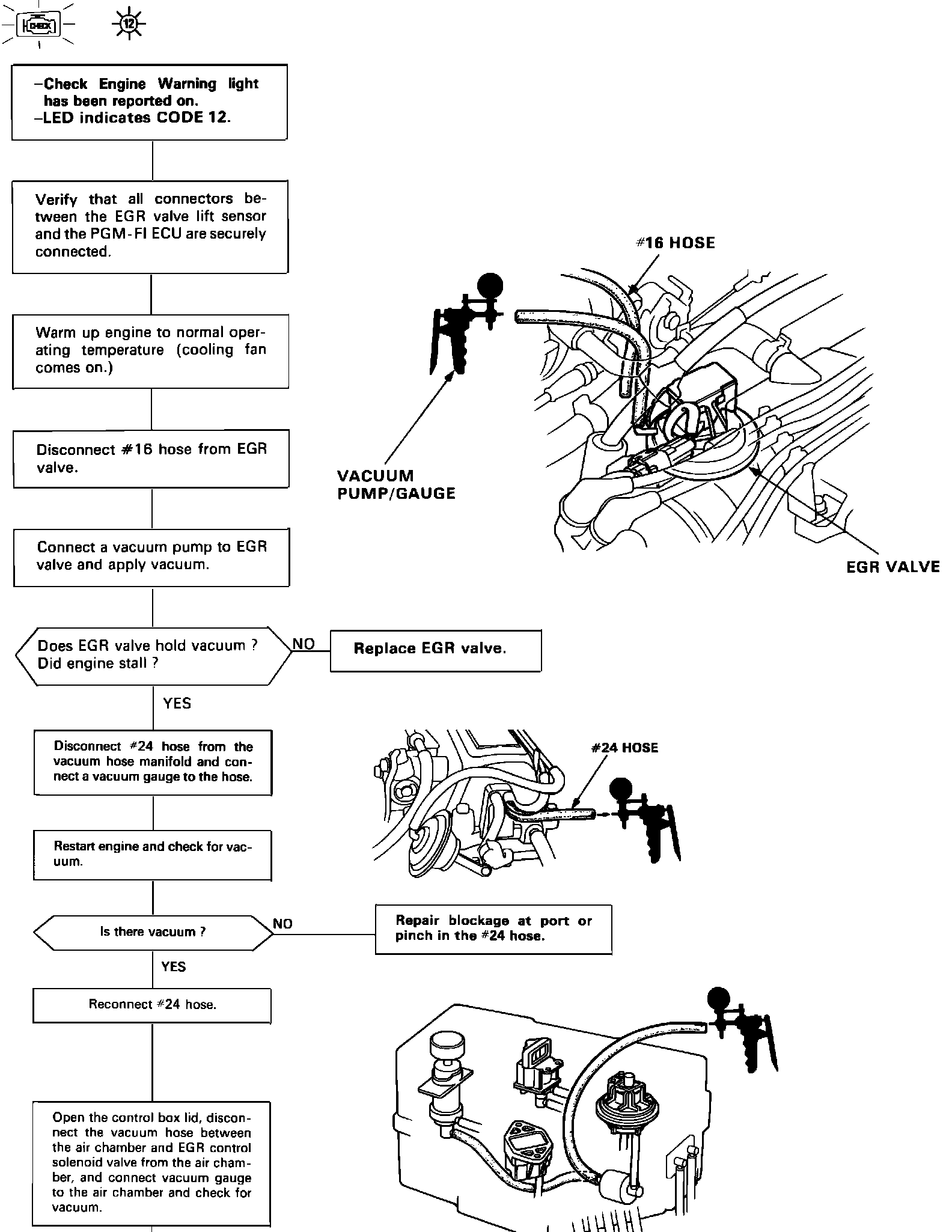

�H����Fig. 96 EGR System Troubleshooting Flow Chart:
