Wiring Diagrams

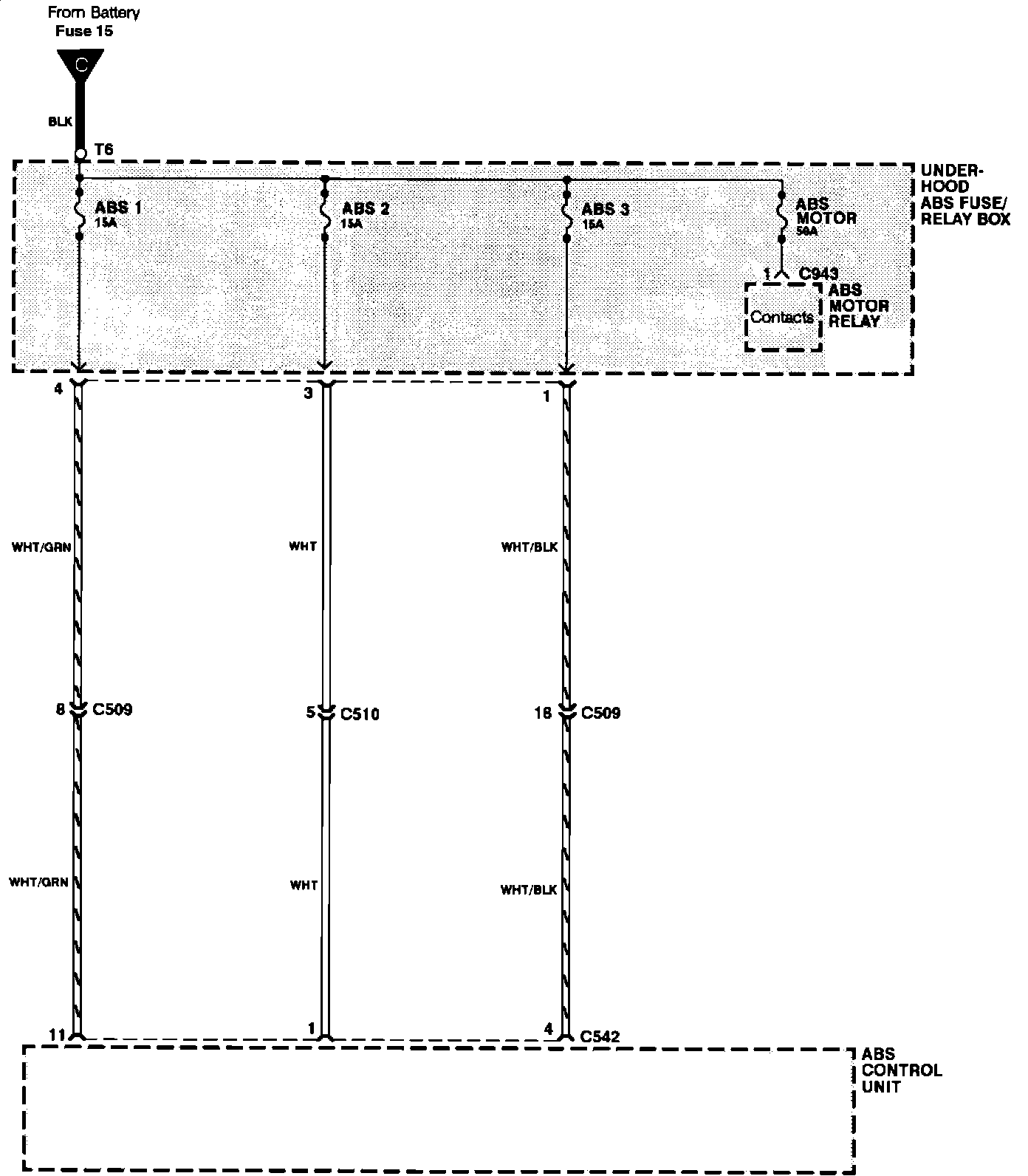

Power Distribution:

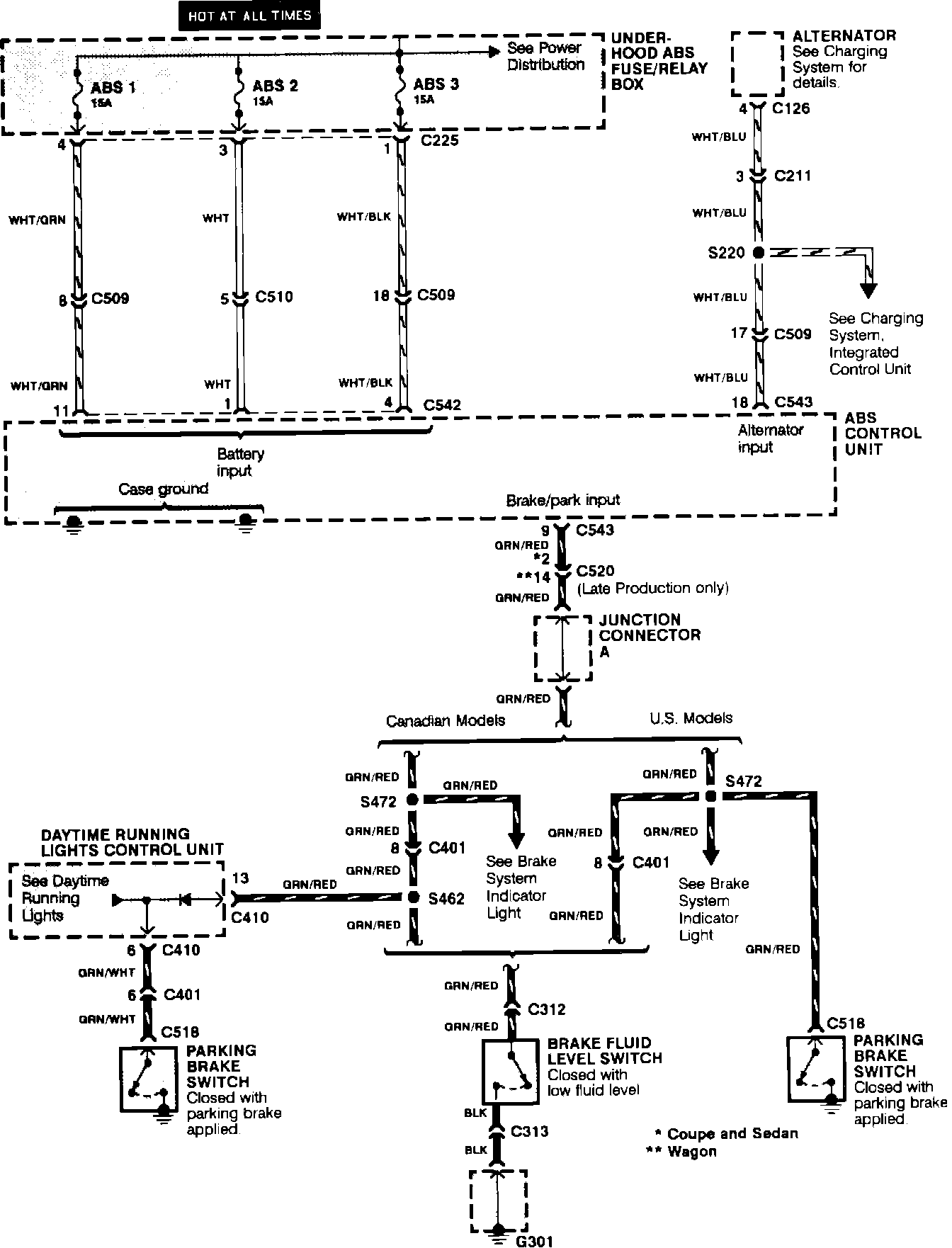

Anti-lock Brake System:

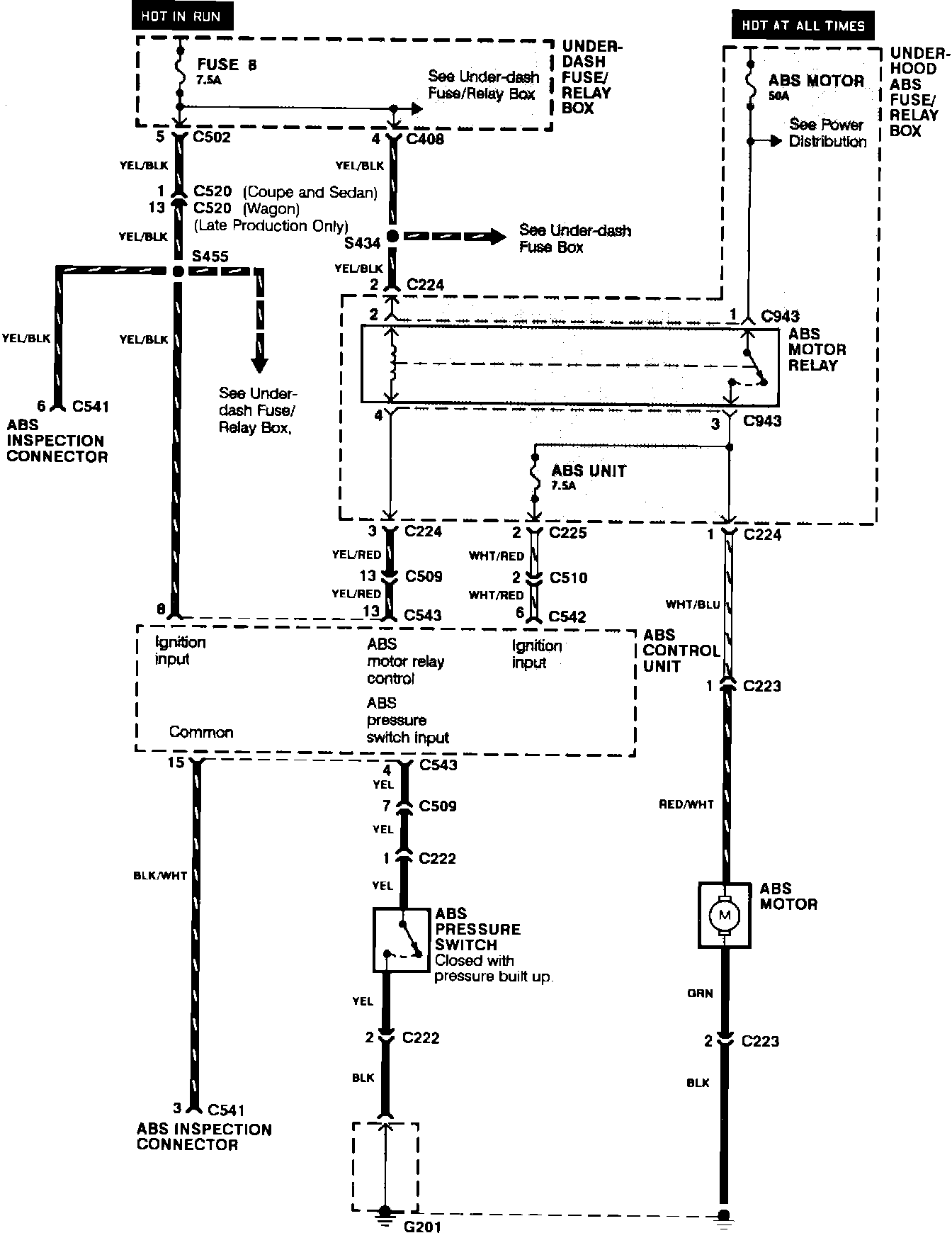

Anti-lock Brake System:

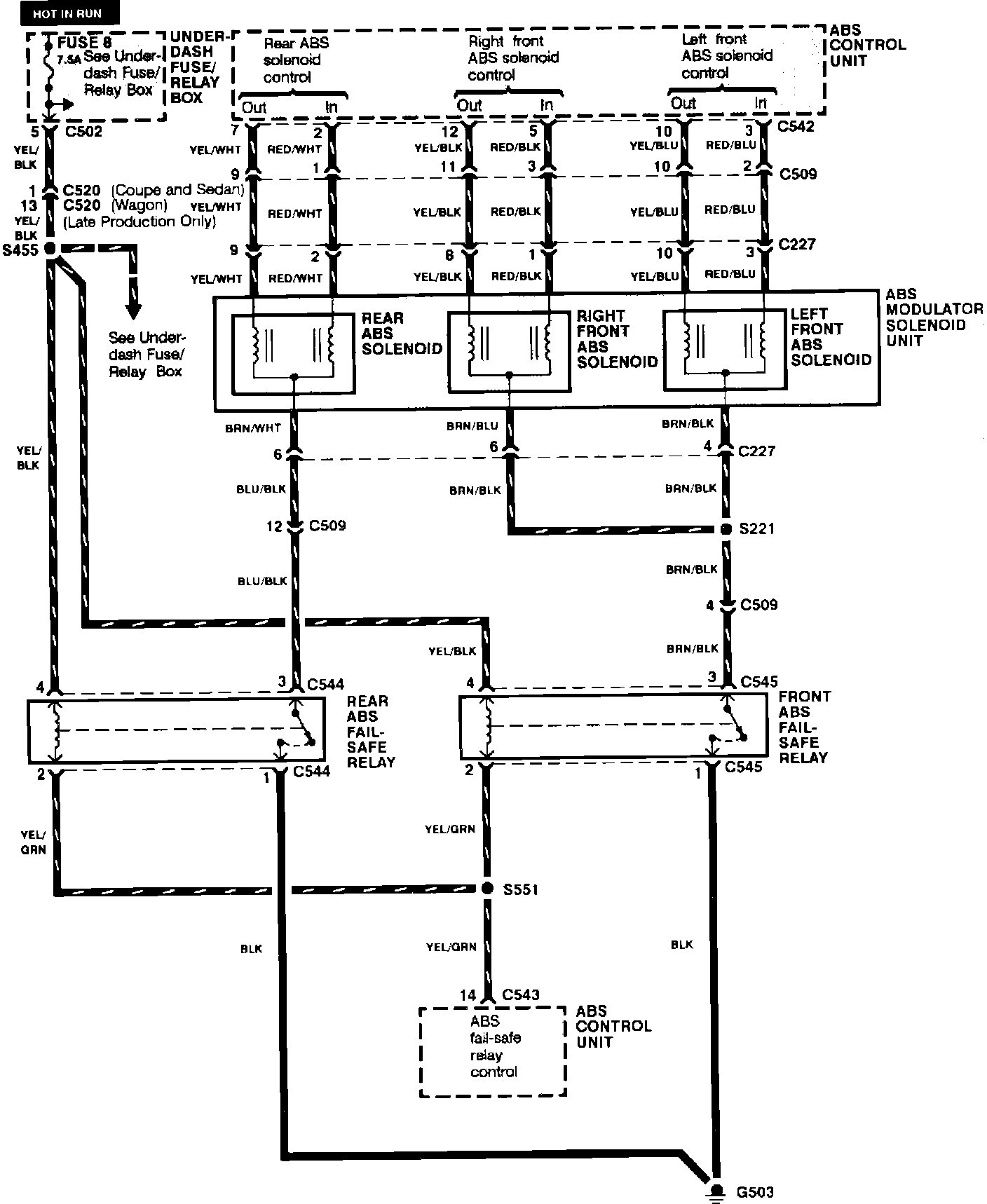

Anti-lock Brake System:

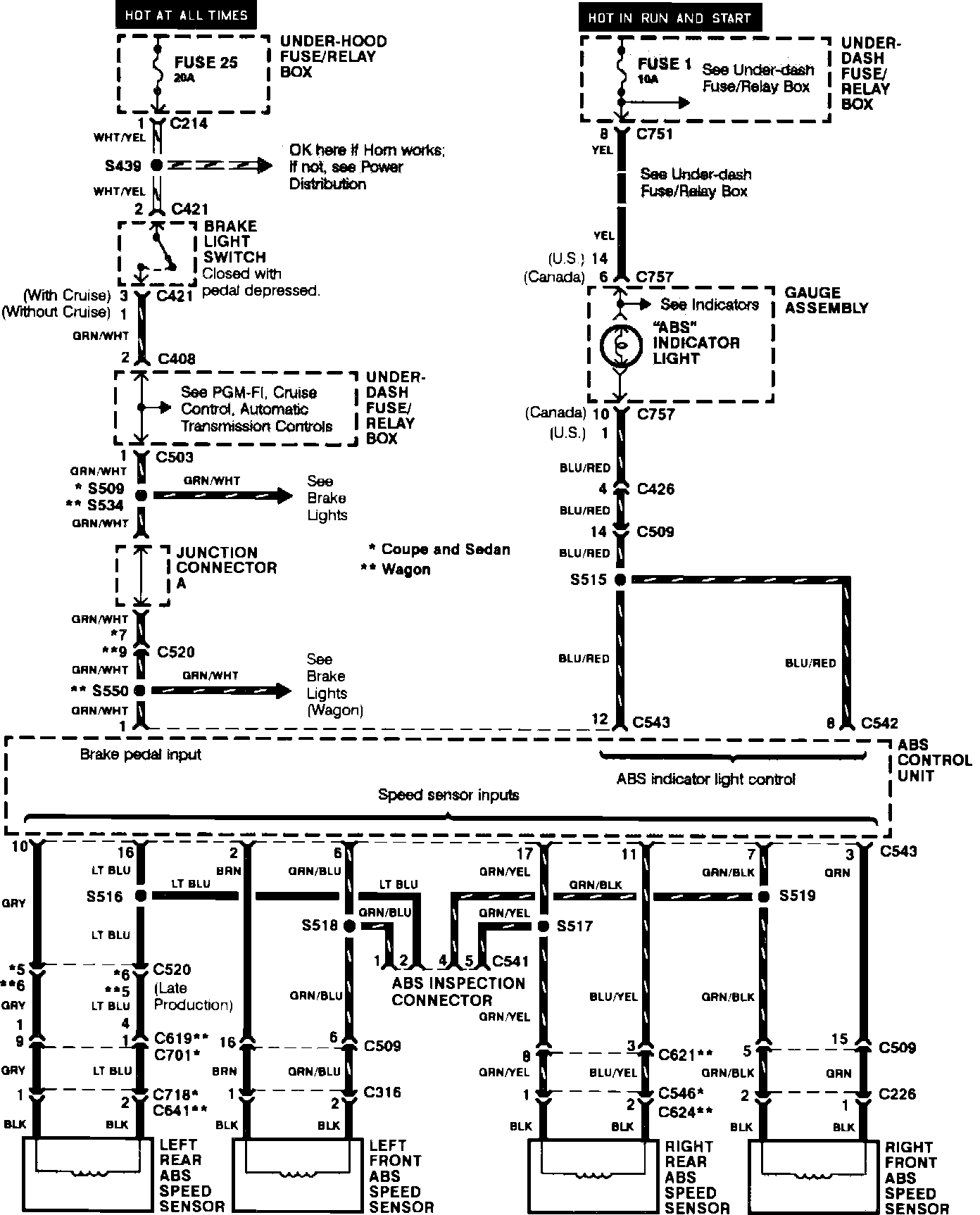

Anti-lock Brake System:
