Audible Warning Device

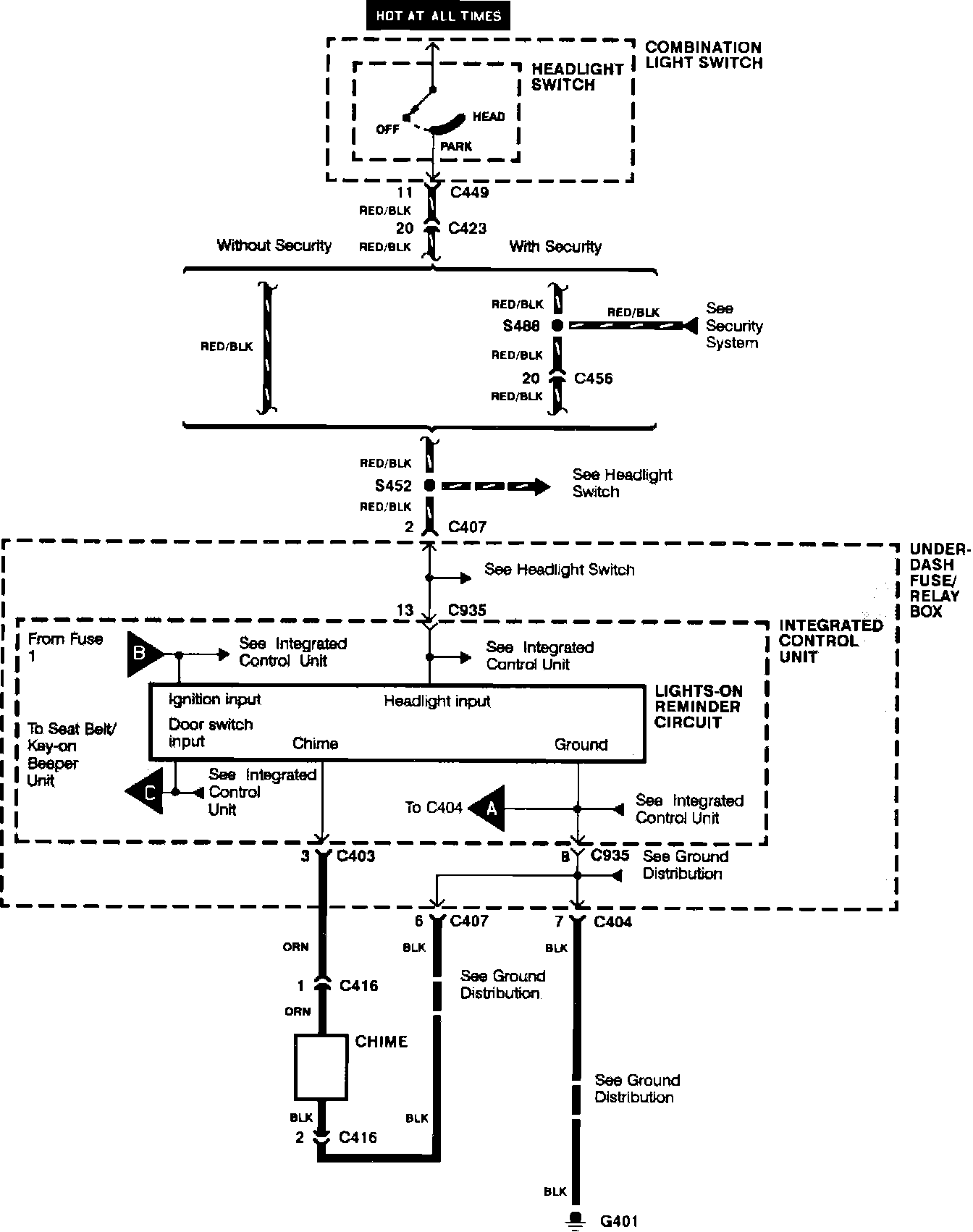

Seat Belt, Lights-0n, And Ignition Key Reminders:

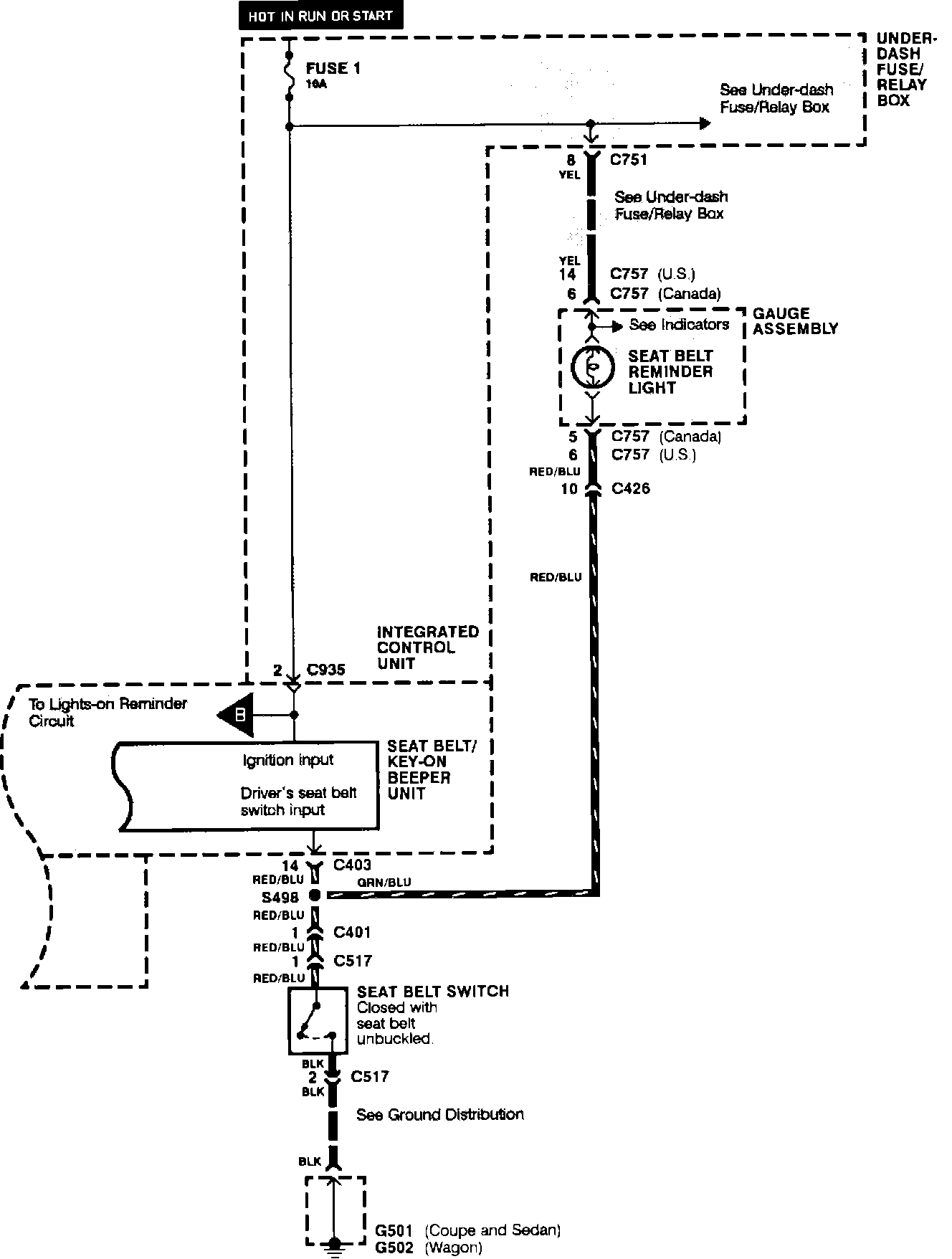

Seat Belt, Lights-0n, And Ignition Key Reminders:

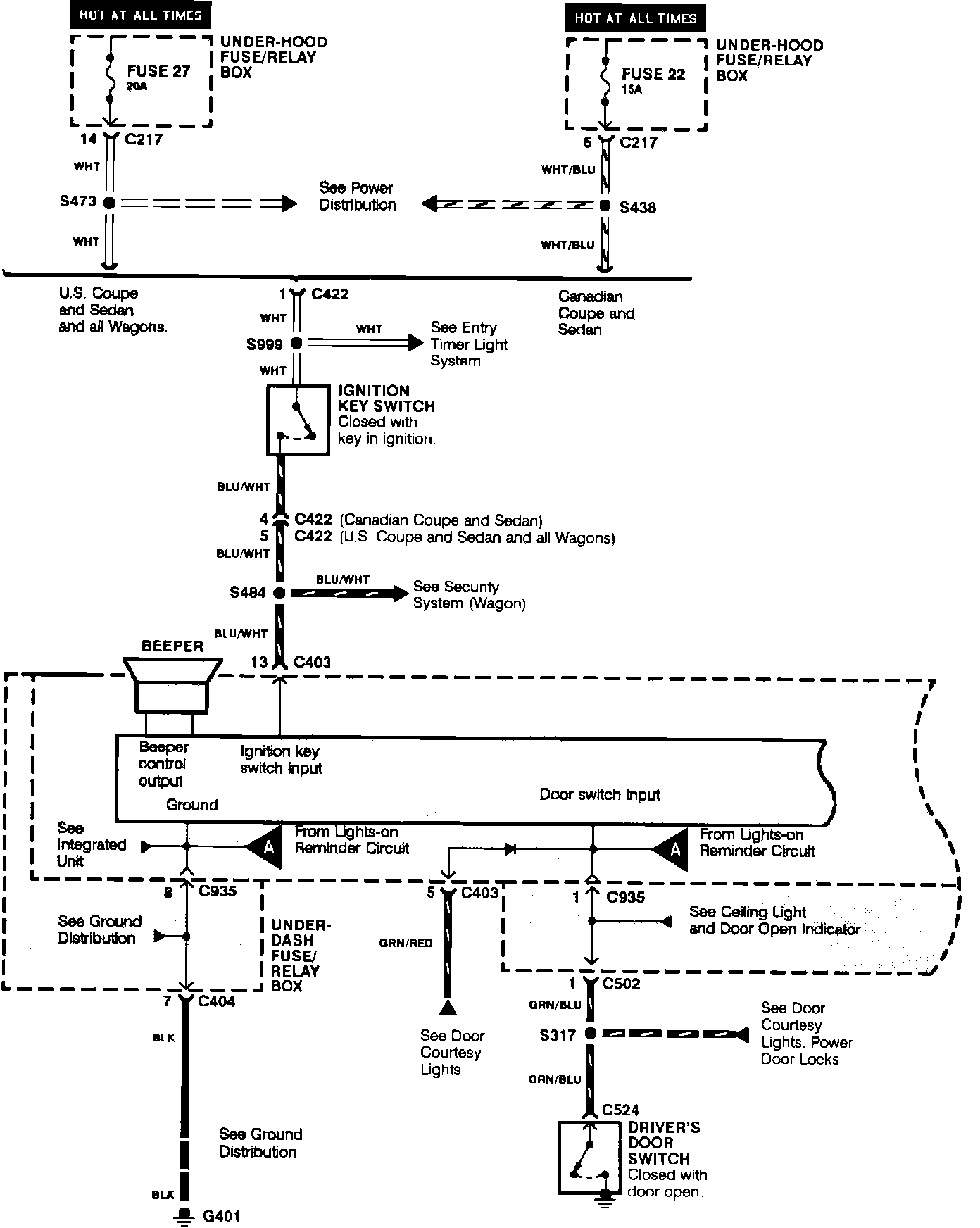

Seat Belt, Lights-0n, And Ignition Key Reminders:



Indicators:
