Home >> Honda >> 1992 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> G381

G381

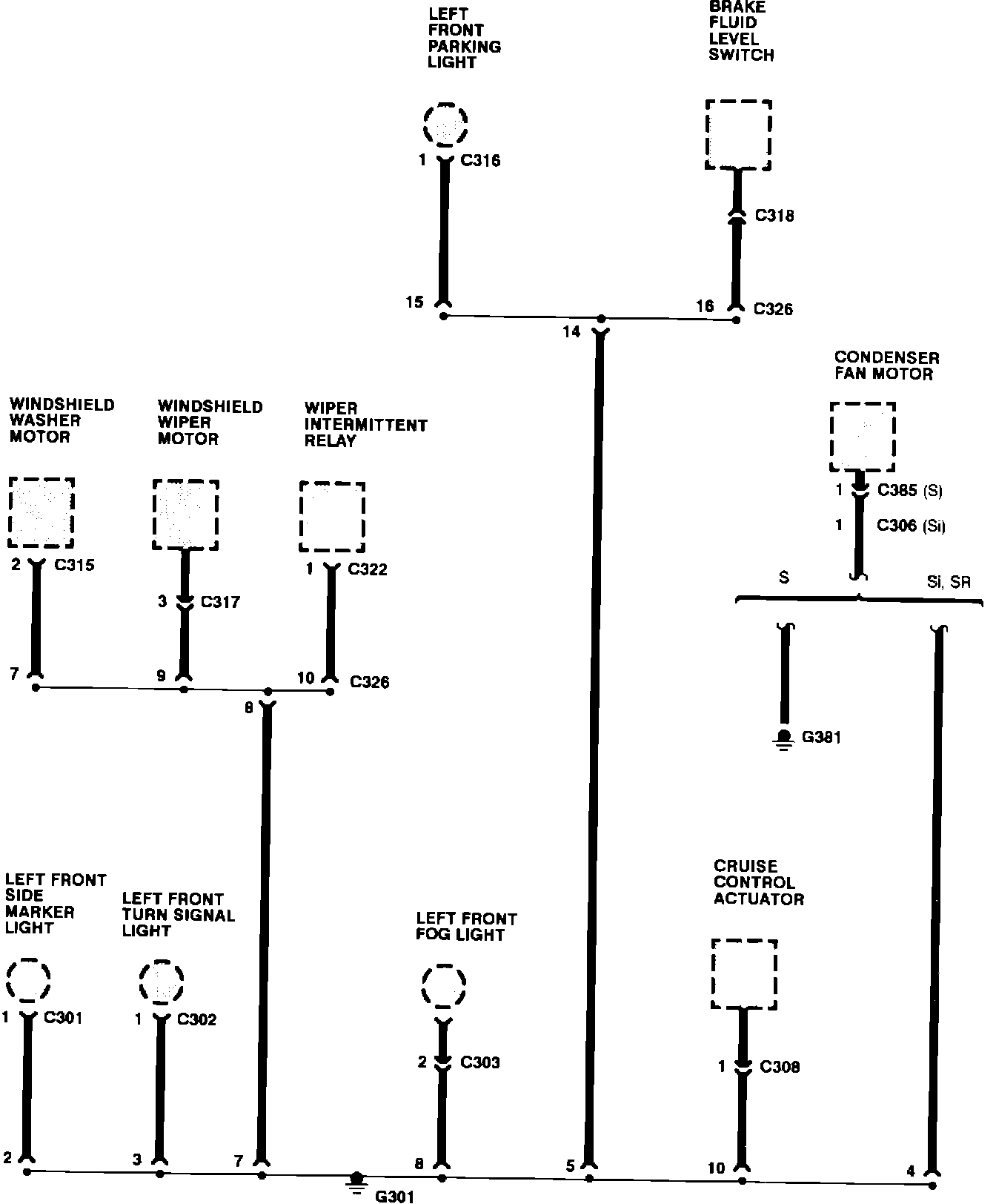

G301, G381 And G401:

G301, G381 And G401:
