Recirculation Control Motor Replacement

Recirculation Control Motor Replacement

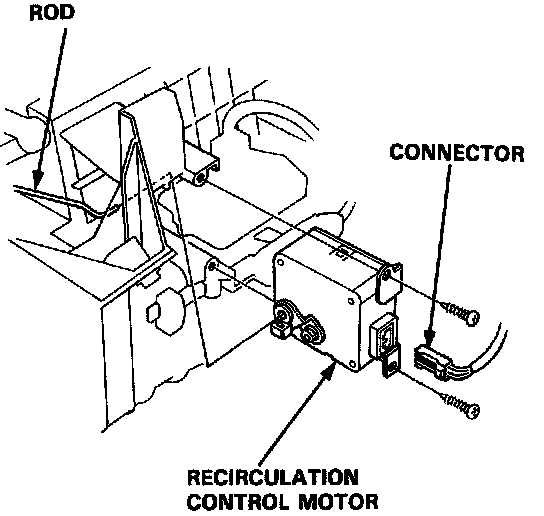

1. Disconnect the 4P connector from the recirculation control motor.
2. Remove the rod from the recirculation control motor.
3. Remove the screws (2) and recirculation control motor.
4. Install in the reverse order of removal. After installation, make sure the recirculation control motor operates smoothly.
