Recirculation Control Switch Test

Recirculation Control Switch Test

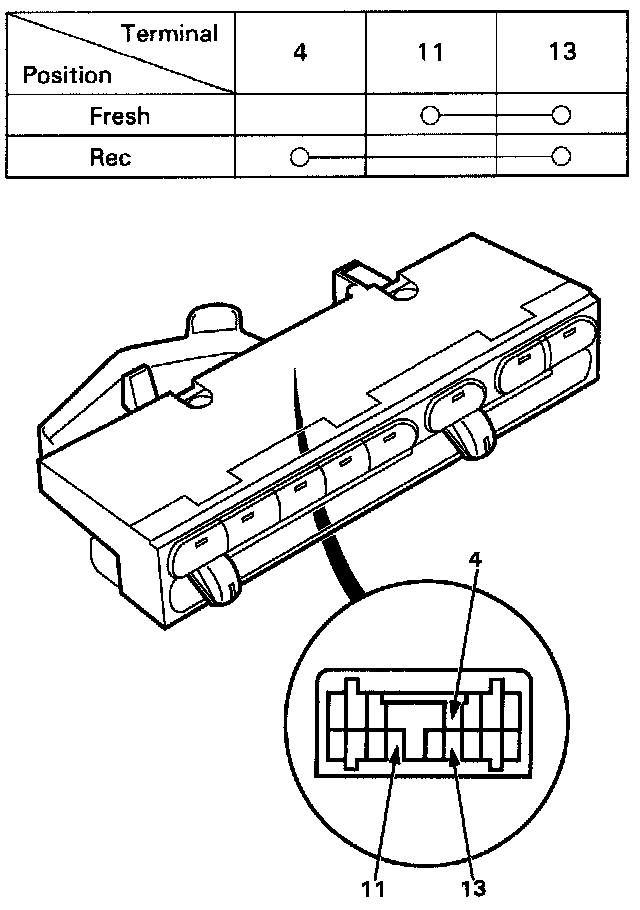

Check for continuity between the terminals according to the table below.
