Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1993
>>
Del Sol L4-1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Starter Motor
>>
Mitsuba
>>
With Permanent Magnet
With Permanent Magnet

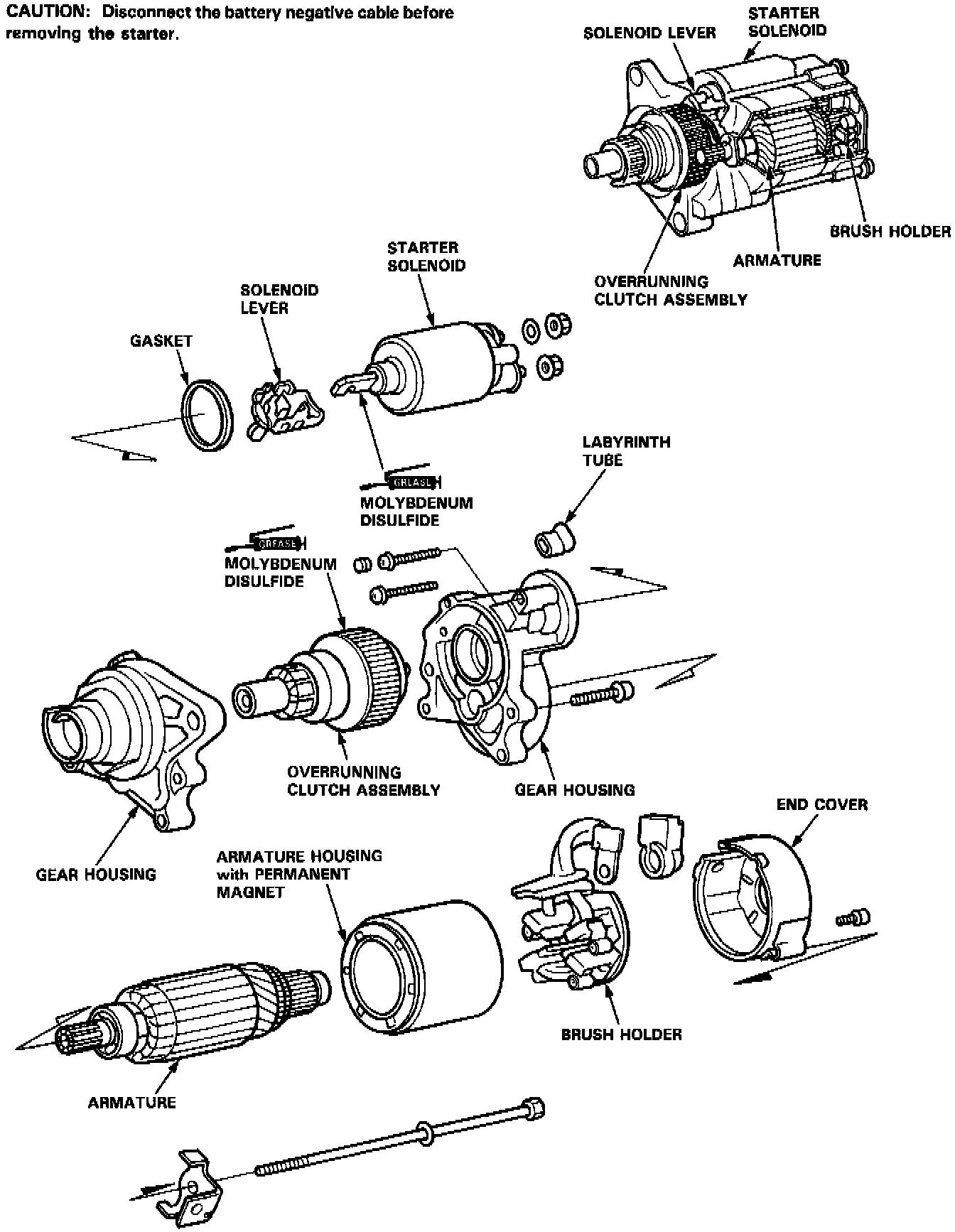

Starter Overhaul (Mitsuba Type - With Permanent Magnet):
