Home >> Honda >> 1994 >> Accord L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Under-Hood ABS Fuse/Relay Box

Under-Hood ABS Fuse/Relay Box

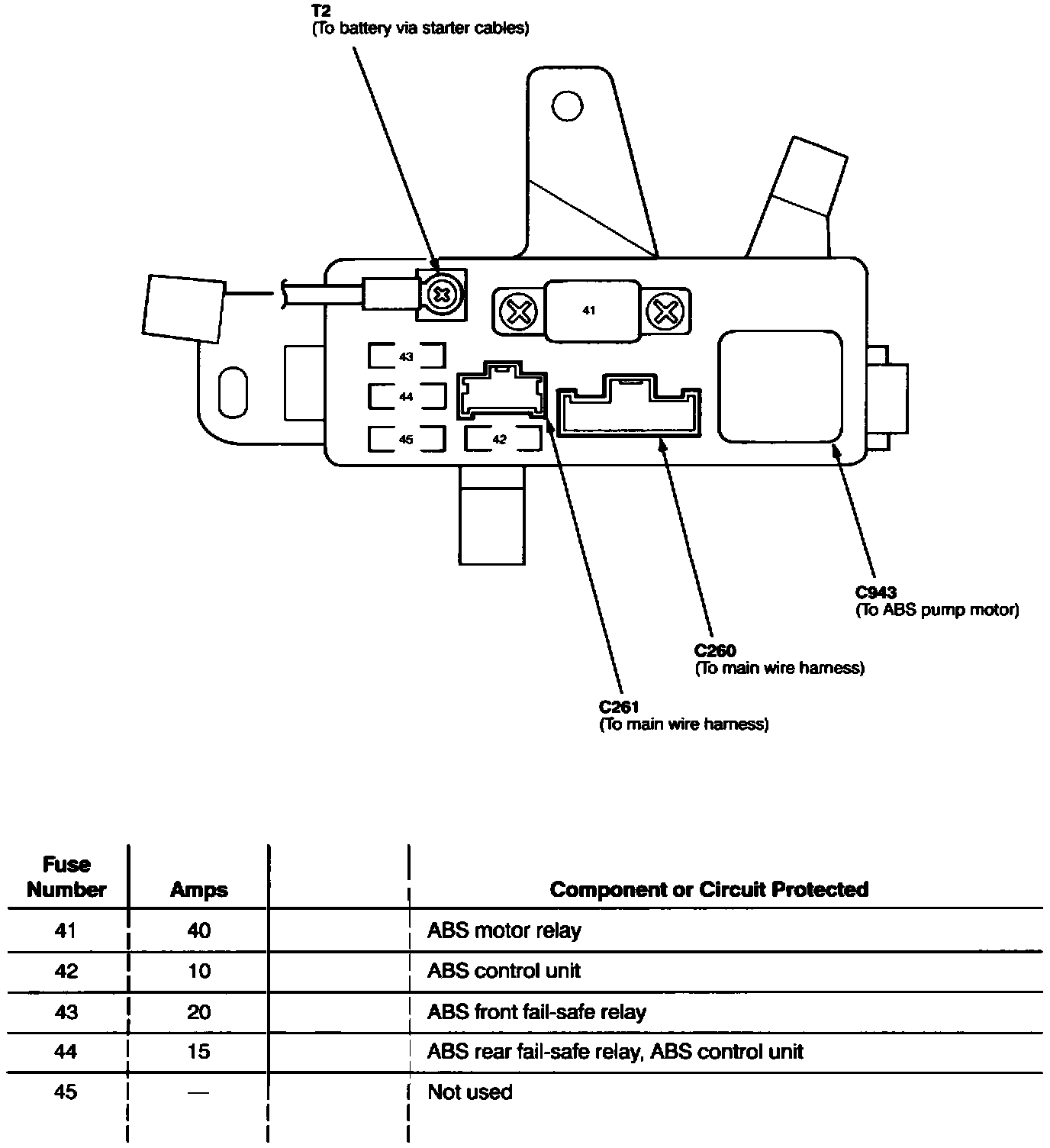

Under-hood ABS Fuse/Relay Box:
