Home >> Honda >> 1994 >> Civic L4-1590cc 1.6L SOHC (VTEC) MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Clock

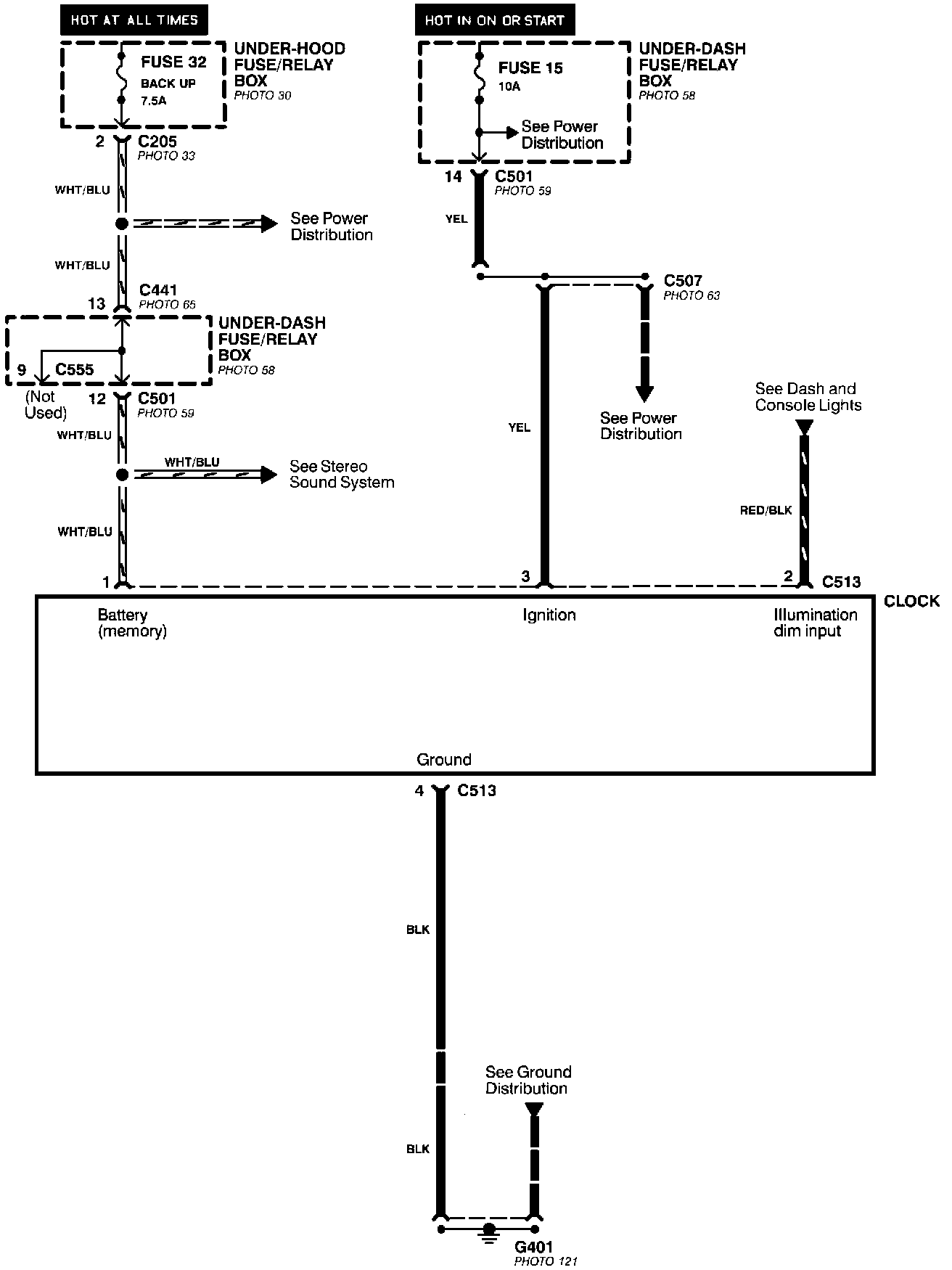

Clock

Clock:
