Reassembly

NOTE: The steel balls are all of the same size (5/16 in).

1. Install the magnet and reverse lock cam.
2. Set shift arm A on the clutch housing, then install the shift rod.
3. Install the spring washer and shift arm A attaching bolt.
4. Install the steel ball, spring, and set ball spring bolt.
5. Install shift arm B in the interlock, then set it on the clutch housing.
6. Insert shift arm shaft in the clutch housing
7. Install the collar, spring, and steel ball into the case. Compress the ball and insert the shift arm shaft.
8. Install shift arm C in shift arm A, then insert the shift arm shaft.
9. Install the reverse select retainer and reverse select spring onto shift arm shaft.
10. Install the spring washer and shift arm C attaching bolt.
11. Install the differential assembly.




12. Set the spring washer and washer.
13. Install the mainshaft, countershaft, and shift fork assemblies.

NOTE: Align the finger of the interlock with the groove in the shift fork shaft.




14. Install the spring washer and shift arm B attaching bolt.
15. Install the 1st/2nd select spring, 28 mm plug bolt, and interlock guide bolt.

NOTE: Apply liquid gasket (P/N 08718-0001) to the threads of the 28 mm plug bolt and interlock guide bolt.




16. Install the reverse idler gear and reverse idler gear shaft.




17. Install the reverse shift holder.




18. Install the oil guide plate and thrust shim on the transmission housing.




19. Install the oil gutter plate and 10 mm sealing bolt.

NOTE: Apply liquid gasket (P/N 08718-0001) to the threads of the 10 mm sealing bolt.

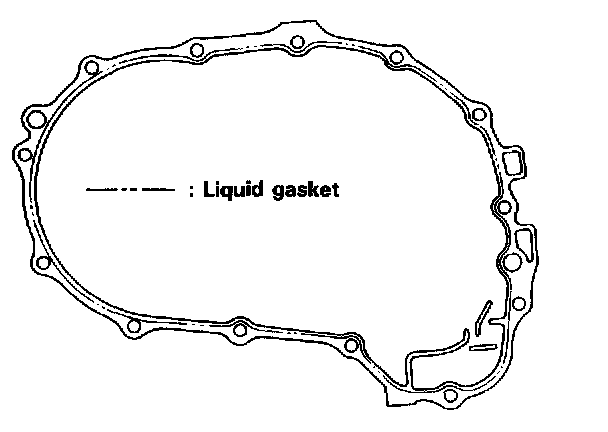

20. Apply liquid gasket to the surface of the transmission housing mating with the clutch housing as shown.

NOTE:
- Use liquid gasket (P/N 08718-0001).
- Remove the dirt and oil from the sealing surface.
- If 20 minutes have passed after applying liquid gasket, reapply it and assemble the housings.
- Refill the oil 30 minutes after replacement.

21. Install the dowel pins and the transmission housing.
22. Lower the transmission housing with the snap ring pliers and set the snap ring in the groove of the countershaft bearing.

NOTE: Check that the snap ring is securely seated in the groove of the countershaft bearing.





23. Install the 32 mm sealing bolt.

NOTE: Apply liquid gasket (P/N O8718-0001) to the threads.





24. Tighten the transmission housing attaching bolts in the numbered sequence in several steps shown.




25. Install the back-up light switch and transmission hanger B.
