Electrical Diagrams
Electrical Diagrams
Wiper/Washer (Part 1 Of 2):
Wiper/Washer (Part 2 Of 2):

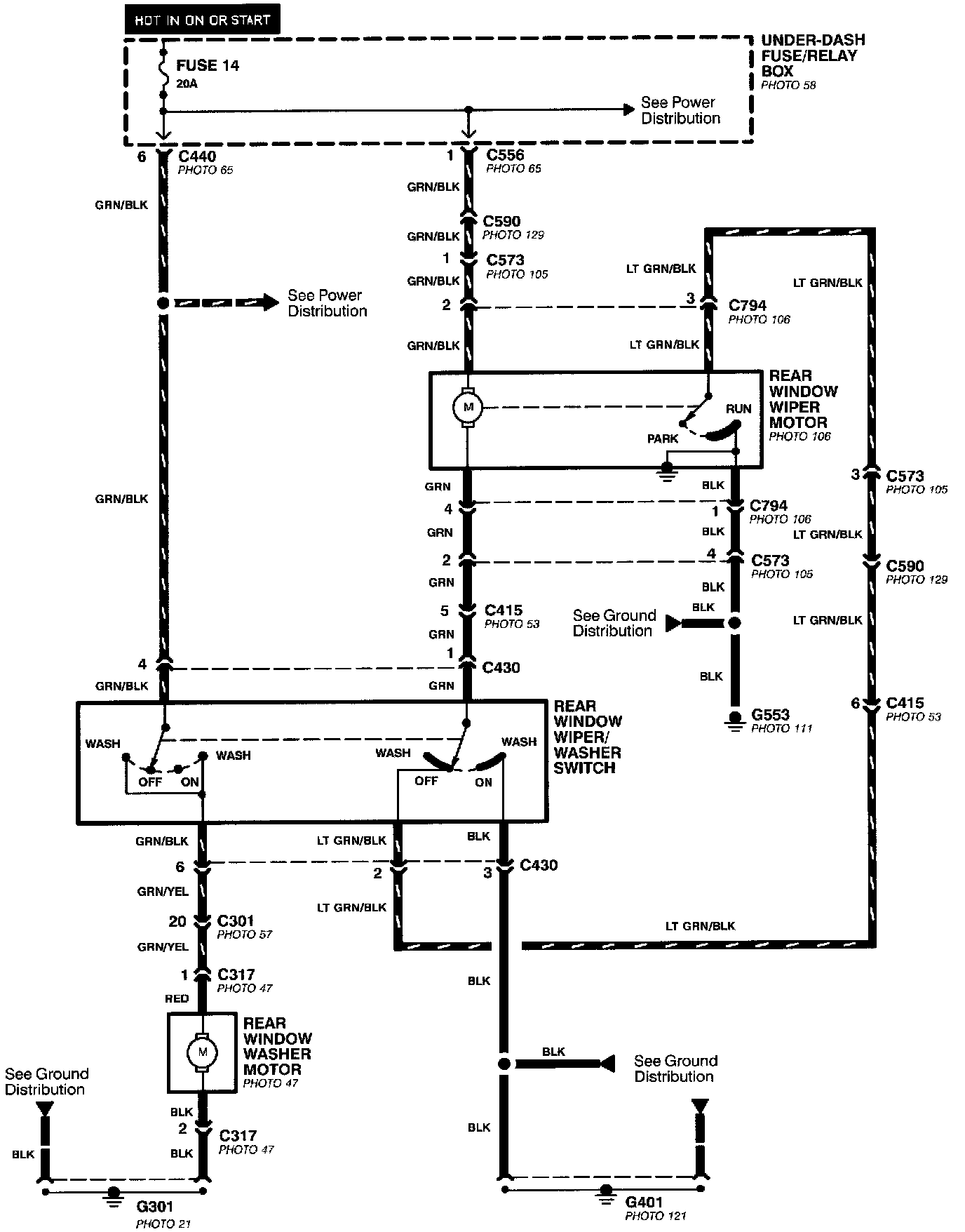

Rear Wiper/Washer:
