Passenger Compartment Connectors

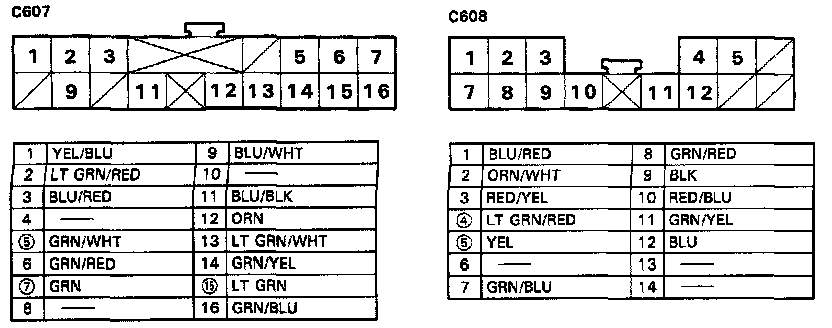

System Connectors / Dash and Floor:

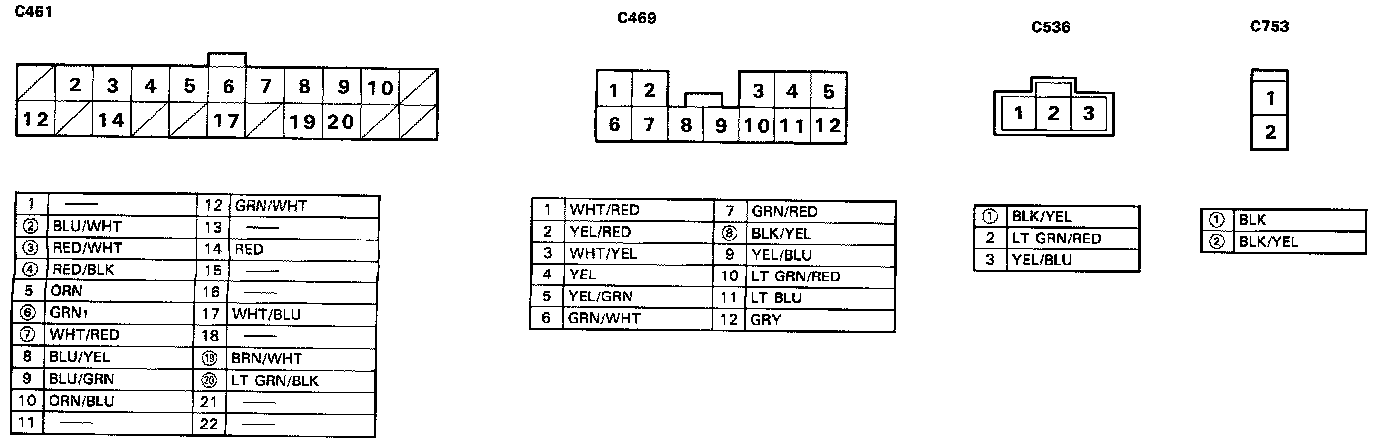

System Connectors / Dash and Floor:

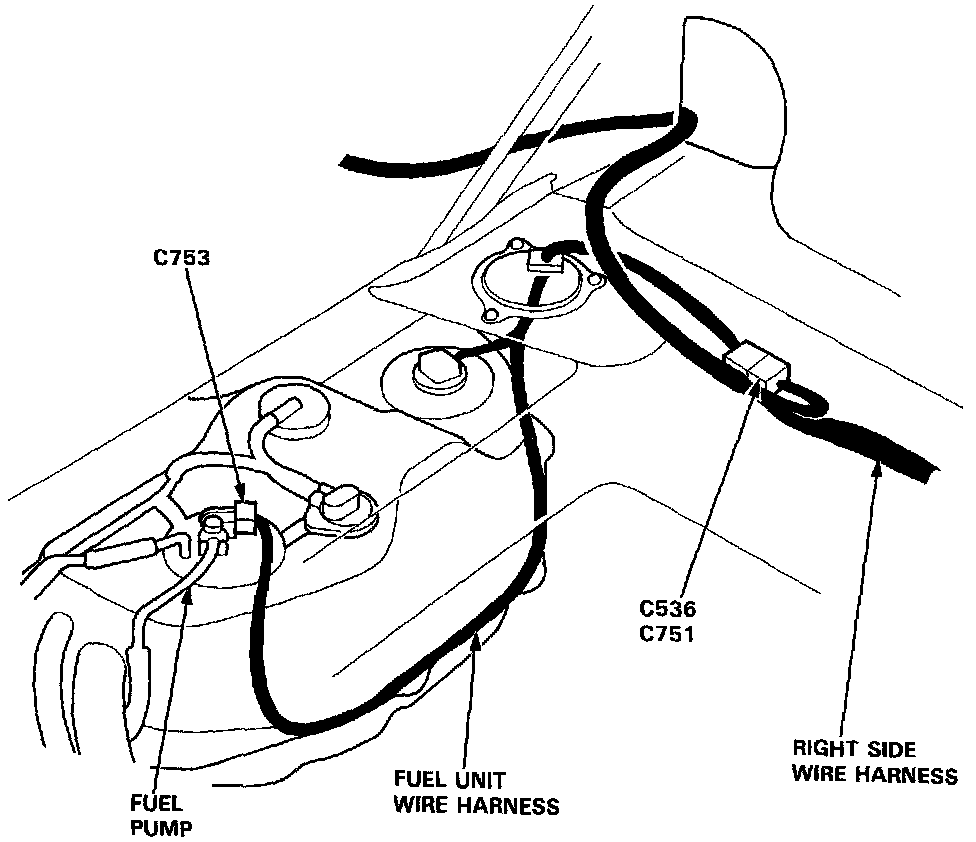

System Connectors / Dash and Floor:

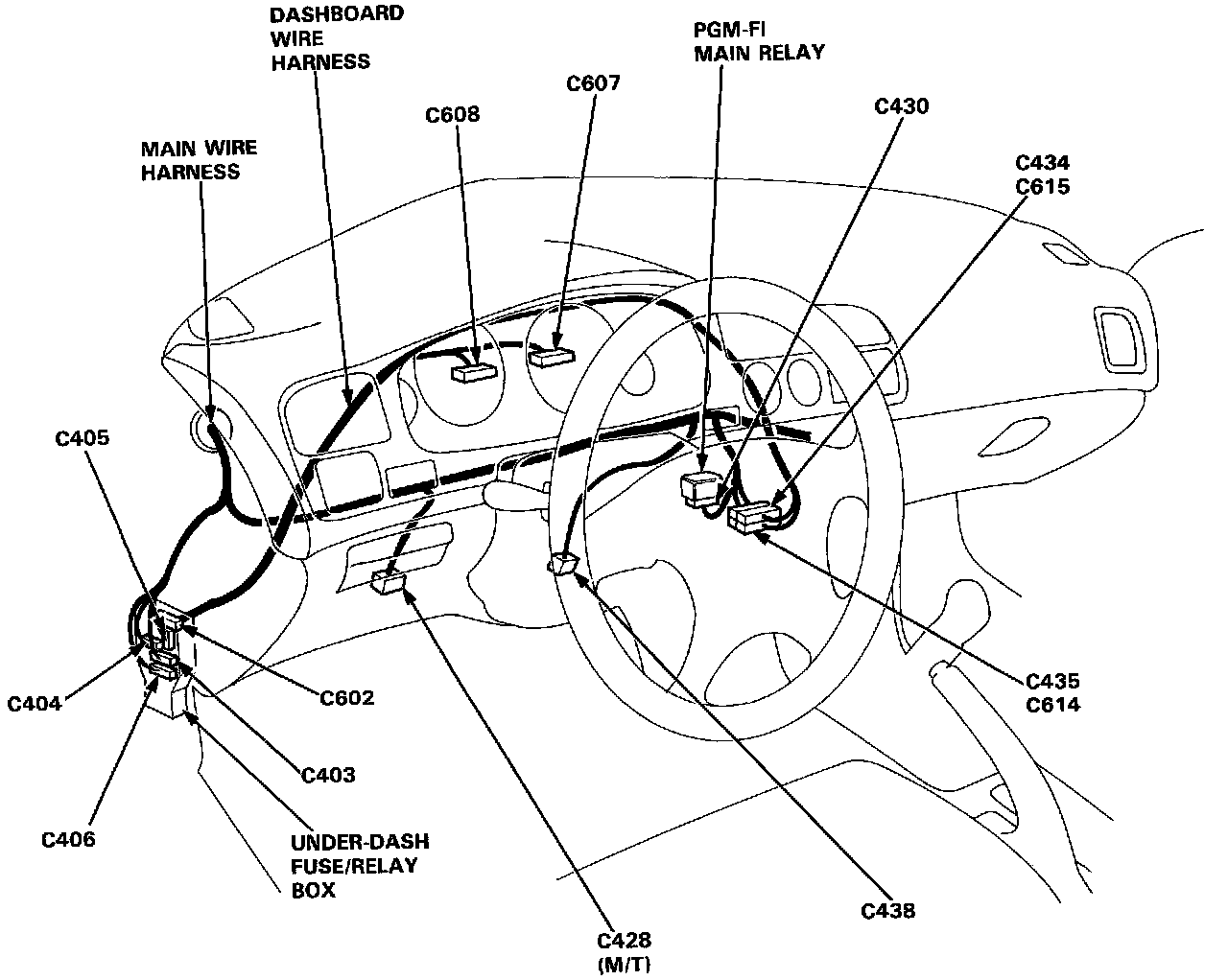

System Connectors / Dash and Floor:

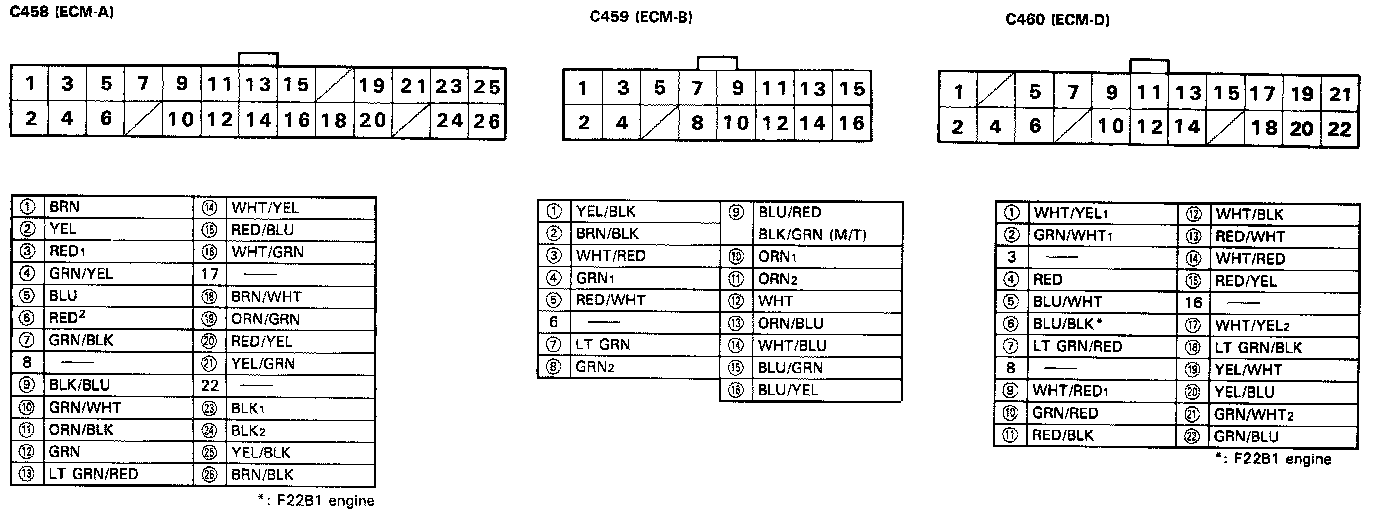

System Connectors / Dash and Floor:

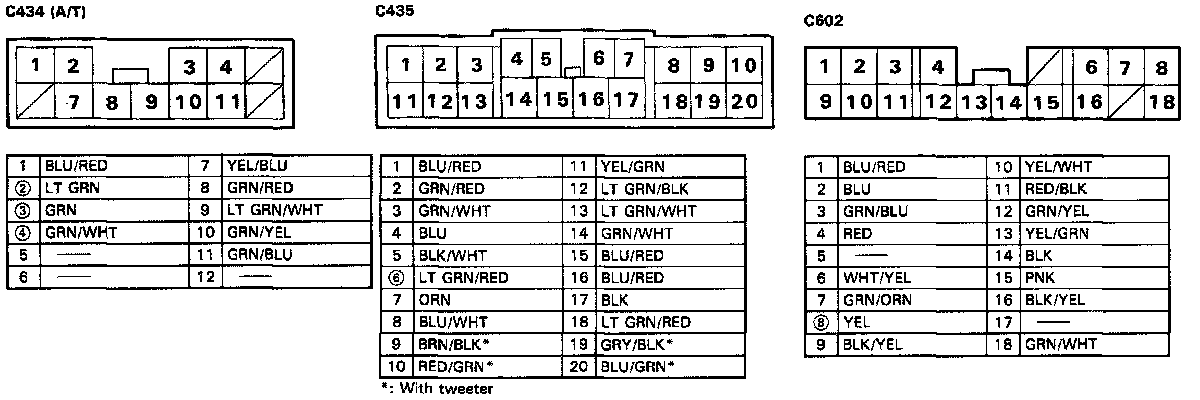

System Connectors / Dash and Floor:

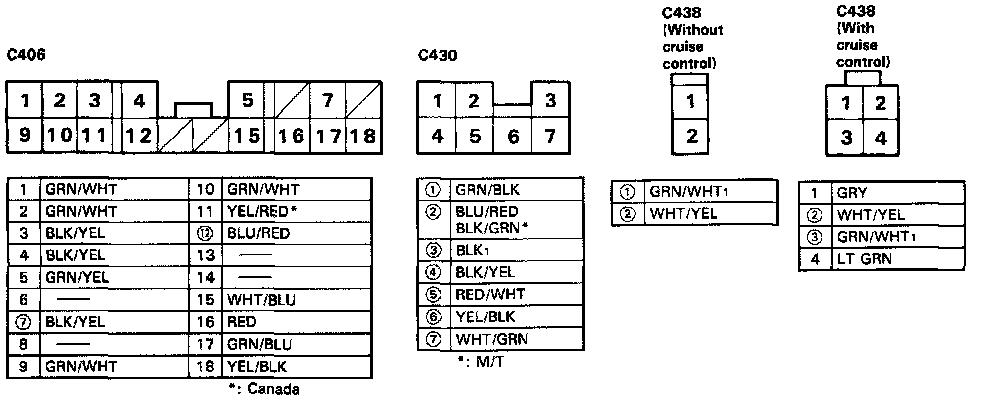

System Connectors / Dash and Floor:

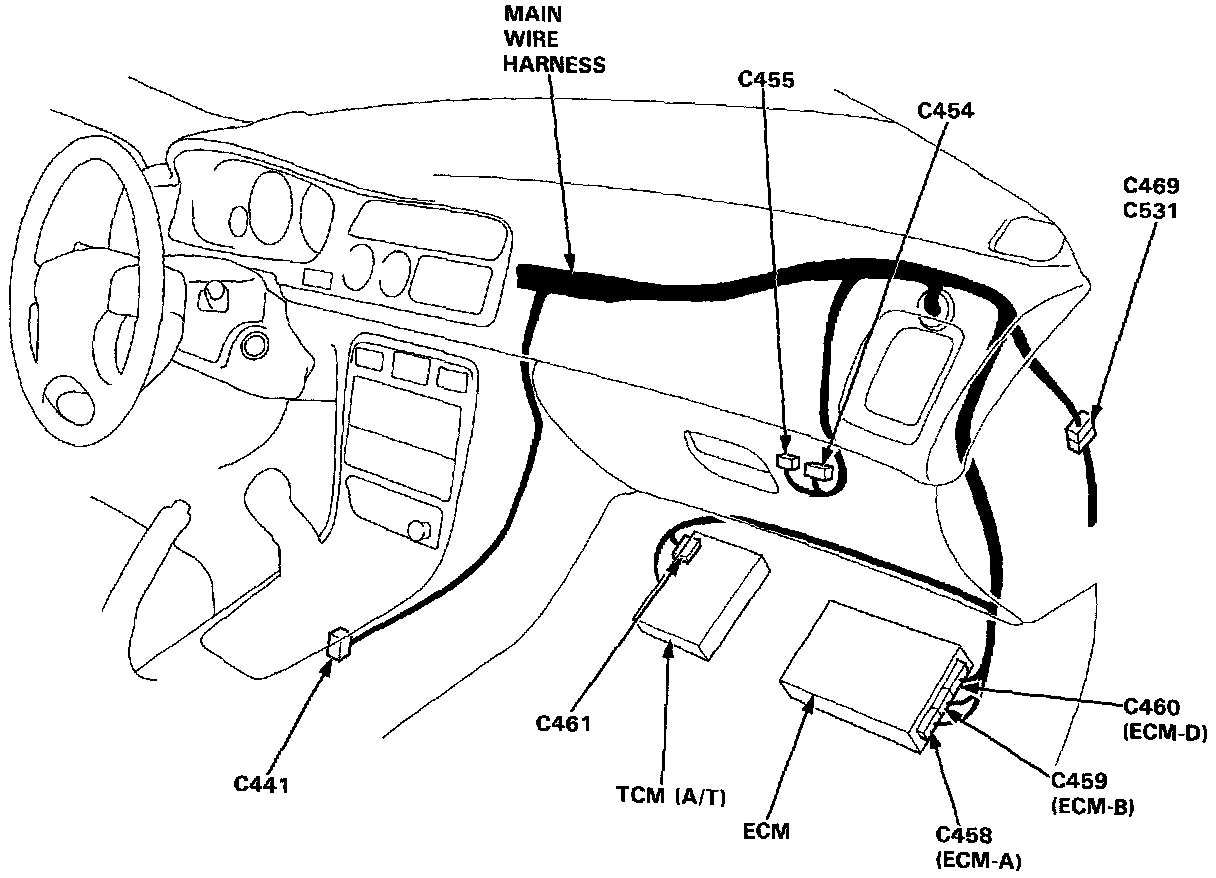

System Connectors / Dash and Floor:



System Connectors / Dash and Floor:



System Connectors / Dash and Floor:
