Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1995
>>
Accord Sedan V6-2.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Left Side Cover
Left Side Cover

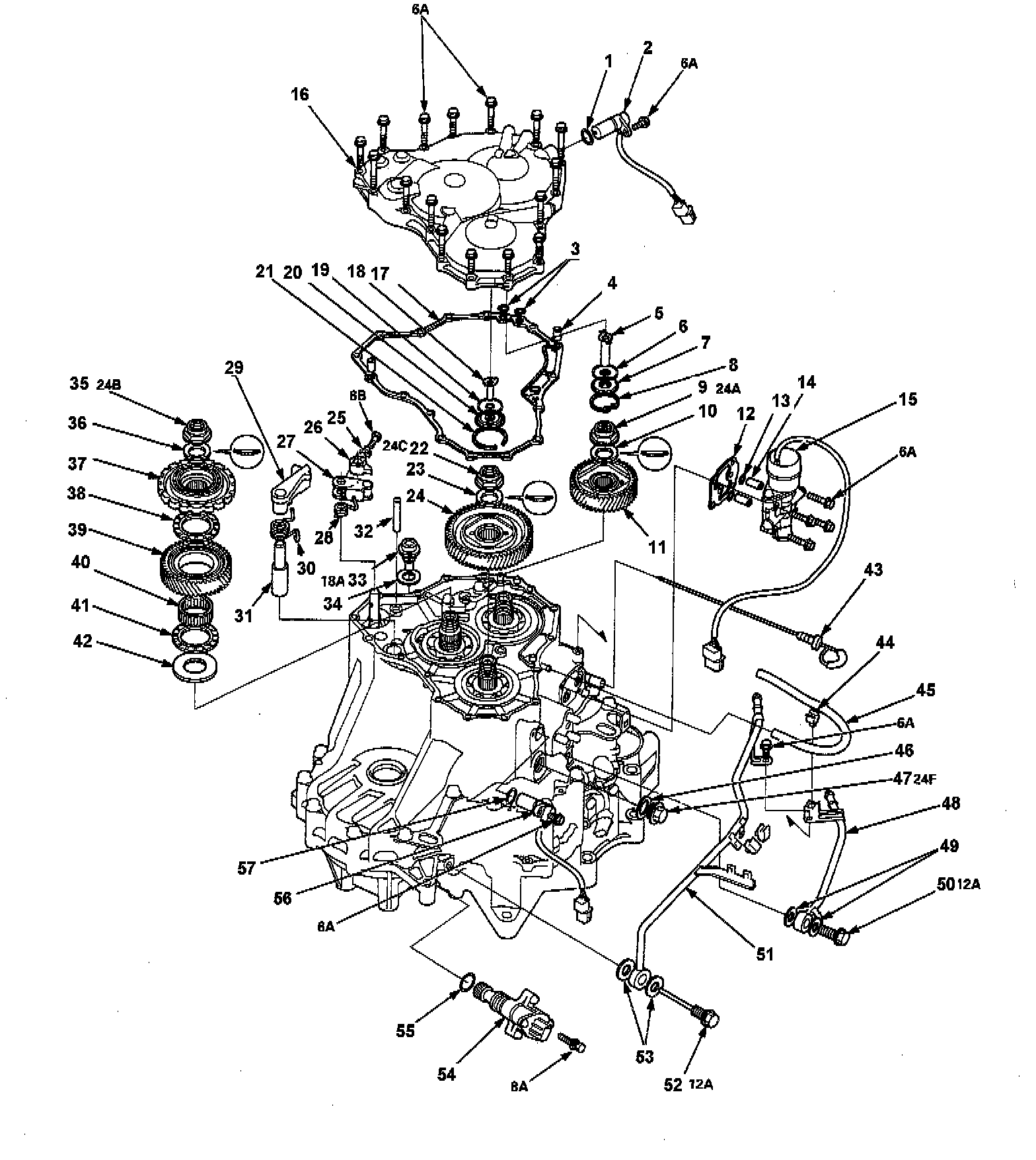

Left Side Cover:

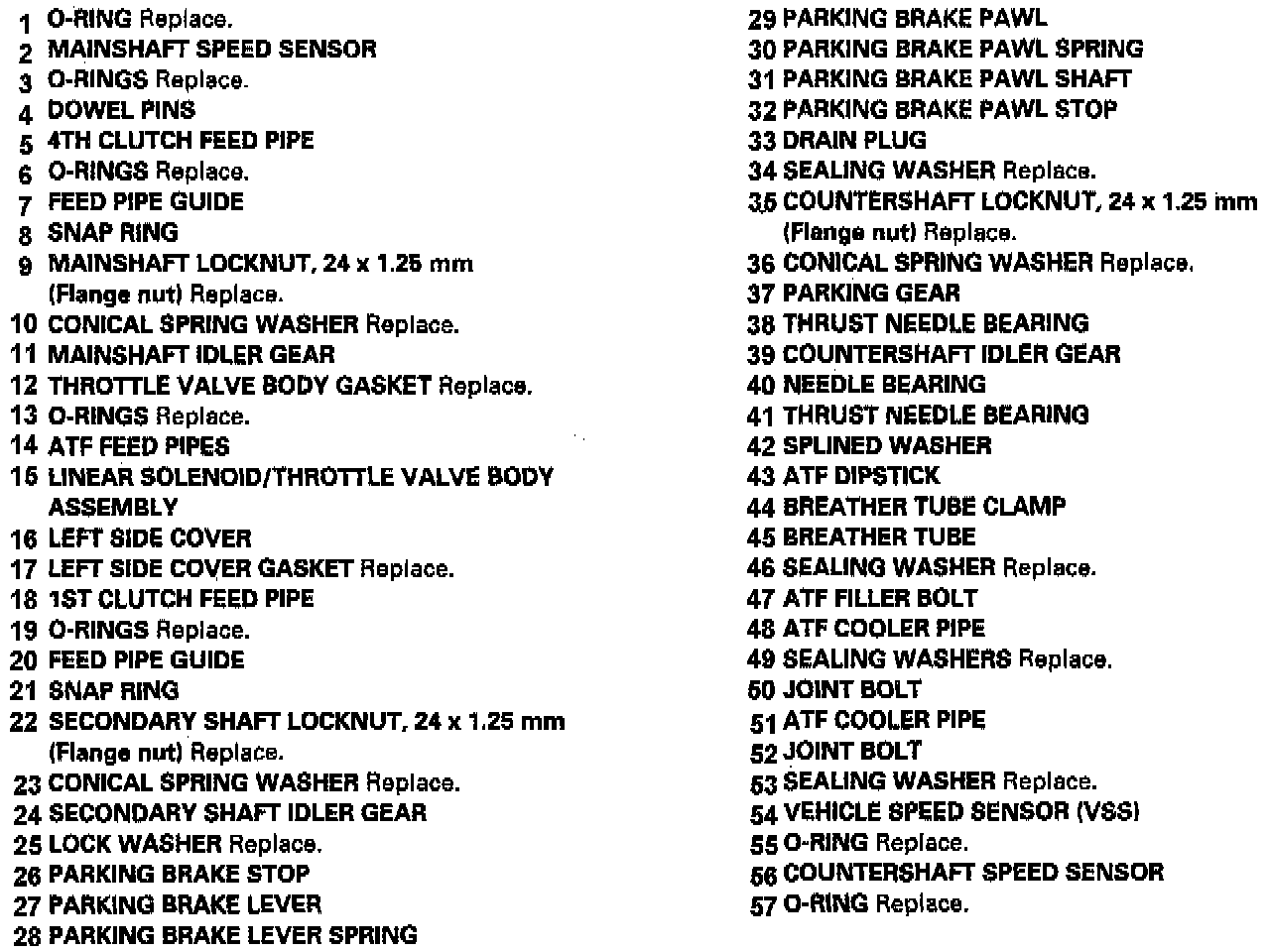

Left Side Cover Components:
