Blower Motor Relay: Testing and Inspection

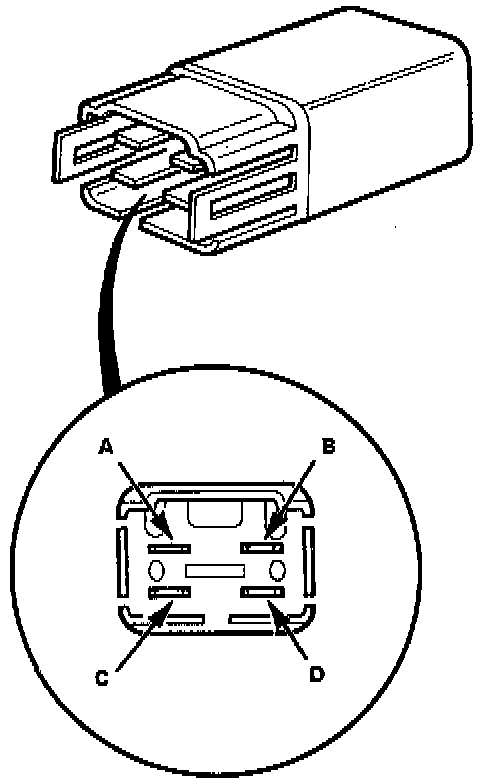

There should be continuity between the A and C terminals when power and ground are connected to the B and D terminals, and there should be no continuity when power is disconnected.
