Under-Hood Fuse/Relay Box

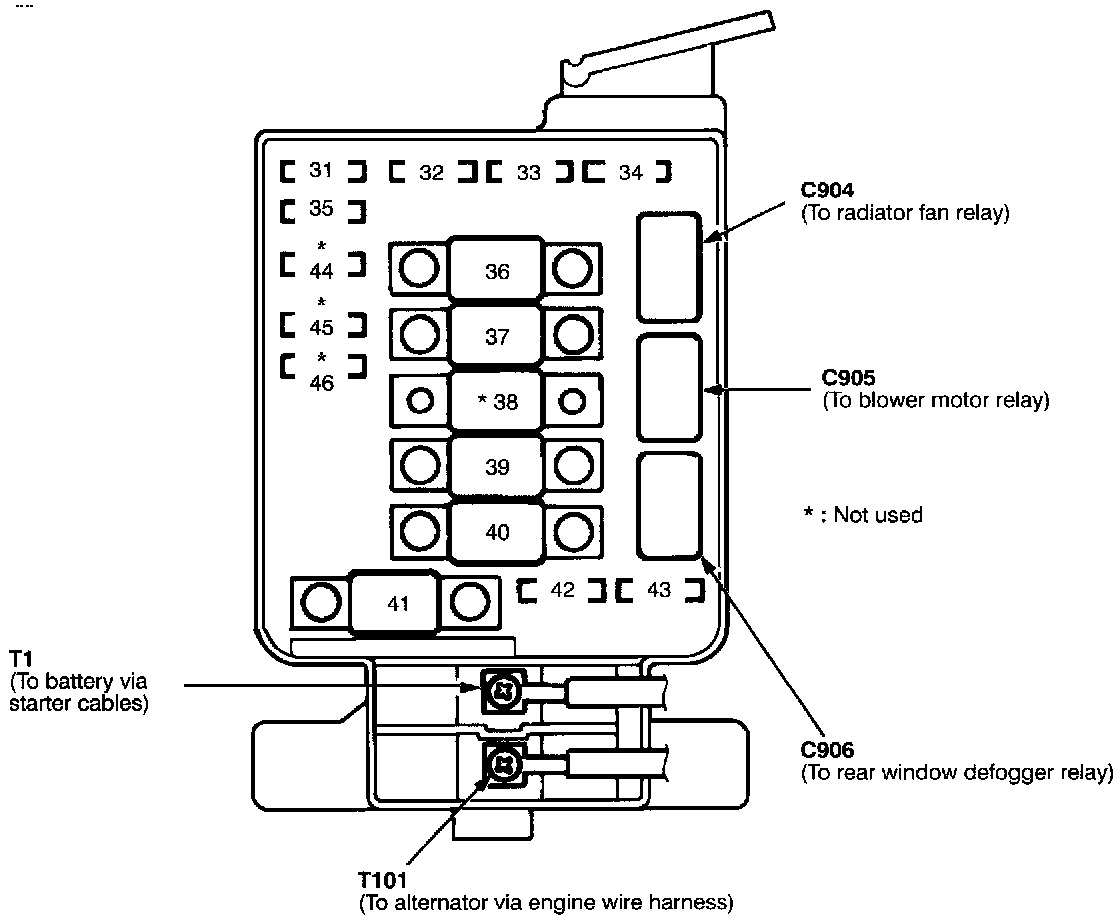

Fuse/Relay Information-Under-hood Fuse/Relay Box (Part 1 Of 2):




Fuse/Relay Information-Under-hood Fuse/Relay Box (Part 1 Of 2):




Fuse/Relay Information-Under-hood Fuse/Relay Box (Part 2 Of 2):
