Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side of Dash

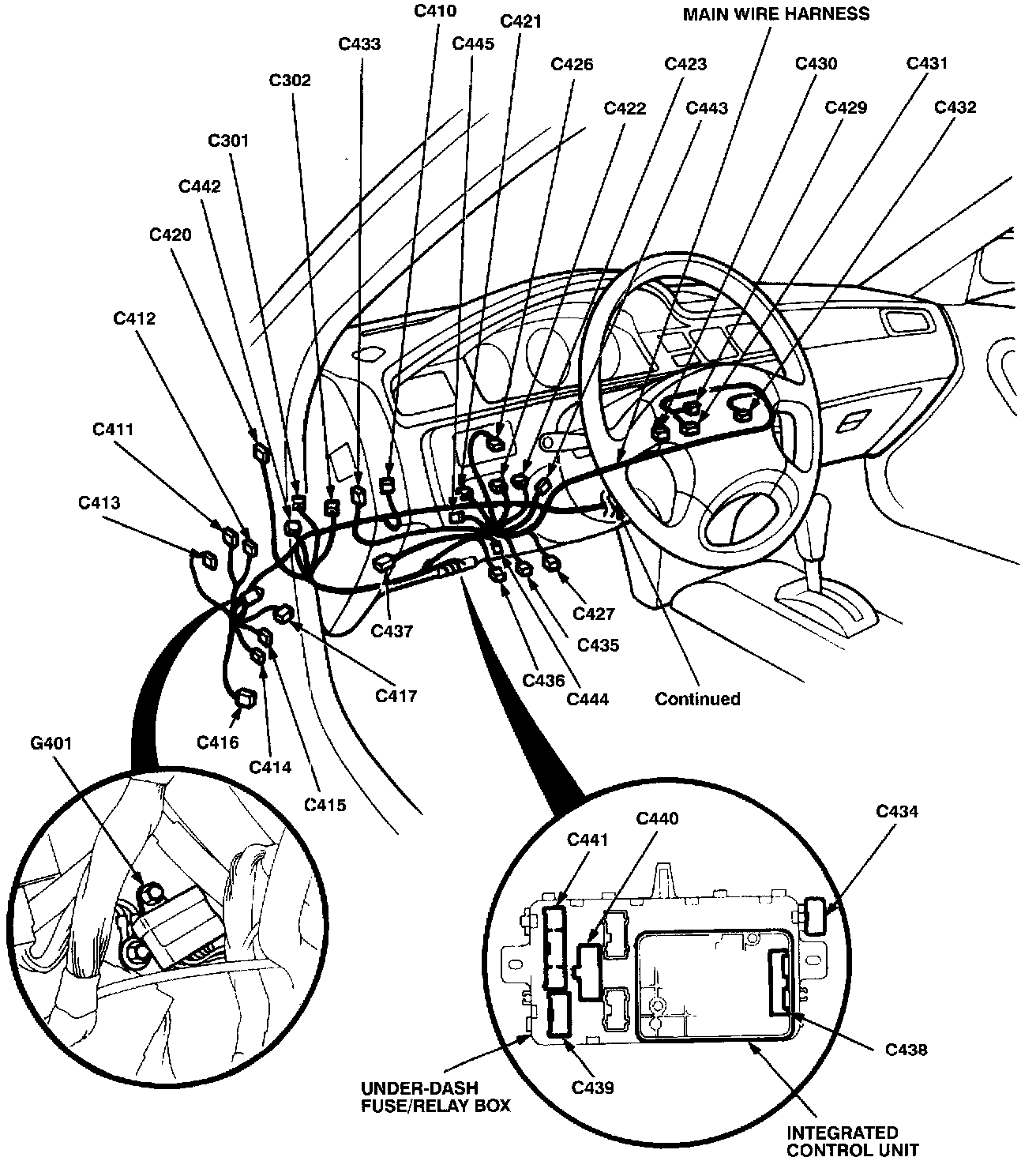

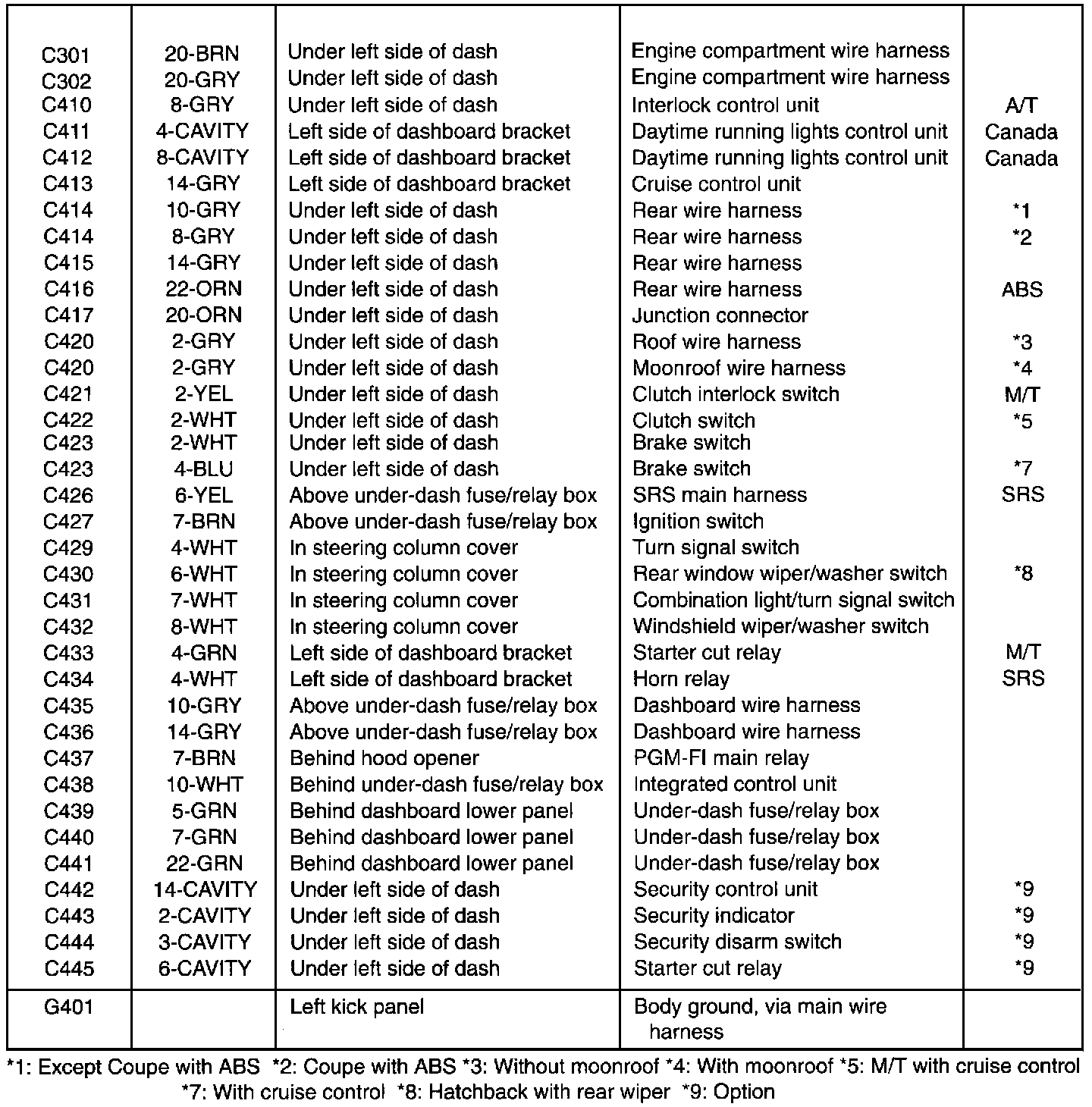

Main Wire Harness (Left Side Of Dash Branch):
Main Wire Harness (Left Side Of Dash Branch):
