Ignition Coil: Service and Repair

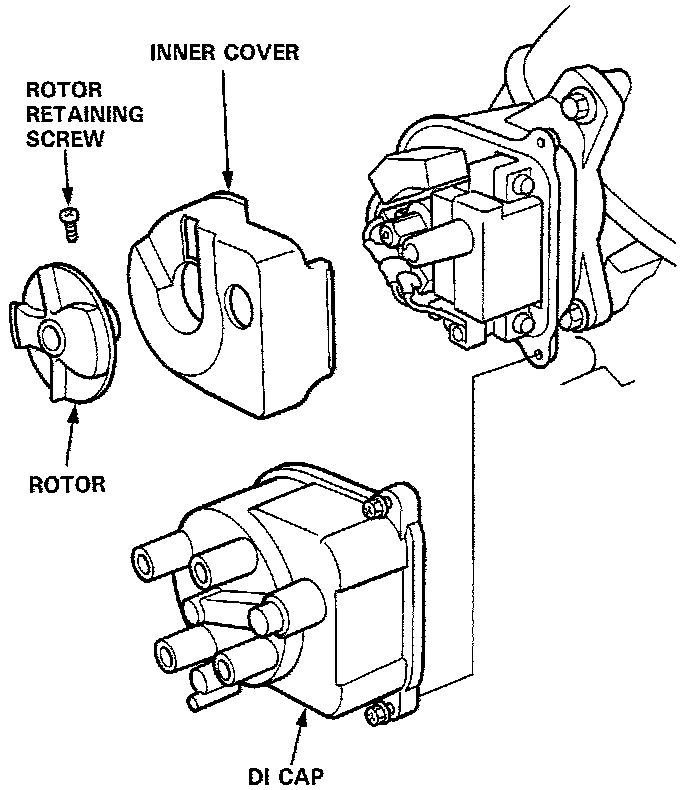

Ignition Cap:
1.
With the
Ignition Switch "OFF", remove the
Distributor Ignition
(DI) Cap, Distributor
Ignition Rotor and the Inner Cover.
2.
Disconnect the BLK/YEL and WHT/BLU Wires from the terminals.

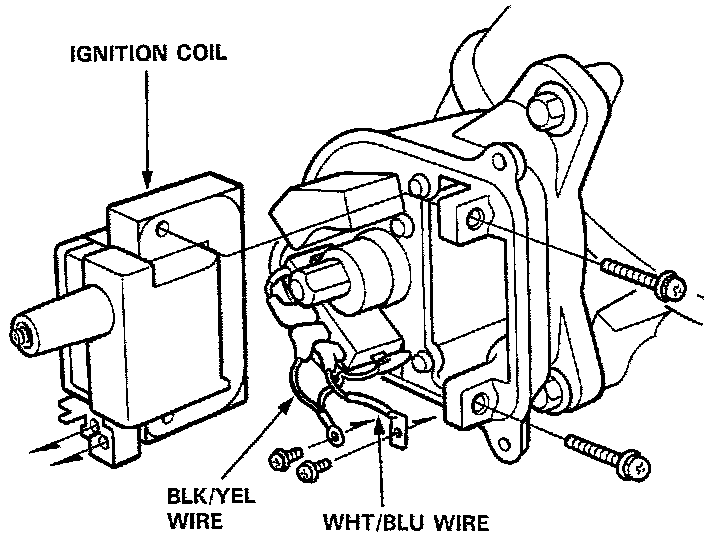

Ignition Coil:
3.
Remove the two screws, and slide the
Ignition Coil out of the
Distributor Ignition Housing.
