Connector Locations

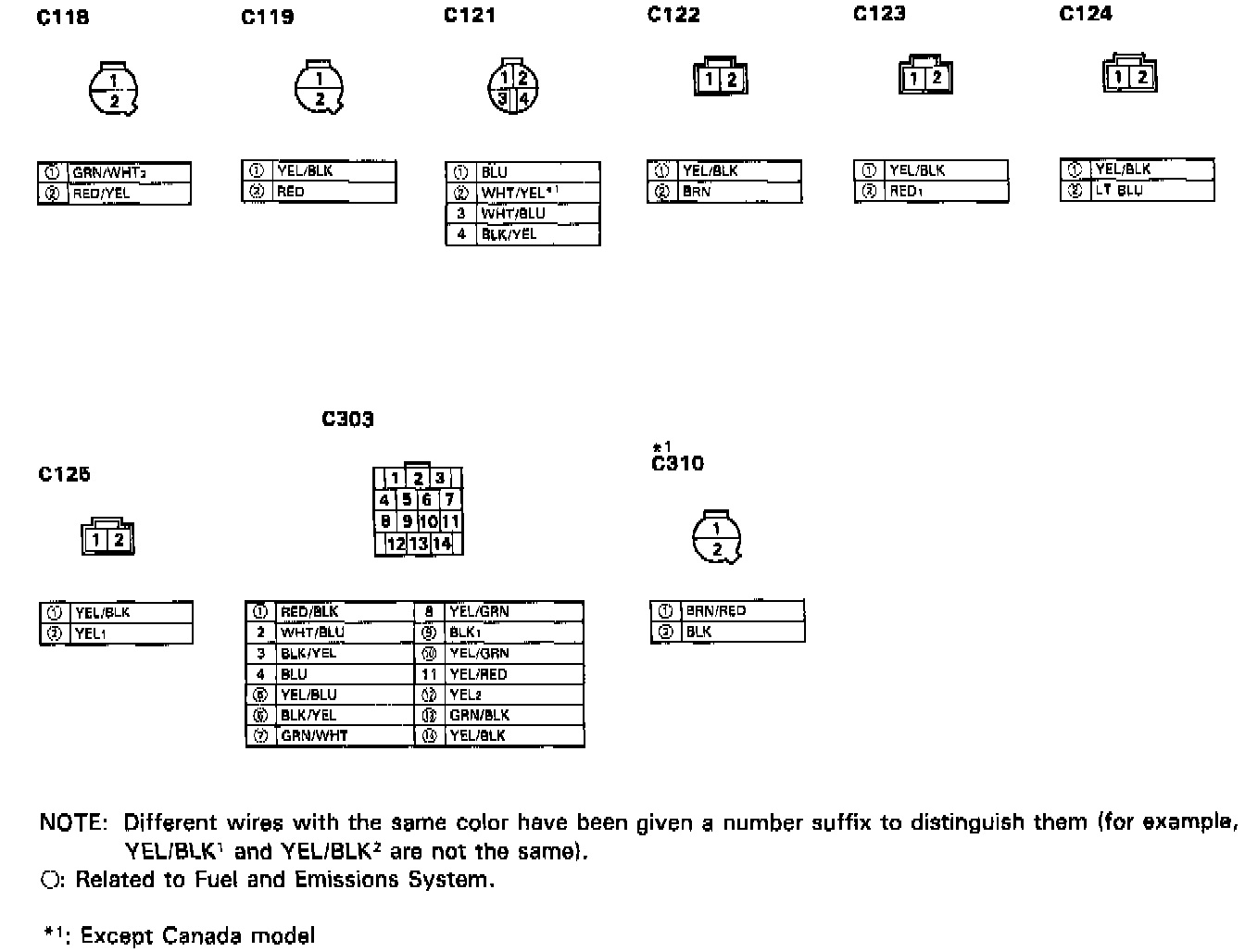

System Connector (Engine Compartment):

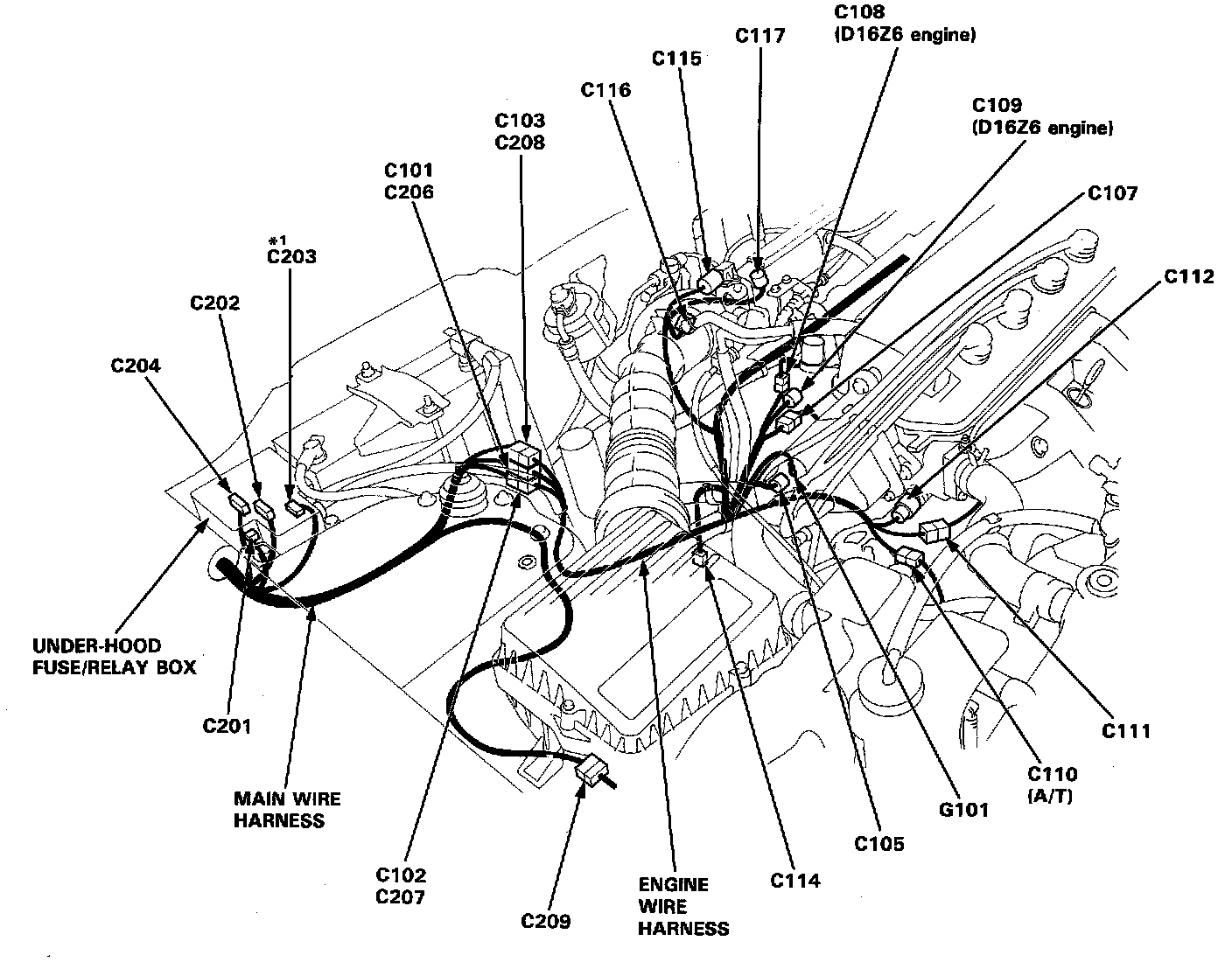

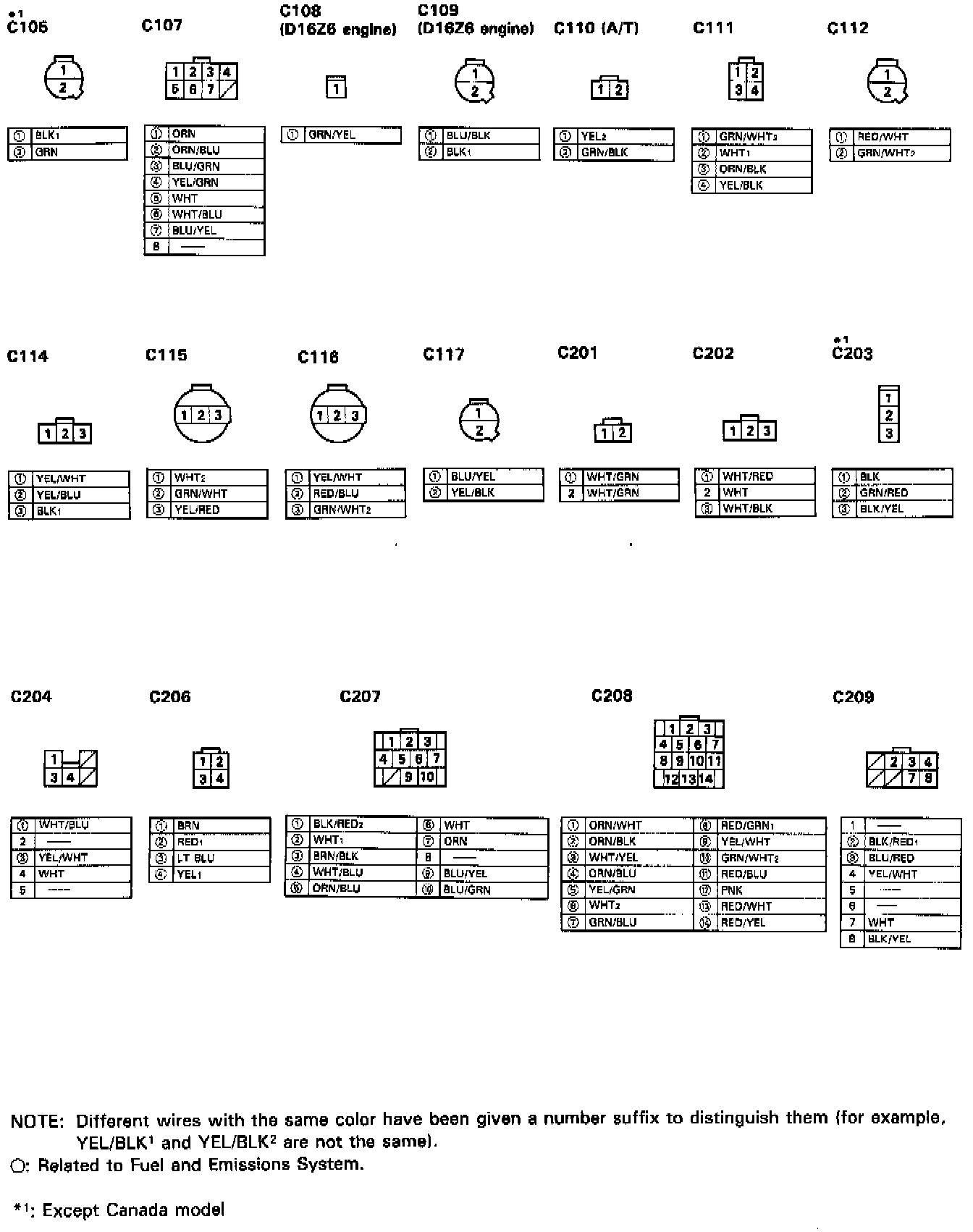

System Connectors (Engine Compartment):

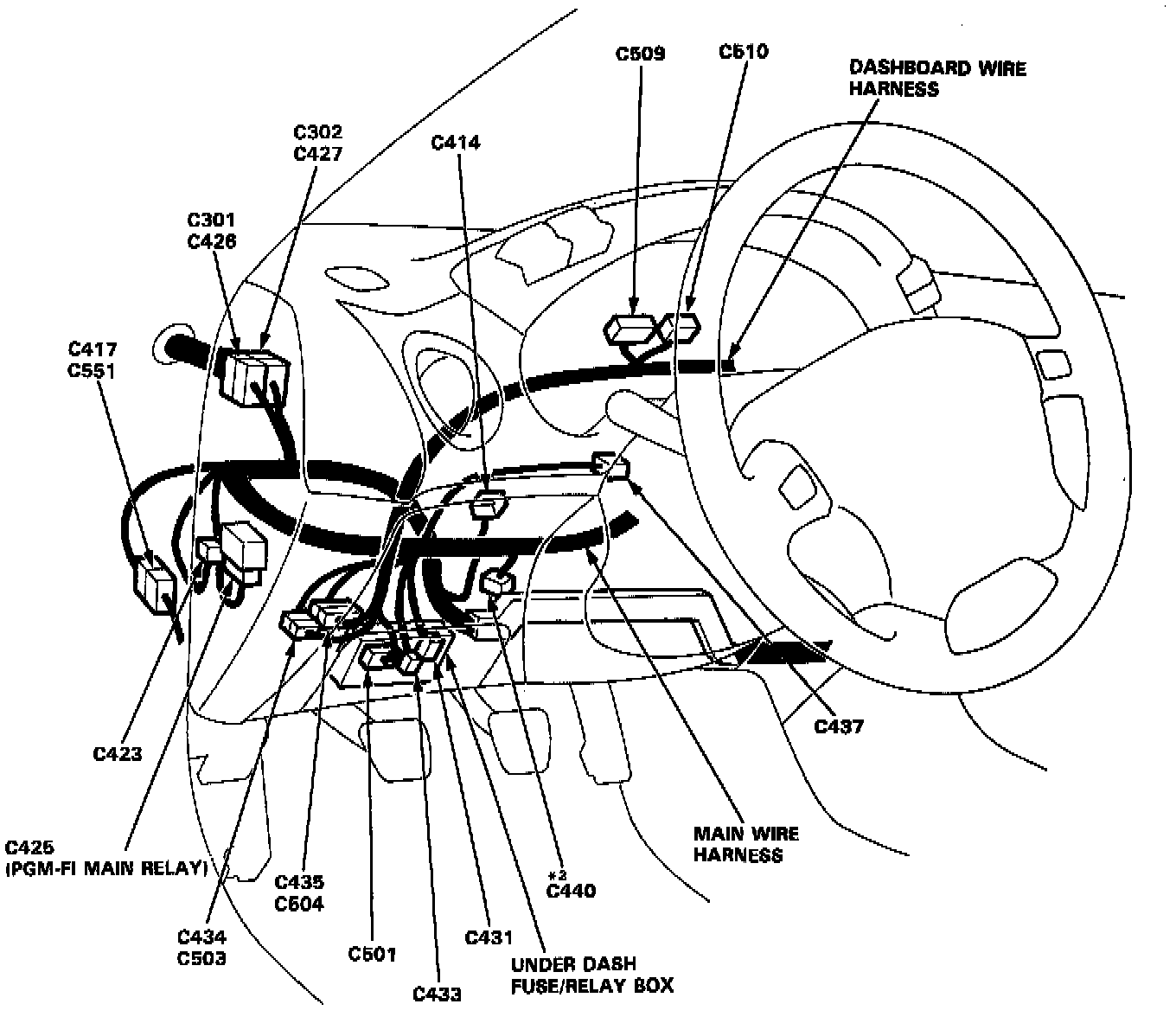

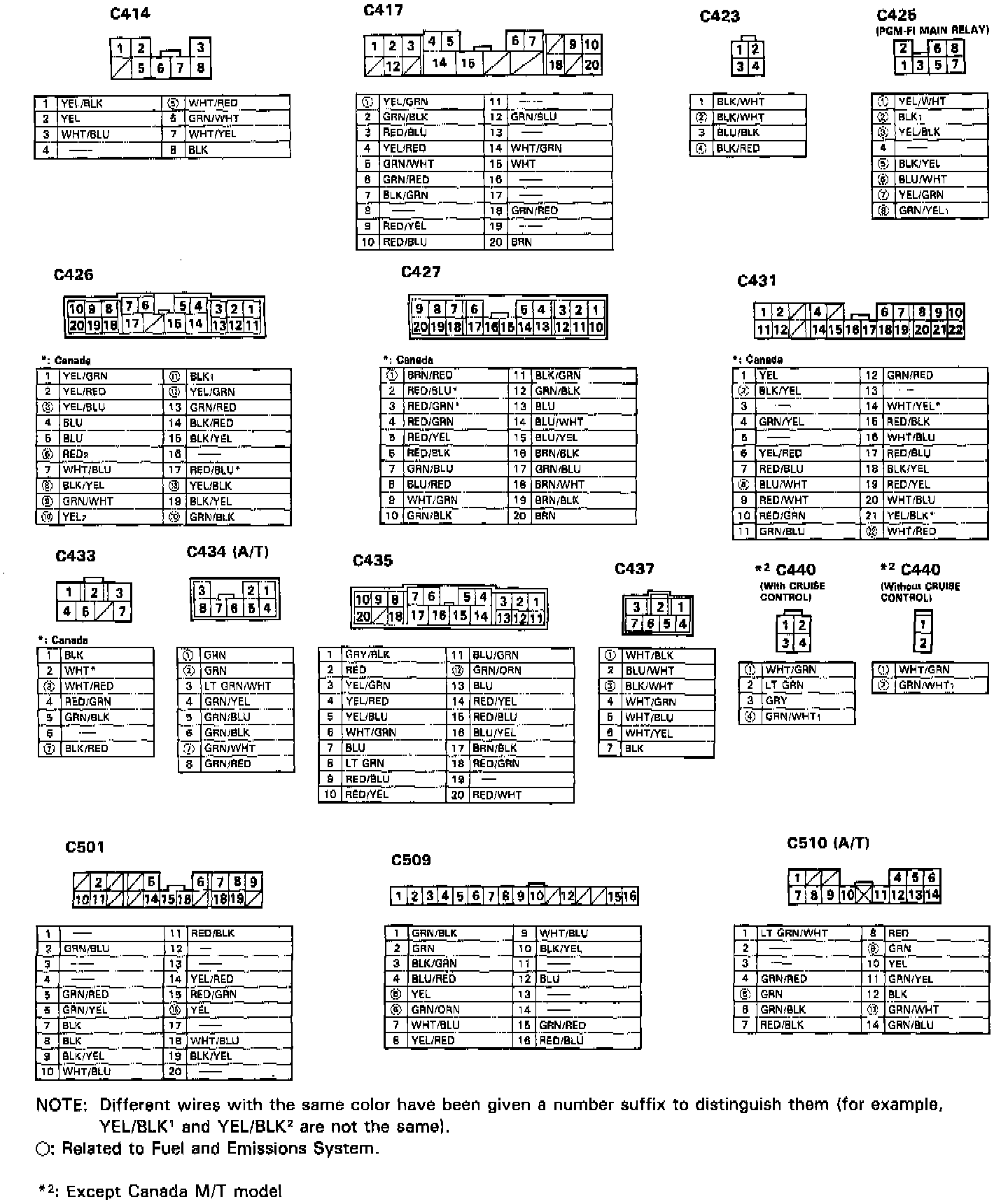

System Connectors (Dash And Floor):

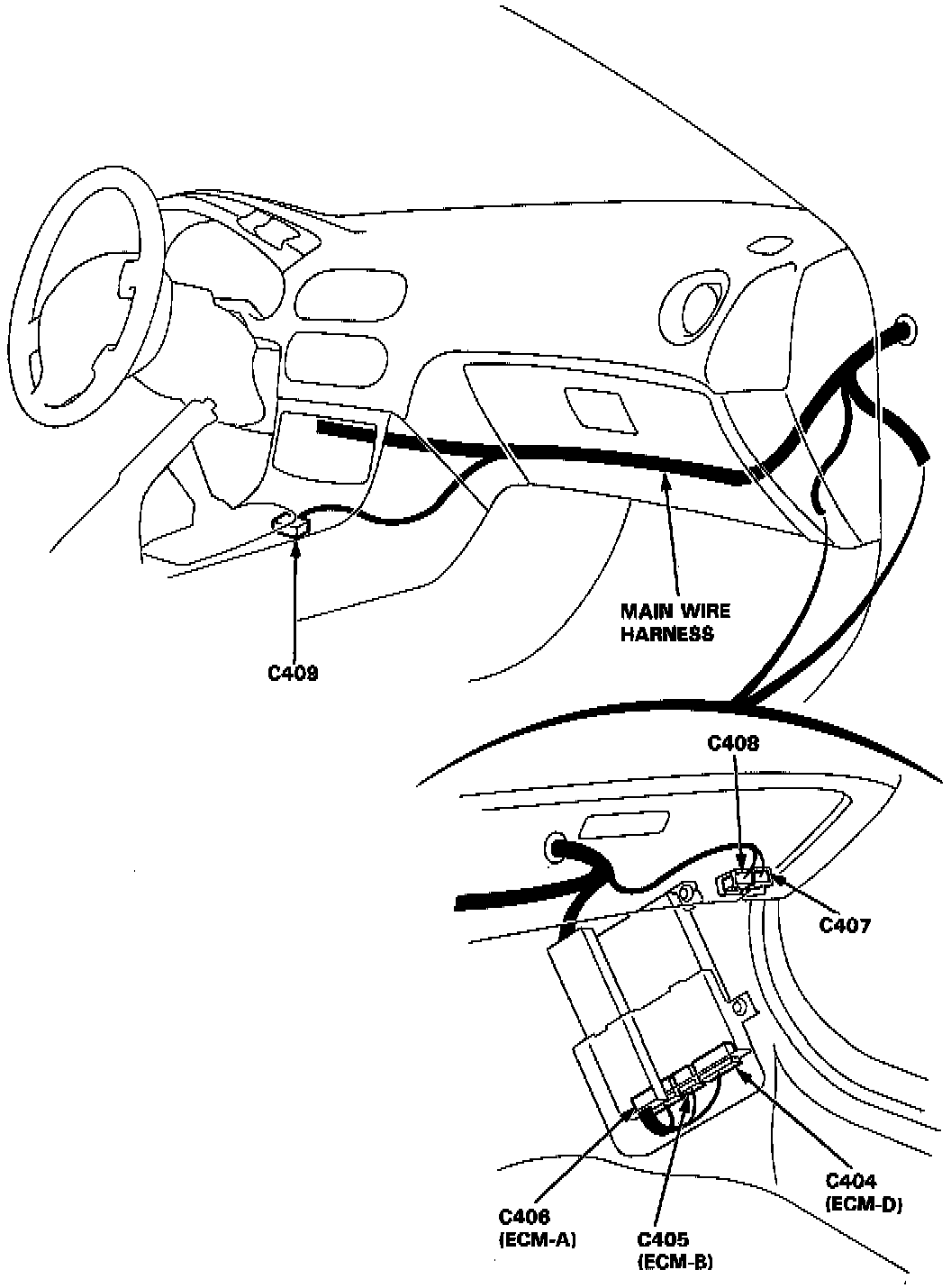

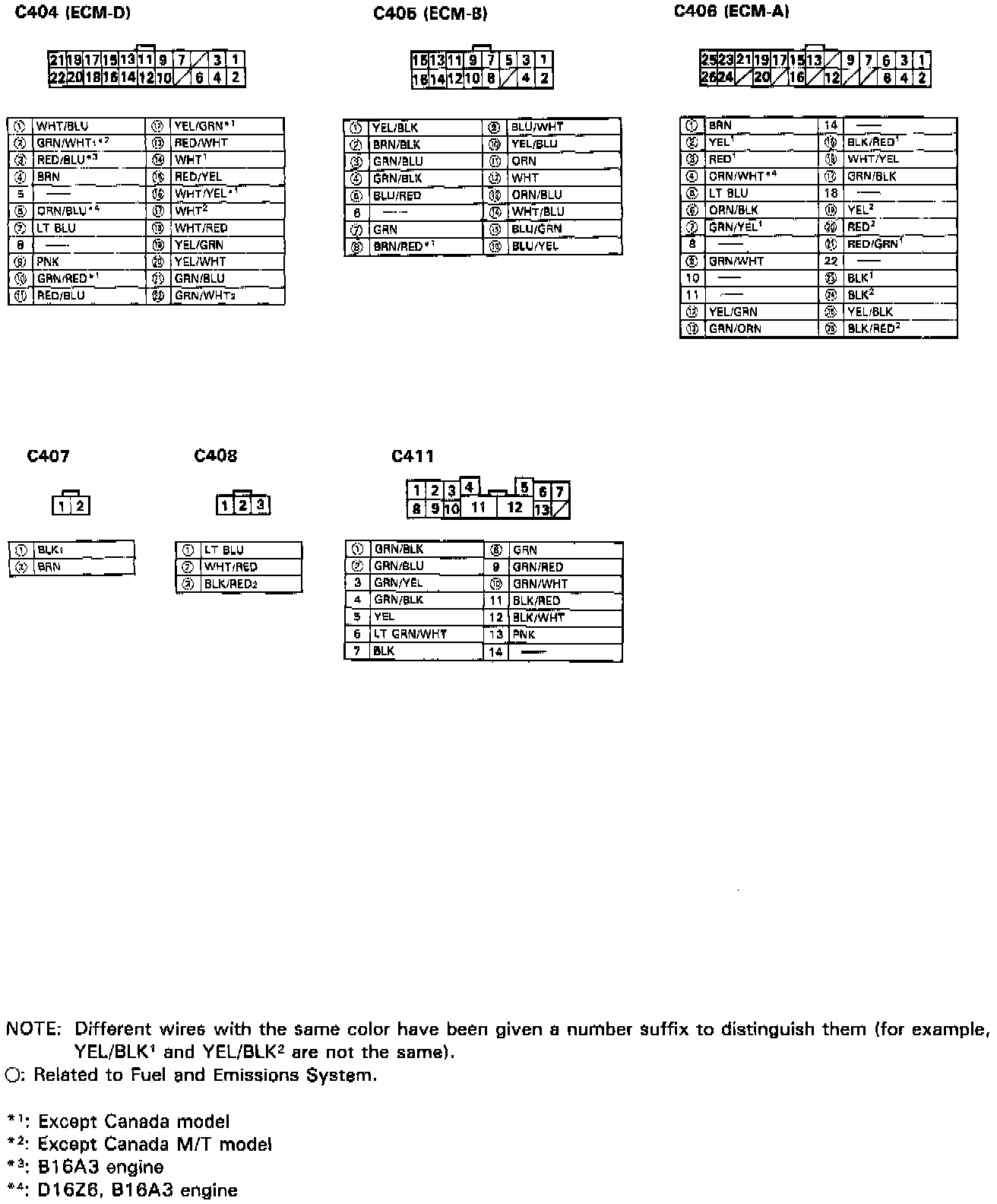

System Connectors (Dash And Floor):
