System Diagram

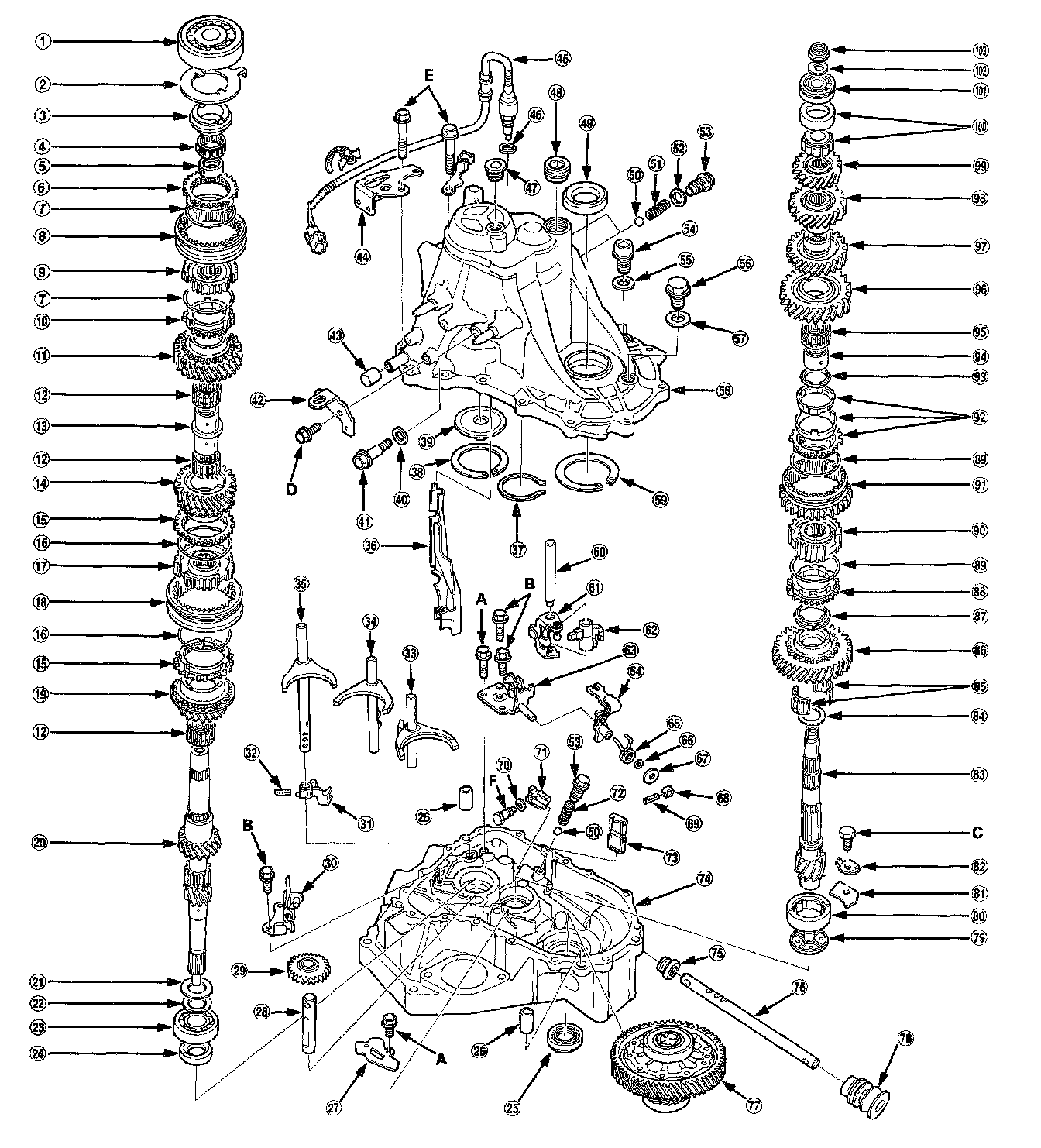

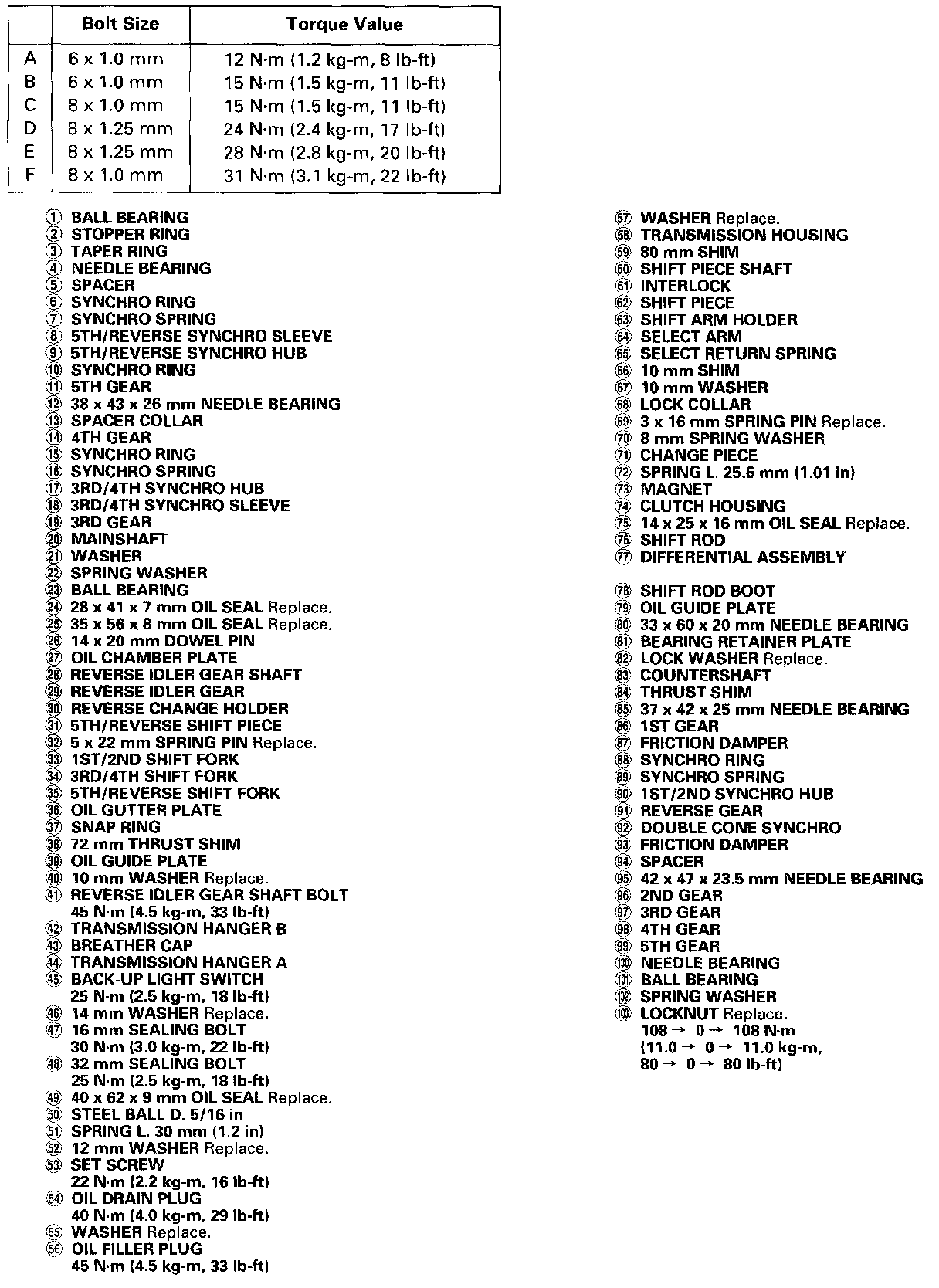

Refer to the drawing below for transmission disassembly/reassembly. Clean all the parts thoroughly in solvent and dry with compressed air.

Part 1:

Part 2:

Lubricate all the parts with oil before reassembly.

NOTE:
- This transmission uses no gaskets between the major housings; use liquid gasket (P/N 08718 - 0001) (see page 13-85). ZZZZ
- Always clean the magnet (73) whenever the transmission housing is disassembled.
- Inspect all the bearings for wear and operation.
