Keyless Entry - Broken Remote Transmitter Case
Bulletin No.96-044
Issue Date
SEP. 23, 1996
Model
1995-96
ODYSSEY
EX
Applicable To
ALL
File Under
ELECTRICAL
Broken Remote Transmitter Case
PROBLEM

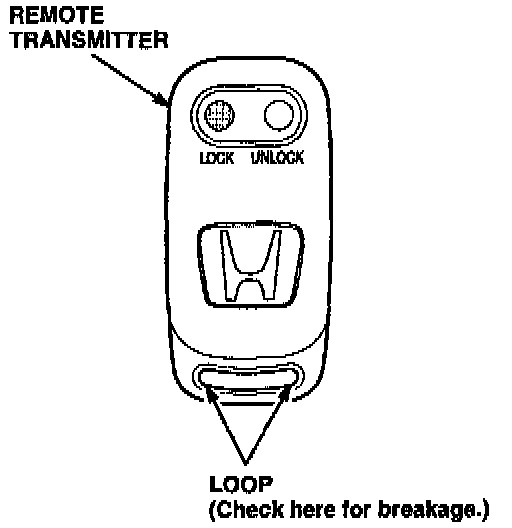

The remote transmitter case cannot be secured on a ring because the "loop" is broken.
CORRECTIVE ACTION
Replace the remote transmitters with those listed under PARTS INFORMATION, and perform the programming procedure.
NOTE:
Even if the customer has only one broken remote transmitter case, replace both transmitters.
^ This system will accommodate only two remote transmitters.
^ Program both of the remote transmitters before installing either on a key ring.
Programming the Replacement Remote
Transmitter
1. Open the driver's door.
2. Push up the driver's master door lock switch to the UNLOCKED position. Hold it there for the rest of this procedure.
NOTE:
Step 3 must be completed within 10 seconds of performing step 2.
3. Quickly insert the key in the ignition switch and remove it five times; then insert the key a sixth time, and leave it in the ignition switch. All doors except the driver's door will lock and unlock to indicate that the control unit is in the program mode.
4. Press either button on the replacement remote transmitter. All doors except the driver's door will lock and unlock to indicate the control unit has accepted the new remote transmitter.
5. Program the second remote transmitter by pressing either button on it. The doors will lock and unlock as described in step 4.
6. Release the driver's master door lock switch.
7. To exit the program mode, close the driver's door or remove the key from the ignition switch.
PARTS INFORMATION
Remote Transmitter (2 required):
P/N 72147-SV5-A02, H/C 5030176
In warranty:
The normal warranty applies.
Operation number: 748103
Flat rate time: 0.2 hour
Failed part: P/N 72147-SV5-A01
H/C 4461331
Defect code: 018
Contention code: A02
Template ID: 96-044A
Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
